RM0008
16.2.2

TIM10/TIM11 and TIM13/TIM14 main features

The features of general-purpose timers TIM10/TIM11 and TIM13/TIM14 include:
•
16-bit auto-reload upcounter
•
16-bit programmable prescaler used to divide the counter clock frequency by any factor
between 1 and 65536 (can be changed "on the fly")
•
independent channel for:
–
–
–
–
•
Interrupt generation on the following events:
–
–
–
Input capture
Output compare
PWM generation (edge-aligned mode)
One-pulse mode output
Update: counter overflow, counter initialization (by software)
Input capture
Output compare

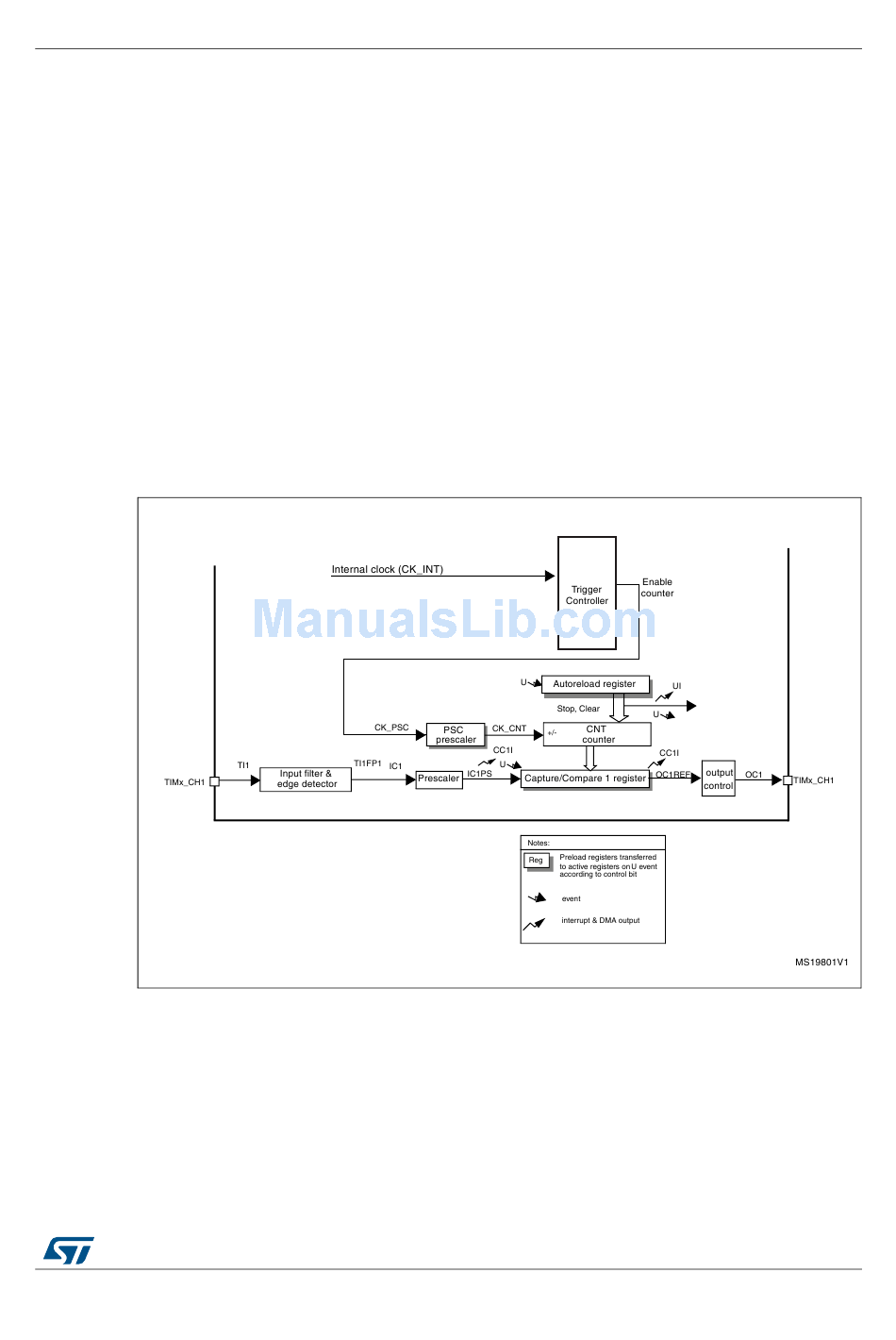

Figure 147. General-purpose timer block diagram (TIM10/11/13/14)

DocID13902 Rev 15
General-purpose timers (TIM9 to TIM14)
420/1128
460
