ST802RT1 TX mode Ethernet PHY demonstration kit
1
Introduction
The STEVAL-PCC010V1 demonstration kit was designed to evaluate the ST802RT1 TX
mode. This device is a Fast Ethernet physical layer (PHY) interface which supports 100
Base-TX and 10 Base-T applications. The PHY provides a Media Independent Interface
(MII) and Reduced Media Independent Interface (RMII) for easy attachment to a 10/100
Media Access Controllers (MAC). The demonstration board features jumpers, test points
and connectors to test the ST802RT1 TX mode Ethernet PHY.
To quickly evaluate the microcontroller and physical layer, the device can be connected to
the STM32F107 controller demonstration board through an additional header connector.
The controller board is preprogrammed with a web server demonstration application. The
STM32F107 controller demonstration board is part of the STEVAL-PCC010V1 package
delivery.
The board can be equipped with a dedicated digital connector compatible to the Spirent
Communications SmartBits 200/2000 (SMB-200/ SMB-2000) analysis system.

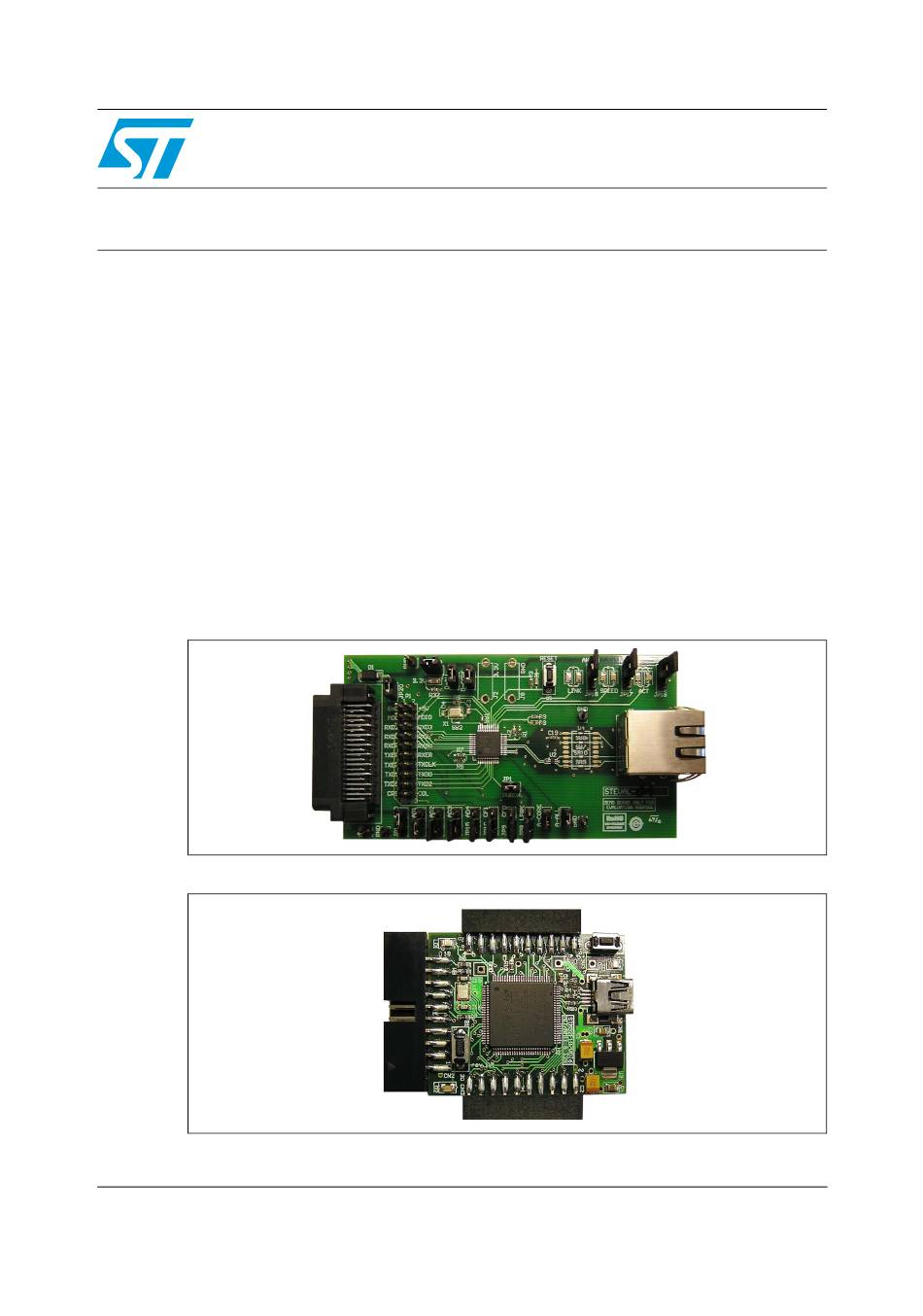

Figure 1.
Figure 2.
May 2010
This datasheet has been downloaded from
Getting started with STEVAL-PCC010V1,
ST802RT1 TX mode Ethernet PHY demonstration board - top view
STM32F107 controller demonstration board - top view
Doc ID 16379 Rev 2
User manual
http://www.digchip.com
at this
UM0819
®
1/37
www.st.com
page
Advertisement
Table of Contents
Related Manuals for ST ST802RT1
Summary of Contents for ST ST802RT1
-
Page 1: Introduction
ST802RT1 TX mode Ethernet PHY demonstration kit Introduction The STEVAL-PCC010V1 demonstration kit was designed to evaluate the ST802RT1 TX mode. This device is a Fast Ethernet physical layer (PHY) interface which supports 100 Base-TX and 10 Base-T applications. The PHY provides a Media Independent Interface (MII) and Reduced Media Independent Interface (RMII) for easy attachment to a 10/100 Media Access Controllers (MAC). -
Page 2: Table Of Contents
Boards key features ......... 6 ST802RT1 TX mode Ethernet PHY demonstration board ... . . 6 STM32F107 controller demonstration board . - Page 3 1.414:1 ......25 Appendix A ST802RT1 TX mode Ethernet PHY demonstration board - BOM .
- Page 4 Bill of material ST802RT1 TX mode ........
- Page 5 Figure 3. ST802RT1 TX mode Ethernet PHY demonstration kit ......7 Figure 4.
-
Page 6: Boards Key Features
UM0819 Boards key features Boards key features ST802RT1 TX mode Ethernet PHY demonstration board ● ST802RT1 TX mode Fast Ethernet physical layer transceiver ● On-board 3.3 V LDO regulator ● On-board 25 MHz crystal ● 12 jumpers for boot-strap configuration (MII address, auto-negotiation, loopback, power-down, MII/RMII configuration) ●... -
Page 7: General System Description
The STEVAL-PCC010V1 ST802RT1 TX mode Ethernet PHY demonstration kit consists of two boards. The ST802RT1 TX mode demonstration board was designed to evaluate the chip. It therefore allows to easily select the PHY boot options, to evaluate the PHY boot options, to evaluate the power consumption of the chip and to attach the device to the professional test equipment. -
Page 8: Getting Started
TCP/IP stack. The web server consists of three pages displaying general information about the STM32 and ST802RT1 TX mode, allowing to control LEDs on the STM32F107 controller board and finally showing the content of the ST802RT1 TX mode registers. - Page 9 Connect ST802RT1 TX mode Ethernet PHY board to STM32F107 controller board. Connect Ethernet cable to the ST802RT1 TX mode Ethernet PHY board on one side and to the PC on the other side. Flash the demonstration software into the Flash memory of the STM32F107 MCU.
-
Page 10: Figure 5. Network Connections Dialog Box
UM0819 Getting started Figure 5. Network connections dialog box Select IP protocol properties: select Internet Protocol (TCP/IP) and click Properties. Doc ID 16379 Rev 2 10/37... -
Page 11: Figure 6. Internet Protocol (Tcp/Ip) Properties Dialog Box
Getting started UM0819 Figure 6. Internet Protocol (TCP/IP) Properties dialog box Change you IP settings to: IP address: 192.168.0.4 Subnet mask: 255.255.255.0 Disable firewall(s) running on your PC. 11/37 Doc ID 16379 Rev 2... -
Page 12: Figure 7. First Page Of The Web Server Demonstration Software
UM0819 Getting started Run your web browser and open page http://192.168.0.8. You should be able to see the first page of the web server running on the demonstration kit. Figure 7. First page of the web server demonstration software You can also ping to the board using ping command on your PC. Doc ID 16379 Rev 2 12/37... -
Page 13: Boards Layout
Boards layout UM0819 Boards layout Board layout - ST802RT1 TX mode Ethernet PHY demonstration board Figure 8. Board layout - ST802RT1 TX mode Ethernet PHY demonstration board 13/37 Doc ID 16379 Rev 2... -
Page 14: Board Layout - Stm32F107 Controller Demonstration Board
UM0819 Boards layout Board layout - STM32F107 controller demonstration board Figure 9. Board layout - STM32F107 controller demonstration board Doc ID 16379 Rev 2 14/37... -
Page 15: Configuration And Functionality
6.1.1 Boot strap options The ST802RT1 TX mode PHY uses many of the functional pins as strap options. The values of these pins are sampled during hardware reset and power up. They are used to strap signals on the device into specific modes of operation. The ST802RT1 TX mode provides a simple strap option to automatically configure the device to operate in the modes requiring no device register configuration. -
Page 16: Table 1. Auto-Negotiation Jumper Settings
JP18 High negotiation enabled, when “low” - auto-negotiation disabled 1. See functionality of AN_xxx pins in the ST802RT1 product documentation. PHY MII address The MDIO/MDC serial management interface is used to access the internal registers of the PHY. The Ethernet MAC that is connected to the PHY must know the appropriate PHY address for successful communication. -
Page 17: Solder Bridges
6.1.2 Solder bridges The SB1 and SB2 solder bridges are used to connect 25MHz crystal X1 to the ST802RT1 TX mode PHY. They can be removed to disconnect the crystal when external clock signal on test point MCO is used as the input clock. -
Page 18: Test Point Mco
The test point MCO can be used to connect external clock signal to clock input of the STM802RT1A PHY in MII mode. Note that the 25 MHz crystal X1 has to be disconnected from the ST802RT1 TX mode PHY by removing solder bridges SB1 and SB2 before connecting any external signal to the test point. -
Page 19: Buttons
6.2.4 Test point MCO There is MCO (Main Clock Output) clock signal of STM32 available on this test point which can be used as input clock source of the ST802RT1 TX mode PHY. 19/37 Doc ID 16379 Rev 2... -
Page 20: Connectors
UM0819 Connectors Connectors Connectors of the ST802RT1 TX mode Ethernet PHY demonstration board 7.1.1 MII/RMII debugging connector J1 Figure 11. MII/RMII debugging connector J1 Table 10. MII/RMII debugging connector J1 Signal Signal Signal Signal +5 V TXCLK MDIO TXEN TXD_0... -
Page 21: Mii/Rmii Connector P1
Connectors UM0819 7.1.2 MII/RMII connector P1 Figure 12. MII/RMII connector P1 Table 11. MII/RMII connector P1 Signal Signal Signal Signal RXD3 TXER TXD0 +5 V RXD0 RXER TXD3 RXD1 TXEN TXD2 MDIO RXCLK TXCLK RXD2 RXDV TXD1 7.1.3 RJ45 connector J9 Figure 13. -
Page 22: Connectors Of The Stm32F107 Controller Board
UM0819 Connectors Connectors of the STM32F107 controller board 7.2.1 USB connector CN1 Figure 14. USB connector CN1 Table 13. USB connector CN1 Signal Signal D– 7.2.2 JTAG connector CN2 The 20-pin connector (CN2) provides the JTAG interface. This interface is primarily used for communicating with a PC using suitable USB/JTAG converter box such as J-Link from IAR Systems™... -
Page 23: Mii/Rmii Connector Cn3
Connectors UM0819 Table 14. JTAG connector CN2 Signal Signal Signal Signal RTCK connected to 3.3 V DC GND by R1 (10 kΩ) DBGRQ connected to 3.3 V DC JTMS GND by R2 (10 kΩ) JTRST JTDO DBGACK connected to JTCK GND by R14 (10 kΩ) JTDI NRST... -
Page 24: Gpio Connector Cn4
UM0819 Connectors Table 15. MII/RMII connector CN3 Signal Signal Signal Signal RXD3 TXER TXD0 +5 V RXD0 RXER TXD3 RXD1 TXEN TXD2 MDIO RXCLK TXCLK RXD2 RXDV TXD1 7.2.4 GPIO connector CN4 Figure 18. GPIO connector CN4 Table 16. GPIO connector CN4 Signal Signal Signal... -
Page 25: List Of Transformers And Rj45 Connectors With Embedded Transformers With Turn Ratio 1.414:1
List of transformers and RJ45 connectors with embedded transformers with turn ratio 1.414:1 List of transformers and RJ45 connectors with embedded transformers with turn ratio 1.414:1 HALO Electronics, Inc. www.haloelectronics.com ● HFJ11-2477E-L12RL (RJ45 with integrated transformer) ● TG110-S177N2RL (transformer) Pulse www.pulseeng.com ●... - Page 26 UM0819 ST802RT1 TX mode Ethernet PHY demonstration board - BOM Appendix A ST802RT1 TX mode Ethernet PHY demonstration board - BOM Table 17. Bill of material ST802RT1 TX mode Designator Qty. Description Value Order assembled ® GM Electronic Push button (DT2112C)
-
Page 27: Table 17. Bill Of Material St802Rt1 Tx Mode
ST802RT1 TX mode Ethernet PHY demonstration board - BOM UM0819 Table 17. Bill of material ST802RT1 TX mode (continued) Designator Qty. Description Value Order assembled Header, 20-pin, dual row Header 10 x 2 Farnell: 1593446 Resistor 5.6 KΩ Farnell: 1514773 Resistor 91 KΩ... -
Page 28: Bom
UM0819 STM32F107 controller demonstration board - BOM Appendix B STM32F107 controller demonstration board - Table 18. Bill of material STM32F107 Designator Qty. Description Value Order assembled Polarized capacitor C1, C2, C8 10 µF / 6.3 V Farnell: 1213794 (surface mount) C3, C4 Capacitor 100 nF_0805... - Page 29 Farnell: 1646159 GME: 630-121 Farnell: RESET1 Switch Reset 9471898 GME: 630-121 Farnell: RESET2 Switch 9471898 STM32F107_256K ST: STM32F107 Low drop voltage LD1117S33 ST: LD1117S33 regulator Epson Crystal: FA-238 25 MHz Farnell: 1712818 SB1, SB2, SB3, Solder bridge SB1, SB2 29/37...
-
Page 30: Appendix C St802Rt1 Tx Mode Ethernet Phy Demonstration Board
ST802RT1 TX mode Ethernet PHY demonstration board - schematic Appendix C ST802RT1 TX mode Ethernet PHY demonstration board - schematic Figure 19. ST802RT1 TX mode Ethernet PHY demonstration board - schematic - part 1 Doc ID 16379 Rev 2 30/37... -
Page 31: Figure 20. St802Rt1 Tx Mode Ethernet Phy Demonstration Board - Schematic - Part 2
ST802RT1 TX mode Ethernet PHY demonstration board - schematic UM0819 Figure 20. ST802RT1 TX mode Ethernet PHY demonstration board - schematic - part 2 31/37 Doc ID 16379 Rev 2... -
Page 32: Figure 21. St802Rt1 Tx Mode Ethernet Phy Demonstration Board - Schematic - Part 3
UM0819 ST802RT1 TX mode Ethernet PHY demonstration board - schematic Figure 21. ST802RT1 TX mode Ethernet PHY demonstration board - schematic - part 3 Doc ID 16379 Rev 2 32/37... -
Page 33: Figure 22. St802Rt1 Tx Mode Ethernet Phy Demonstration Board - Schematic - Part 4
ST802RT1 TX mode Ethernet PHY demonstration board - schematic UM0819 Figure 22. ST802RT1 TX mode Ethernet PHY demonstration board - schematic - part 4 33/37 Doc ID 16379 Rev 2... -
Page 34: Appendix Dstm32F107 Controller Demonstration Board - Schematic
UM0819 STM32F107 controller demonstration board - schematic Appendix D STM32F107 controller demonstration board - schematic Figure 23. STM32F107 controller demonstration board - schematic - part 1 Doc ID 16379 Rev 2 34/37... -
Page 35: Figure 24. Stm32F107 Controller Demonstration Board - Schematic - Part 2
STM32F107 controller demonstration board - schematic UM0819 Figure 24. STM32F107 controller demonstration board - schematic - part 2 35/37 Doc ID 16379 Rev 2... -
Page 36: Revision History
UM0819 Revision history Revision history Table 19. Document revision history Date Revision Changes 18-Nov-2009 Initial release. 07-May-2010 Added Section Doc ID 16379 Rev 2 36/37... - Page 37 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
