Advanced-control timers (TIM1&TIM8)
For example, to configure the upcounter to count in response to a rising edge on the TI2
input, use the following procedure:
1. Configure channel 2 to detect rising edges on the TI2 input by writing CC2S = '01' in
the TIMx_CCMR1 register.
2. Configure the input filter duration by writing the IC2F[3:0] bits in the TIMx_CCMR1
register (if no filter is needed, keep IC2F=0000).
3. Select rising edge polarity by writing CC2P=0 in the TIMx_CCER register.
4. Configure the timer in external clock mode 1 by writing SMS=111 in the TIMx_SMCR
register.
5. Select TI2 as the trigger input source by writing TS=110 in the TIMx_SMCR register.
6. Enable the counter by writing CEN=1 in the TIMx_CR1 register.
Note: The capture prescaler is not used for triggering, so you don't need to configure it.
When a rising edge occurs on TI2, the counter counts once and the TIF flag is set.
The delay between the rising edge on TI2 and the actual clock of the counter is due to the
resynchronization circuit on TI2 input.
External clock source mode 2
This mode is selected by writing ECE=1 in the TIMx_SMCR register.
The counter can count at each rising or falling edge on the external trigger input ETR.
Figure 76
ETR pin
307/1128

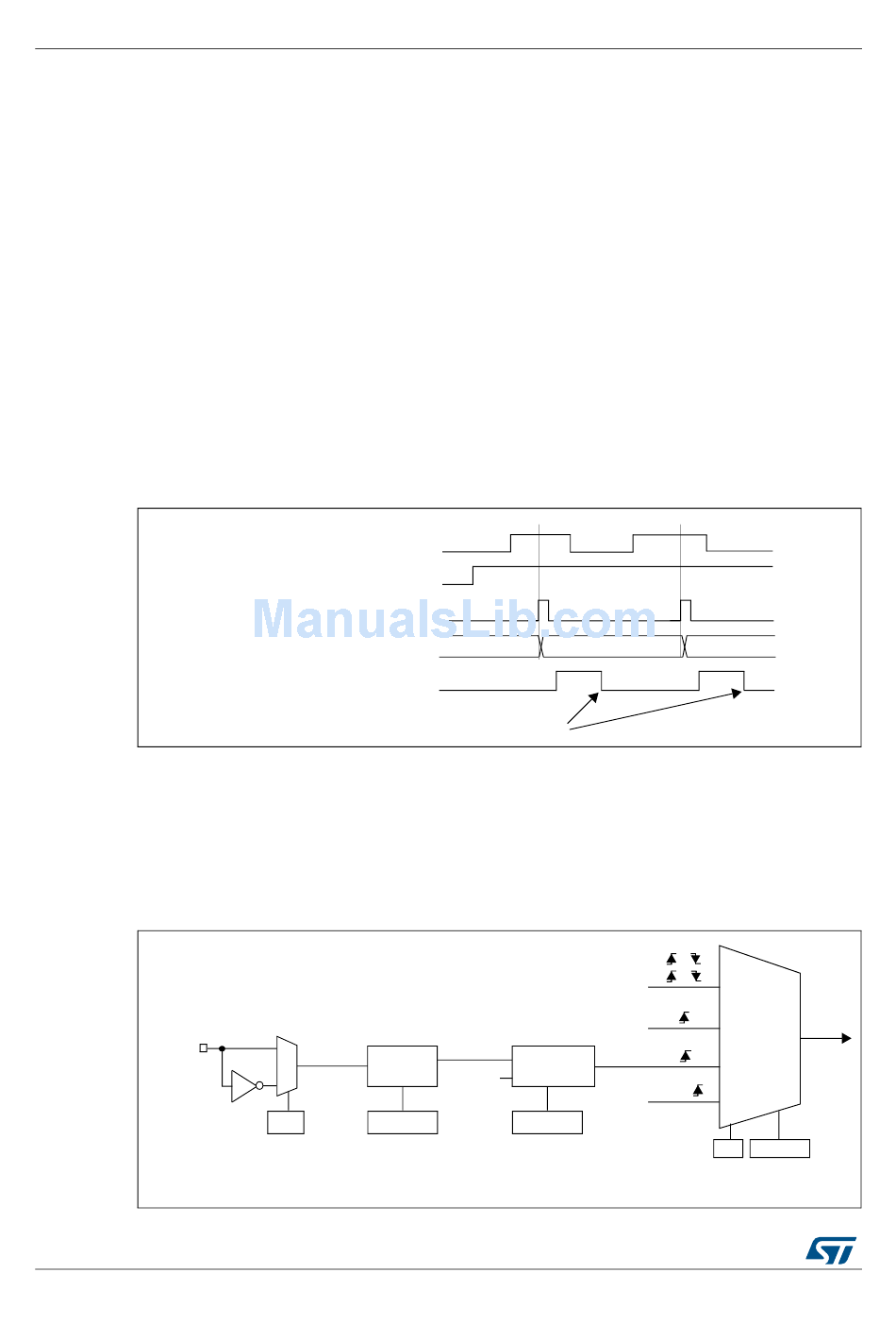

Figure 75. Control circuit in external clock mode 1

CNT_EN
Counter clock = CK_CNT = CK_PSC
Counter register
gives an overview of the external trigger input block.

Figure 76. External trigger input block

ETR
0
divider
/1, /2, /4, /8
1
ETP ETPS[1:0]
TIMx_SMCR TIMx_SMCR
DocID13902 Rev 15
TI2
34
TIF
Write TIF=0
ETRP
filter
downcounter
f
DTS
ETF[3:0]
TIMx_SMCR
35 36
TI2F
or
or
or
TI1F encoder
mode
TRGI external clock
mode 1
ETRF
external clock
mode 2
CK_INT
internal clock
mode
(internal clock)
ECE SMS[2:0]
TIMx_SMCR
RM0008
CK_PSC
