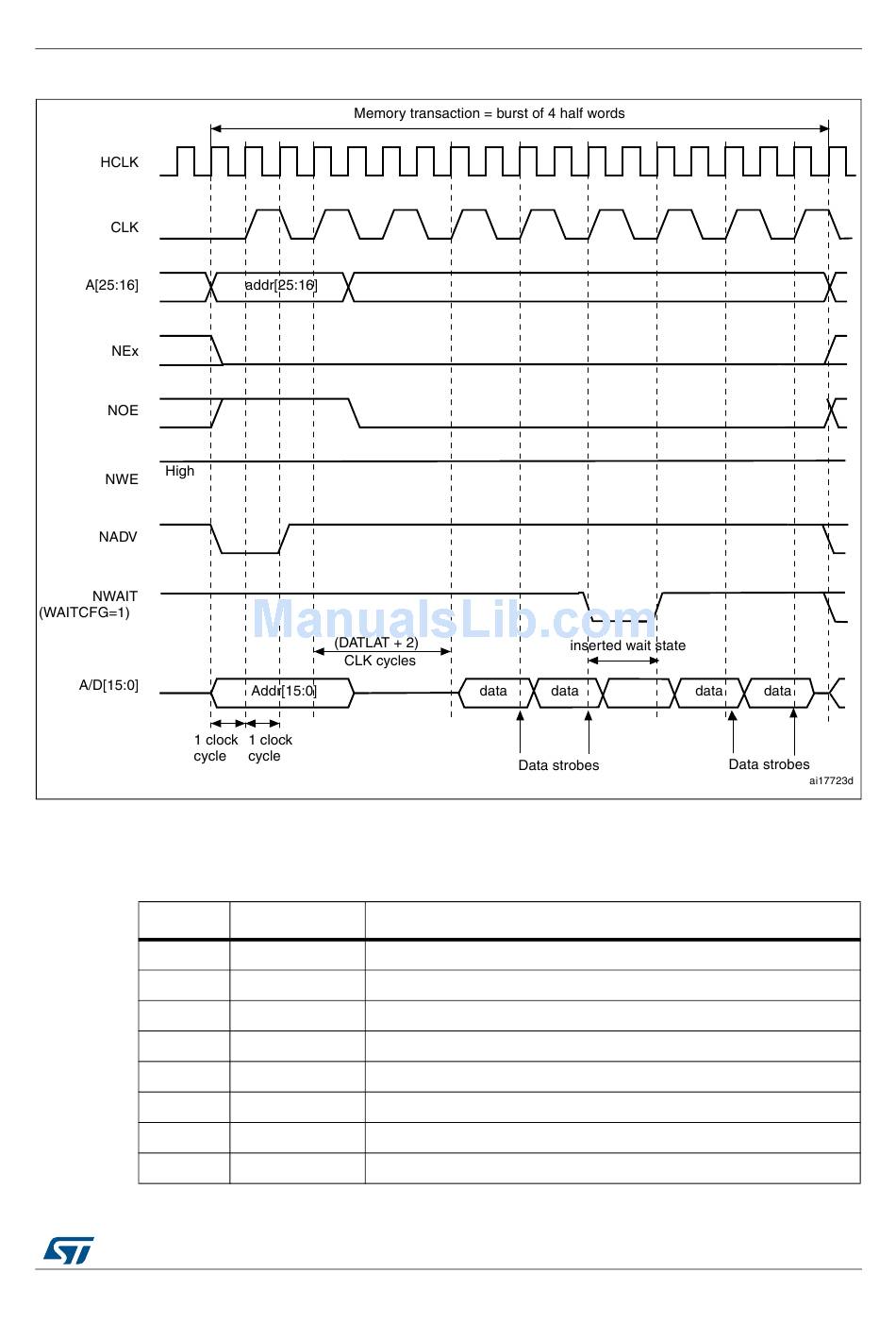

Figure 202. Synchronous multiplexed read mode - NOR, PSRAM (CRAM)

1. Byte lane outputs BL are not shown; for NOR access, they are held high, and, for PSRAM (CRAM) access,
they are held low.
2. NWAIT polarity is set to 0.
Bit No.
31-20
19
18-16
15
14
13
12
11

Table 125. FSMC_BCRx bit fields

Bit name
Reserved 0x000
CBURSTRW No effect on synchronous read
Reserved 0x0
ASCYCWAIT 0x0
EXTMOD 0x0
WAITEN Set to 1 if the memory supports this feature, otherwise keep at 0.
WREN no effect on synchronous read
WAITCFG to be set according to memory
