USB on-the-go full-speed (OTG_FS)
B-device session request protocol
The application must set the SRP-capable bit in the Core USB configuration register. This
enables the OTG_FS controller to initiate SRP as a B-device. SRP is a means by which the
OTG_FS controller can request a new session from the host.
VBUS_VALID
B_VALID
DISCHRG_VBUS
SESS_END
DP
DM
CHRG_VBUS
1. VBUS_VALID = V
B_VALID = B-peripheral valid session to PHY
DISCHRG_VBUS = discharge signal to PHY
SESS_END = session end signal to PHY
CHRG_VBUS = charge V
DP = Data plus line
DM = Data minus line
1. To save power, the host suspends and turns off port power when the bus is idle.
The OTG_FS controller sets the early suspend bit in the Core interrupt register after 3
ms of bus idleness. Following this, the OTG_FS controller sets the USB suspend bit in
the Core interrupt register.
The OTG_FS controller informs the PHY to discharge V
2. The PHY indicates the session's end to the device. This is the initial condition for SRP.
The OTG_FS controller requires 2 ms of SE0 before initiating SRP.
For a USB 1.1 full-speed serial transceiver, the application must wait until V
discharges to 0.2 V after BSVLD (in OTG_FS_GOTGCTL) is deasserted. This
953/1128

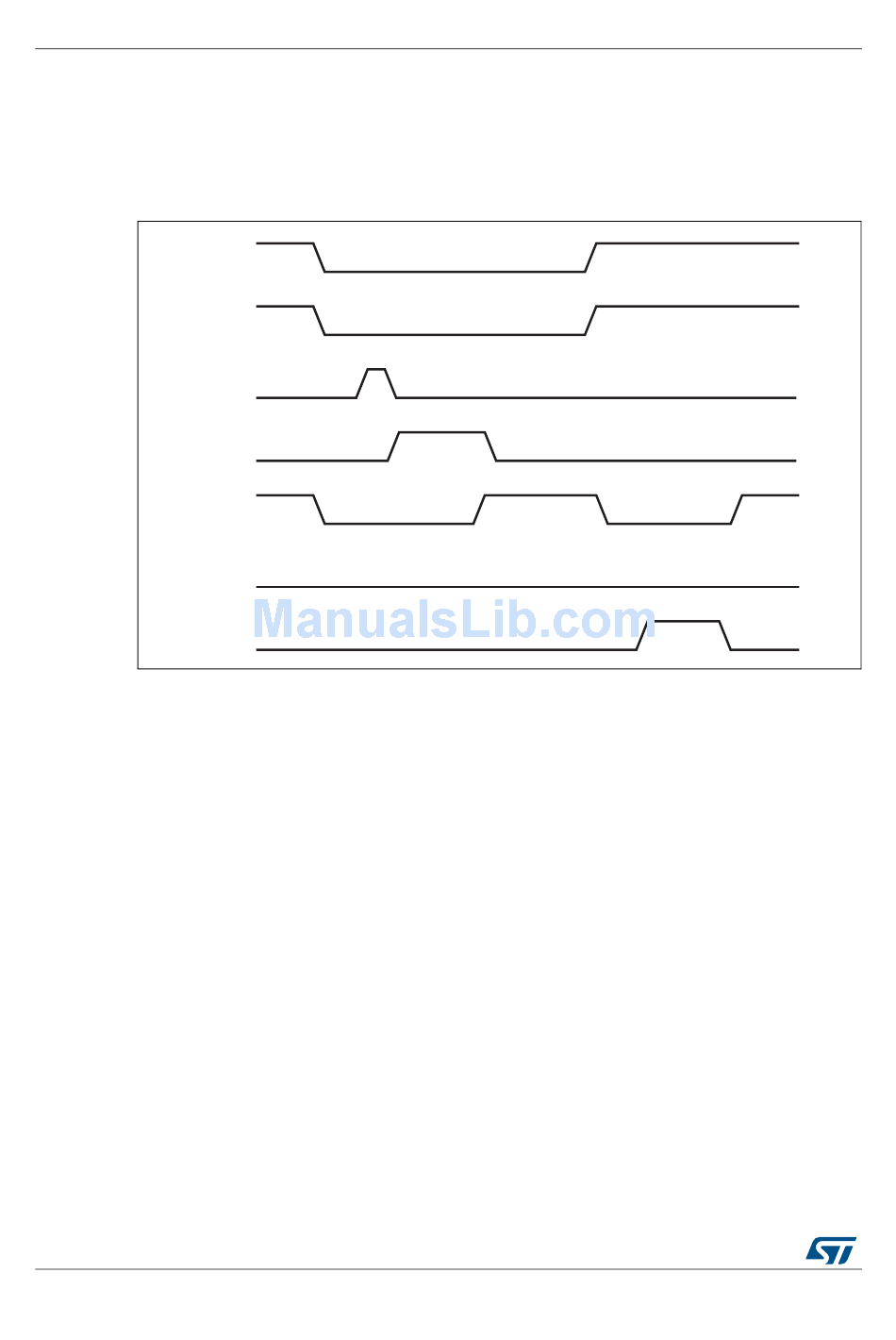

Figure 323. B-device SRP

Suspend
1
2
3
4
Low
valid signal from PHY
BUS
signal to PHY
BUS
DocID13902 Rev 15
6
5
Data line pulsing
7
V
.
BUS
RM0008
8
Connect
pulsing
BUS
ai15682
BUS
