For data output using the
Chapter 9.1.7 "McBSP Interface", page
For data input using the McBSP
Chapter 9.2.4 "McBSP Interface", page
mcbsp_init allows setting a data delay for the
data transmission independently for the transmitter
and receiver. Possible values range from 0 to 2
(Default: 1).
All signals are referenced to GND
RTC6 PCIe Board as Transmitter
The following specifications apply to CLKX0, FSX0
and DX0:
• Signal level 3.3 V TTL
• McBSP mode:
– Single phase frame
– Single element per frame
– 32 bits per element
XDelay
– Data delay bits
• The timing diagram of the
shown in Figure 29. A frame synchronization
signal (active-LOW) is generated upon the rising
edge of the clock and held for one clock cycle
(1 data bit). The 32 data bits are transmitted after
XDelay
clock cycles at the rising edges of the clock
and in the sequence Bit #31...Bit #0. The
transmission frequency is by default 8 MHz (4 µs
per data word). Alternatively, a value between
4 MHz and 16 MHz can be set by
set_mcbsp_freq.
B31 B30 B29

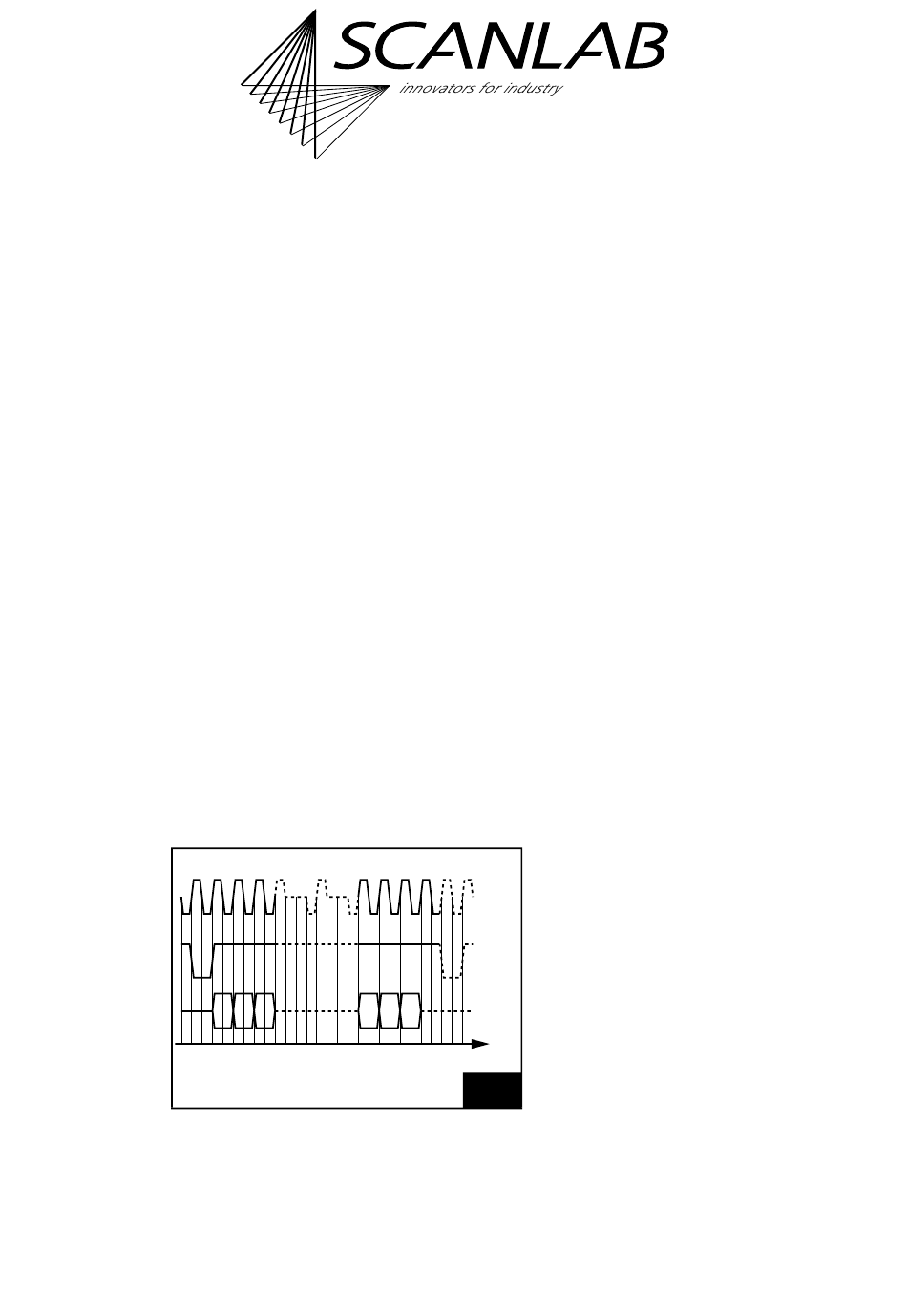

Timing diagram of McBSP signals at 1 bit data delay.
XDelay RDelay
Default: = = 1.
