Solder Jumper Field B – Configuring pin (09)
of EXT. 2 Socket Connector
• Position on the board: lower side, see
number 13.
• Purpose: to configure the signal at
pin (09) of the EXT. 2 socket connector, see the
following table.
• See also "Configuration by Solder Jumpers",
page 80.
• Configurations of solder jumper field B and
solder jumper field C are independent from each
other.
• On the RTC6 Ethernet Board the printed label of
solder jumper field B is 'Pin 17'. This has been
chosen deliberately in order to keep consistency
with already existing RTC boards. Even though
pin (09) is actually configured.

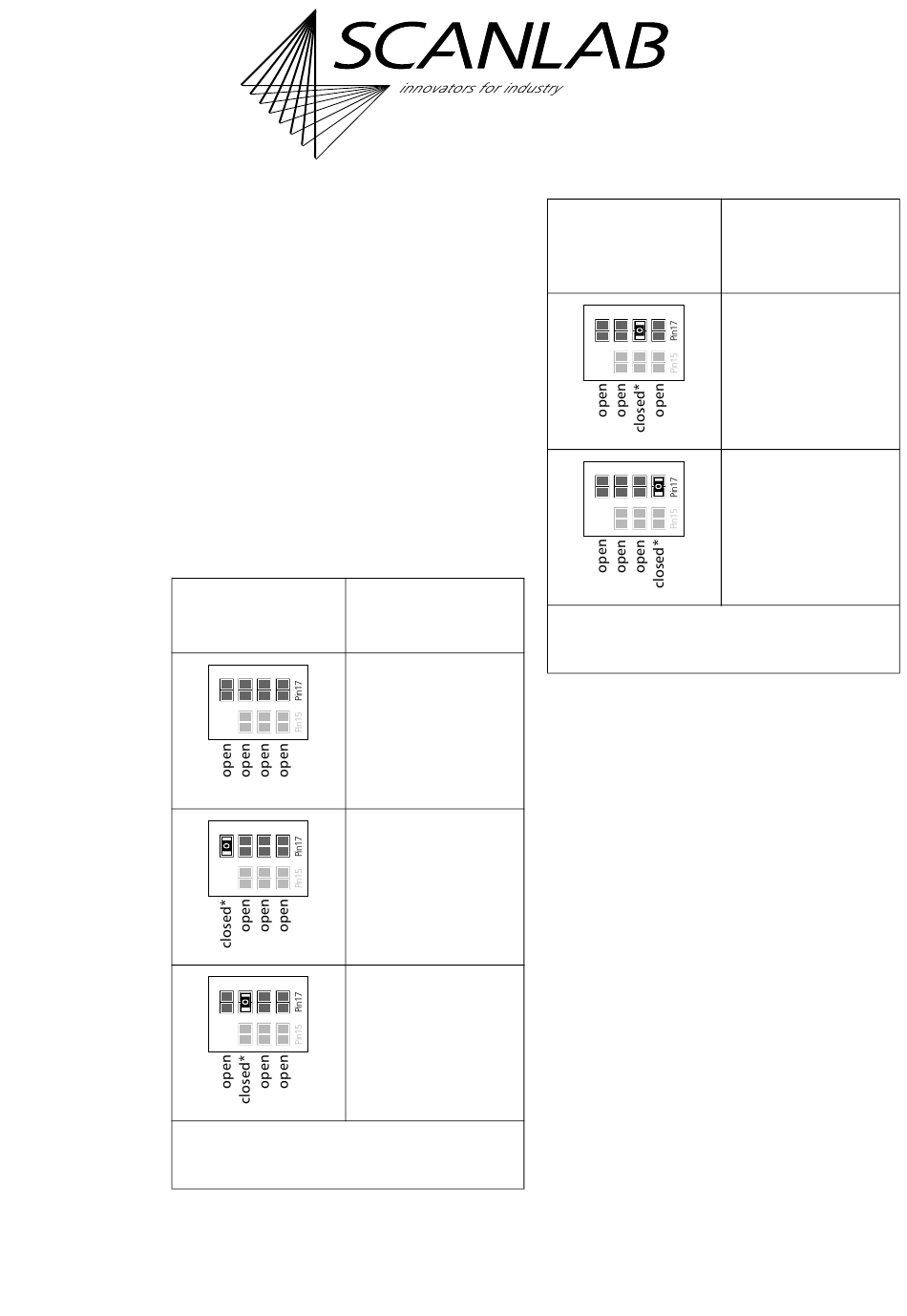

Allowed
jumper setting
Latch GND+5V Data7
Latch GND+5V Data7
Latch GND+5V Data7
*
Caution: make sure that only one position is closed
in this solder jumper field. Other combinations are
not allowed and cause damage to the board!
RTC6 boards
Doc. Rev. 1.0.21 en-US
16 Appendix A: The RTC6 Ethernet Board
Figure 73,
Output at the EXT. 2
socket connector
pin (09)
No signal.
LATCH signal.
GROUND
(low level).
Allowed
jumper setting
(cont'd)
Latch GND+5V Data7
Latch GND+5V Data7
*
Caution: make sure that only one position is closed
in this solder jumper field. Other combinations are
not allowed and cause damage to the board!
(a) Synonym: Data Bit #7. MSB
Output at the EXT. 2
socket connector
pin (09)
(cont'd)
+5 V
(high level).
(a)
DATA7 .
of the 8-bit output value.
