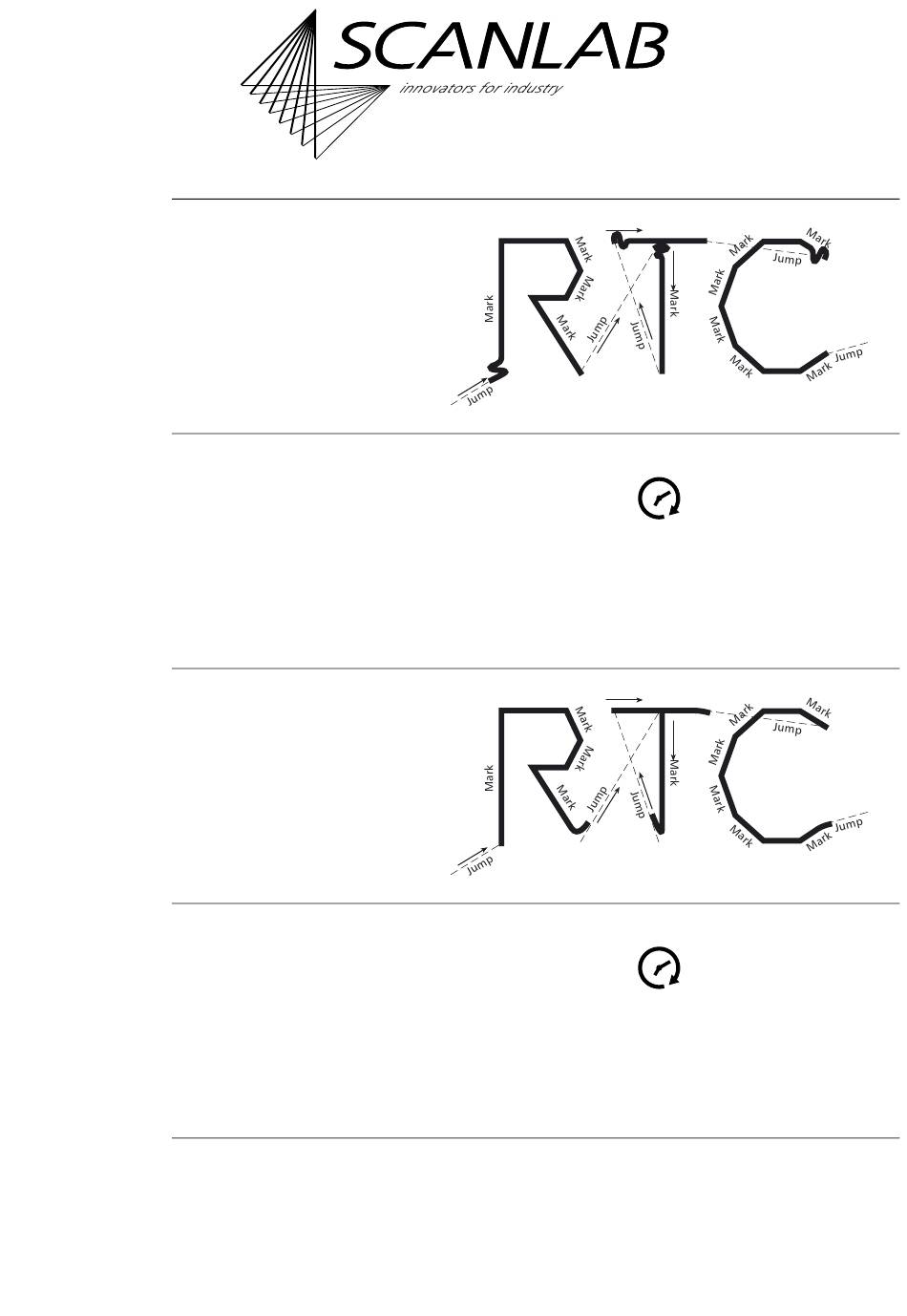

Jump Delay too short
The mark vector that follows a
Jump Command has already
started although the scanners
have not yet settled.
A running-in oscillation or
overshoot is visible.
Jump Delay too long
There are no visible effects if the
Jump Delay is too long.
However, the scanning time is
extended.
Mark Delay too short
The traversing of a vector is
started before the mirrors have
reached the end position of the
preceding mark vector.
The end of the mark vector is
turned towards the direction of
the jump vector.
Mark Delay too long
There are no visible effects if the
Mark Delay is too long, but the
scanning time is increased.
