16.2.5 SCANHEADs Socket Connector
The SCANHEADs socket connector has 20 pins. It is
located on the upper side of the RTC6 Ethernet
Board, see Figure 72, number 2.
The SCANHEADs socket connector provides the same
signals as the SCANHEAD and
socket connector of the RTC6 PCIe Board for the first
scan head connector (pin (01)...pin (10)) and the
second scan head-connector (pin (11)...pin (20)).
The pin-out is shown in Figure
DATA IN 1+ (01)
+3.3 V DO NOT CONNECT (03)
NOT CONNECTED (05)
NOT CONNECTED (07)
DATA OUT 1+ (09)
DATA IN 2+* (11)
+3.3 V DO NOT CONNECT (13)
NOT CONNECTED (15)
NOT CONNECTED (17)
DATA OUT 2+* (19)
* Signals for the 2nd scan head: option.
Identical in construction to Würth 61202020621.

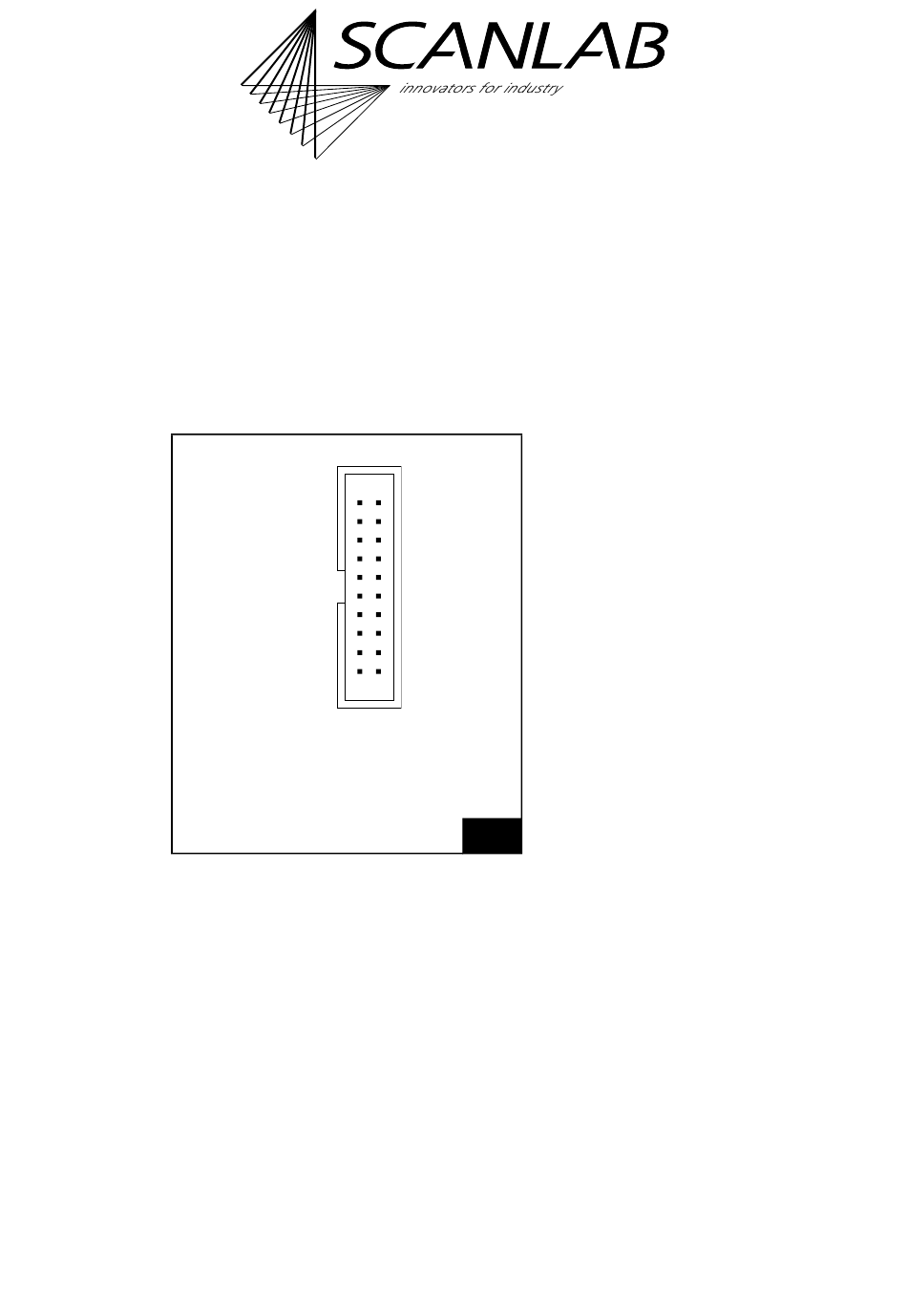

SCANHEADs socket connector: pin-out. The pitch of the
pins is 2.54 mm.
RTC6 boards
Doc. Rev. 1.0.21 en-US
16 Appendix A: The RTC6 Ethernet Board
2. SCANHEAD
78.
(02) DATA IN 1–
1 2
(04) GND
(06) GND
(08) DATA OUT 1–
(10) NOT CONNECTED
(12) DATA IN 2–*
(14) GND
(16) GND
(18) DATA OUT 2–*
(20) NOT CONNECTED
78
A cabling example is shown in
Y cable is available from SCANLAB with a length of
0.2 m: #116050).
Scan system control (via an
(Accessory), if needed) is identical to that of the
RTC6 PCIe Board.
For further information, see
to Scan System", page 67.
