16.2 Layout, Interfaces, Jumper Settings
16.2.1 Layout – Upper Side
Mounting hole
4x
Legend
1. LASER . . . . . . . . . . . . . . . . 16-pin socket connector. To connect the laser. With digital and analog outputs.
2. SCANHEADs. . . . . . . . . . . . 20-pin socket connector. To connect the first and second scan head.
3. POWER . . . . . . . . . . . . . . . 2-pin socket connector. For the voltage supply.
4. ETH . . . . . . . . . . . . . . . . . . RJ-48 8P8C connector. For the network connection.
5. SPI/ANA/UART . . . . . . . . . . 12-pin socket connector. Hardware interface for several data exchange methods.
6. STEPPER. . . . . . . . . . . . . . . 10-pin socket connector. For controlling up to two stepper motors.
7. MOF . . . . . . . . . . . . . . . . . 14-pin socket connector. Hardware interface for encoder pulses, for example, for Processing-on-the-fly
8. EXT. 2 . . . . . . . . . . . . . . . . 10-pin socket connector. With a 8-bit digital output port.
9. EXTENSION 1 . . . . . . . . . . . 40-pin socket connector. With a 16-Bit Digital Output and
10. Master . . . . . . . . . . . . . . . . 6-pin socket connector. To connect with another RTC6 board for the purpose of synchronize clocks. For
11. Force DHCP . . . . . . . . . . . . Jumper field Jumper field to ignore or not to ignore the saved static IP address.

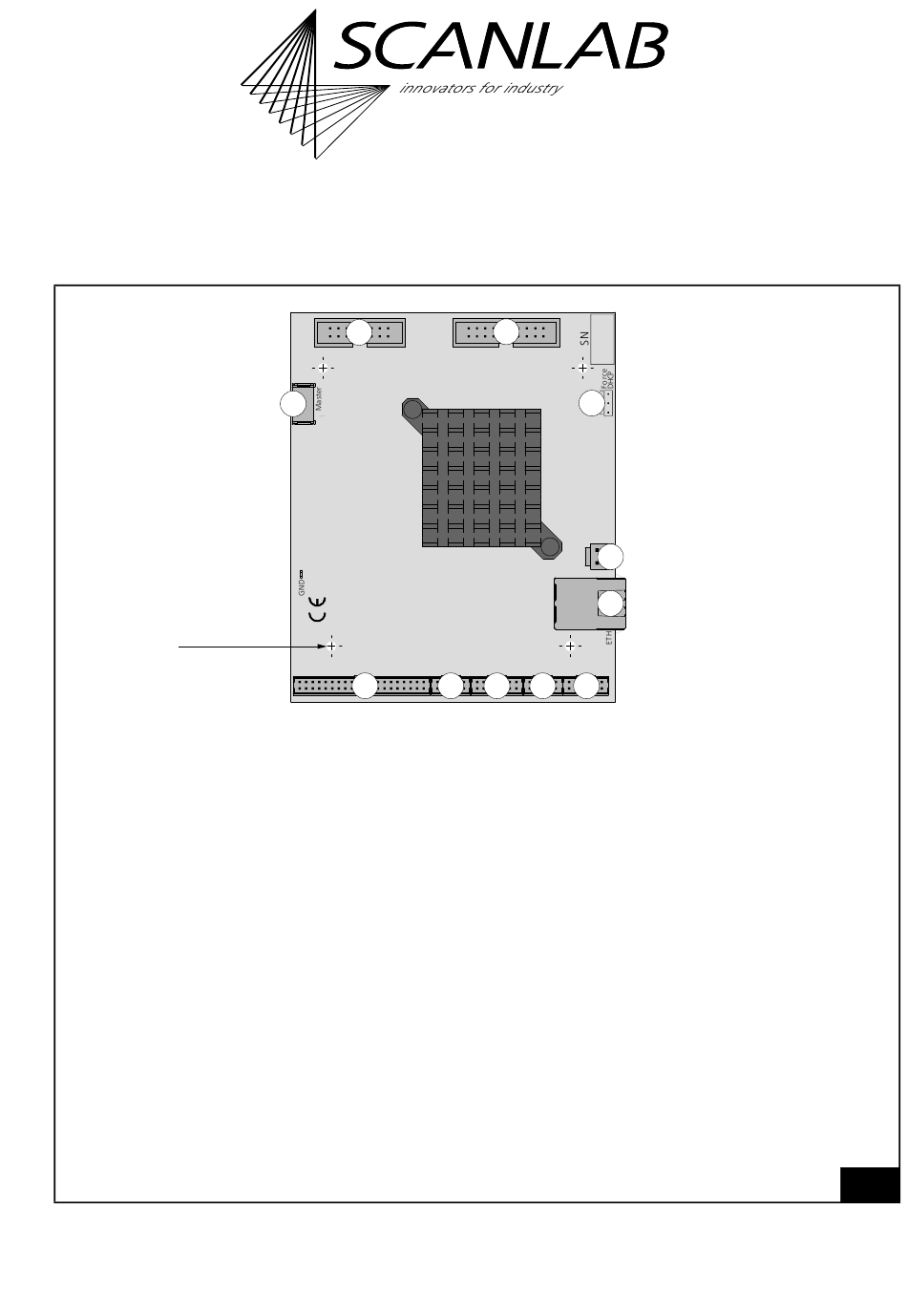

RTC6 Ethernet Board V1.2. Upper side.
