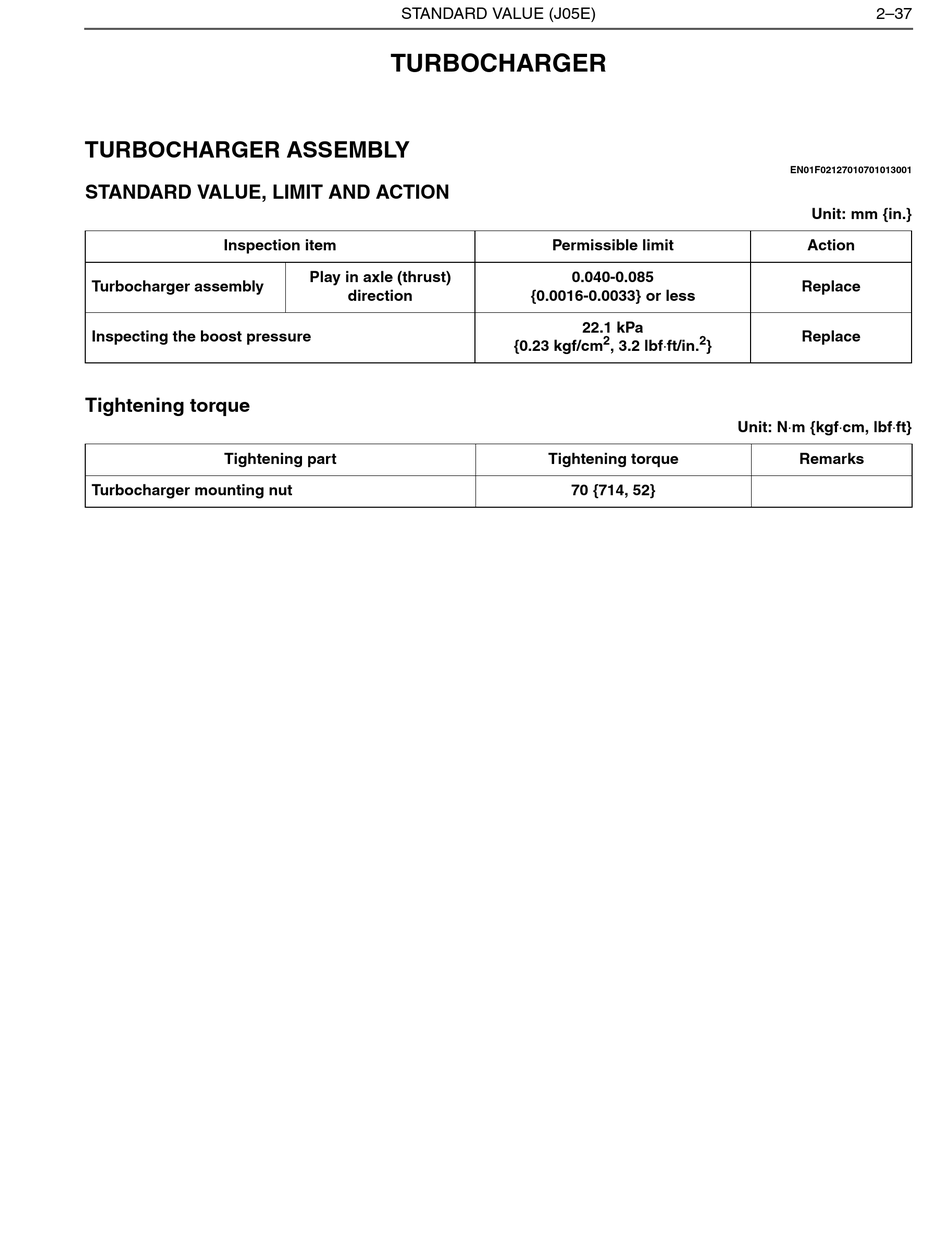

TURBOCHARGER ASSEMBLY

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Turbocharger assembly
Inspecting the boost pressure
Tightening torque
Tightening part
Turbocharger mounting nut
STANDARD VALUE (J05E)

TURBOCHARGER

Play in axle (thrust)
direction
Permissible limit
0.040-0.085
{0.0016-0.0033} or less
22.1 kPa
2
{0.23 kgf/cm , 3.2 lbfft/in.
Tightening torque
70 {714, 52}
2–37
EN01F02127010701013001
Unit: mm {in.}
Action
Replace
Replace
2
}
Unit: Nm {kgfcm, lbfft}
Remarks
