RETURN
PIPE No.3
INTAKE (J05E)
5.
CONNECTING THE RETURN PIPE No.3
(1)
Replace with a new gasket and connect the return pipe No.3 with
bolts.
(2)
Mount the clip with the nut, and fix the return pipe No.3.
SHTS021270800010
6.
MOUNTING THE FUEL FILTER CASE
Reference: FUEL SYSTEM (J05E), FUEL FILTER AND CASE
(ENGINE SIDE), REPLACEMENT, MOUNTING THE FUEL FIL-
TER (ENGINE SIDE) (Page 7-22)
7.
MOUNTING THE CLOSED VENTILATOR
Reference: EMISSION CONTROL (J05E), CLOSED VENTILA-
TOR, REPLACEMENT, MOUNTING THE CLOSED VENTILA-
TOR (Page 8-16)
8.
MOUNTING THE EGR PIPE
Reference: EMISSION CONTROL (J05E), EGR VALVE &
COOLER, REPLACEMENT, MOUNTING THE EGR VALVE &
COOLER (Page 8-8)
9.

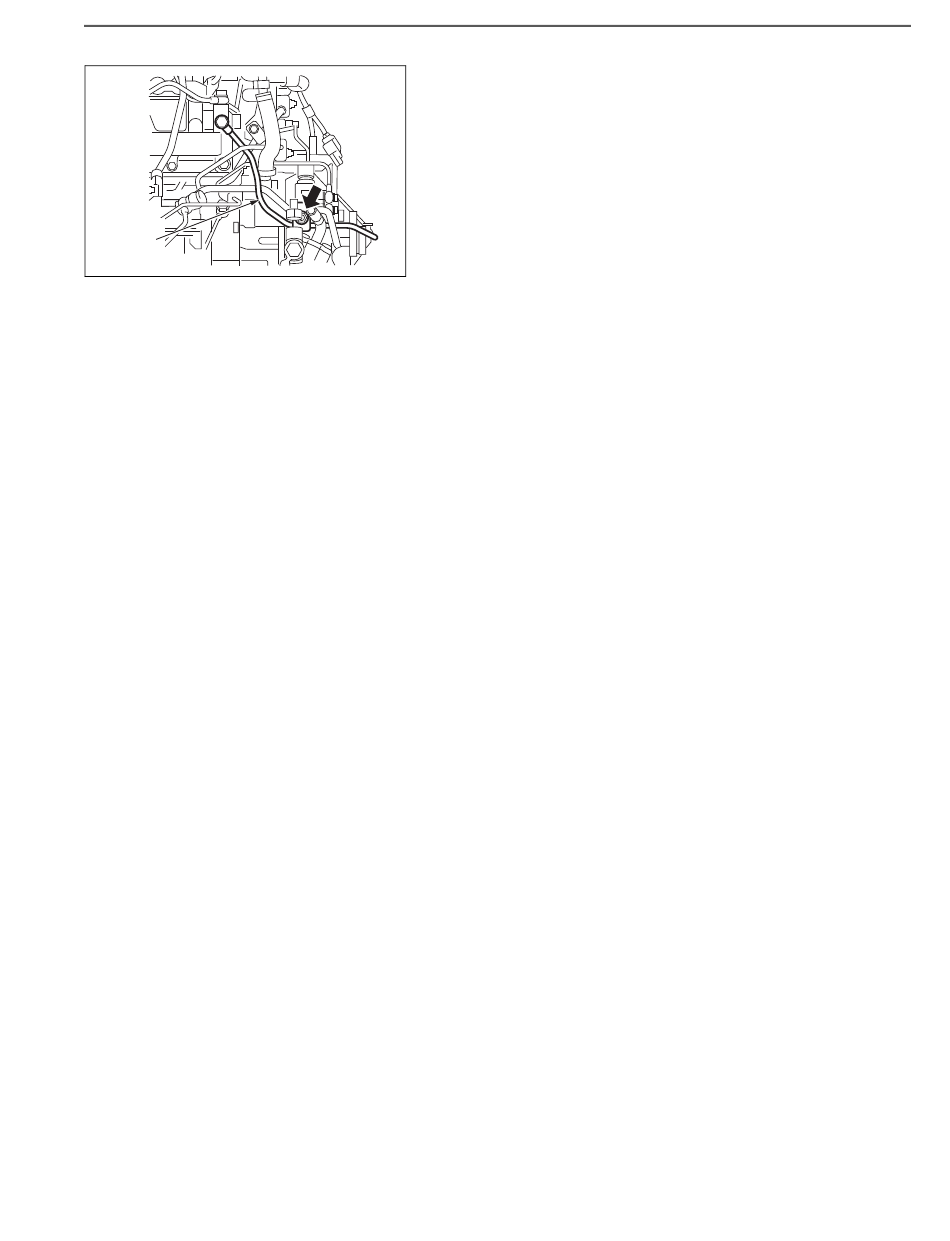

CONNECTING THE HARNESS
(1)
Mount the engine harness around the intake manifold with the
clips, and connect the connector.
9–7
