Hino S5-LJ05E04A Workshop Manual page 137

Rr
Up
SLIDING PORTION
Rr
Up
Rr
Up
PRIMARY LATCH
Rr
Up
ENGINE CONTROL (J05E)

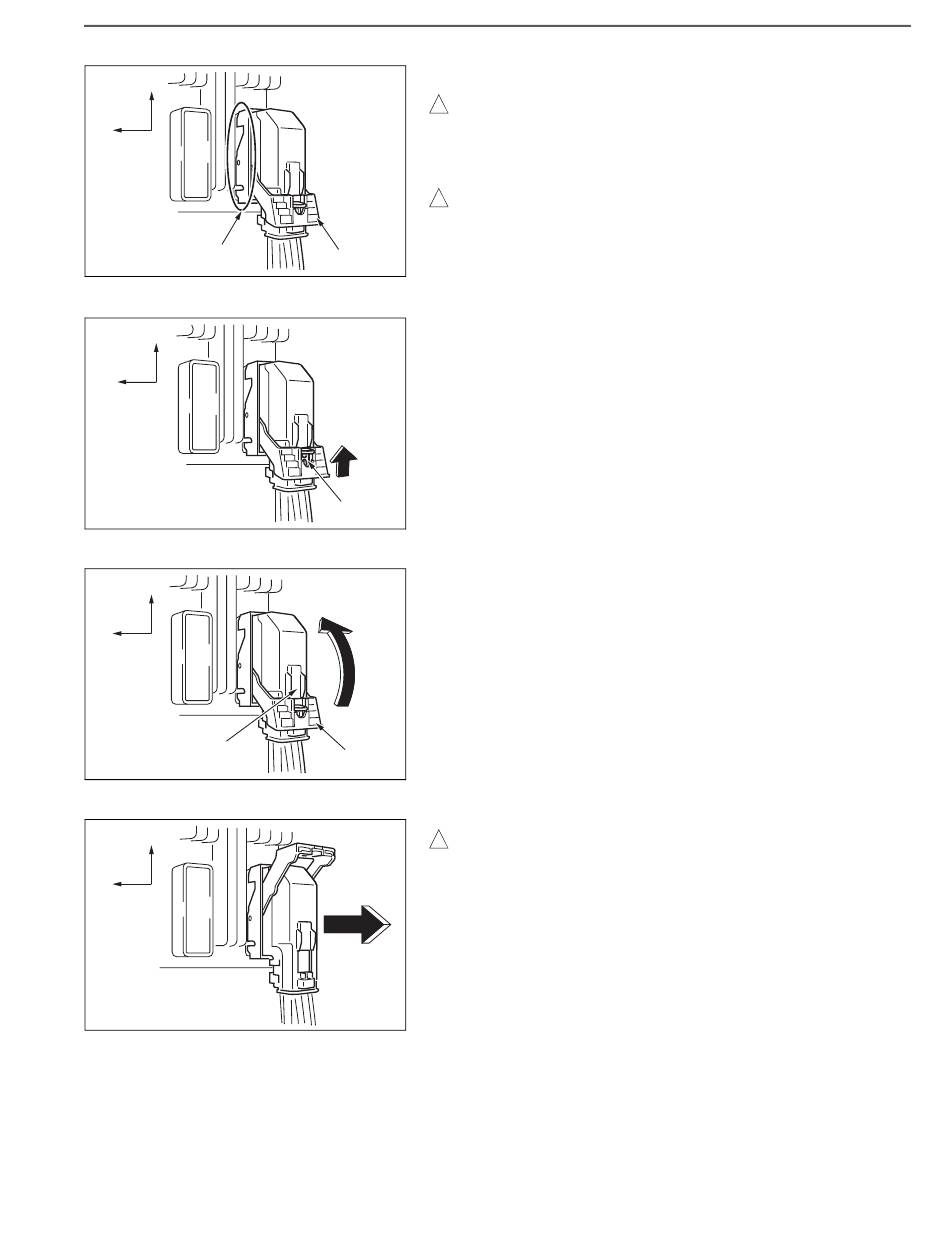

(4) Using the small brush, carefully remove dirt and foreign matter
remaining at the sliding portion.
! CAUTION
While working, do not disconnect the connectors.
(5) Using the waste cloth, wipe off around the engine ECU connector
and engine ECU surface.
! CAUTION
•
While working, do not disconnect the connectors.
•
Wipe up water thoroughly.
LEVER
(6) If you feel the movement of the lever unsmooth, repeat steps (1)
SHTS021270500005
through (5).
(7) Disconnect the engine ECU connector and check it for deposition
of dirt and foreign matter.
a. Set the hook of the connector in the direction of the arrow to
HOOK
SHTS021270500006
b. While pushing the primary latch of the connector, move the
LEVER
SHTS021270500007
c. Pull out the connector straight.
! CAUTION
• Do not insert and remove the connector more than neces-
sary.
•
Do not give shocks to the engine ECU.
• Never detach the harness by holding and pulling or prying as
it may result in wire or terminal deformation.
•
Never insert a test lead from the rear of the connector.
• Do not paint or apply grease or oil to the ECU surface and
connector to maintain their functions and durability.
NOTICE
SHTS021270500008
If it cannot be pulled out with a light force, check if the lever is
fully open.
release the lock.
lever in the direction of the arrow as shown in the figure until a
"click" is heard and then detach the connector.
6–5
