7–60 FUEL SYSTEM (J05E)
MOUNTING VEHICLE SIDE FUEL FILTER ASSEM-
BLY
1. CAUTIONS
! CAUTION
• While working, be careful not to make dirt and water enter
parts.
• Before mounting parts, make sure that there is no dirt on the
connection between them.
•
Air enters the fuel pipe in the process of mounting the pre-
fuel filter case. After mounting is completed, thoroughly
purge air from the fuel pipe.

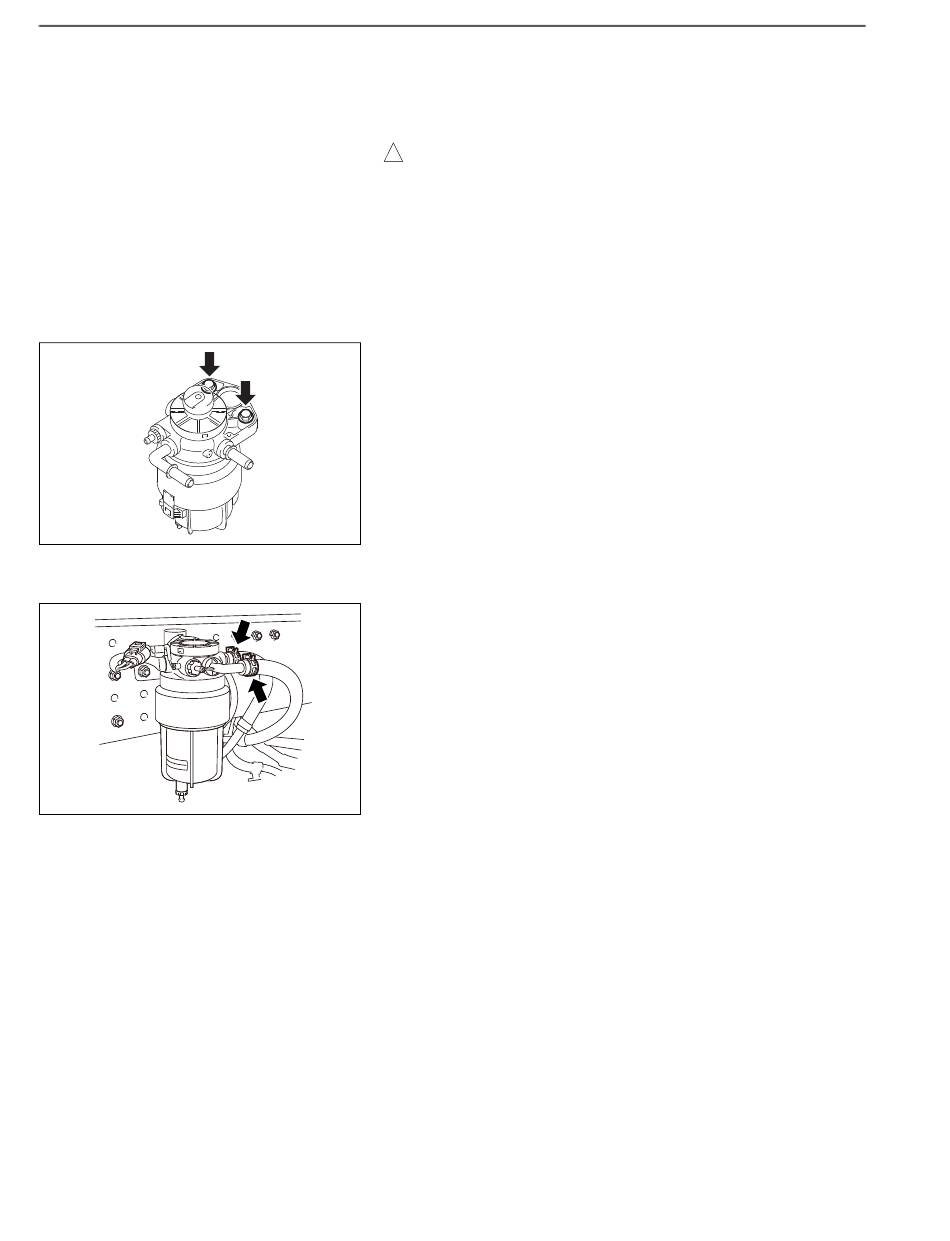

2. MOUNTING FUEL FILTER ASSEMBLY
(1) Mount the fuel filter assembly with 2 bolts.
Tightening Torque:
17.5 N·m {178 kgf·cm, 13 lbf·ft}
SHTS021270600135
3. MOUNTING THE FUEL HOSE
(1) Connect the 2 fuel hoses to the fuel filter body with 2 clamps.
SHTS021270600136
