7–50 FUEL SYSTEM (J05E)

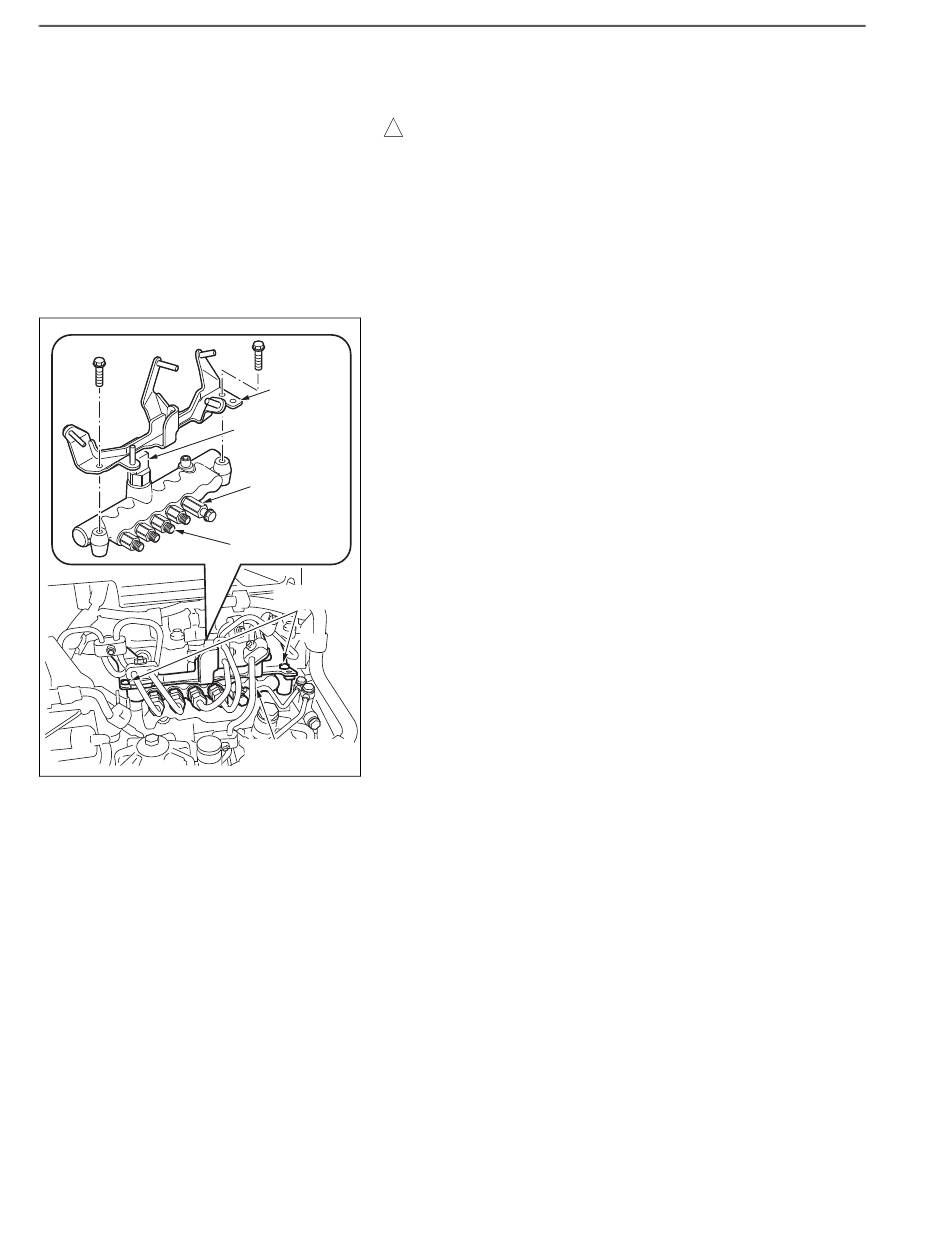

MOUNTING THE COMMON RAIL
1.
! CAUTION
•
•
•
2.
(1)
BRACKET
COMMON RAIL
PRESSURE
SENSOR
PRESSURE
LIMITTER
FLOW DUMPER
BOLT
COMMON RAIL
SHTS021270600116
3.
CAUTIONS
While working, be careful not to make dirt and water enter
parts.
Before mounting parts, make sure that there is no dirt on the
connection between them.
Air enters the fuel pipe in the process of mounting the pre-
fuel filter case. After mounting is completed, thoroughly
purge air from the fuel pipe.
MOUNTING THE COMMON RAIL
Mount the common rail and bracket to the intake manifold with 2
bolts.
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
MOUNTING THE PRESSURE FEED PIPE
Reference: FUEL SYSTEM
REPLACEMENT, MOUNTING THE COMMON RAIL (Page 7-50)
(J05E), COMMON RAIL,
