RADIATOR
SUPPORT SEAL No.1
SHTS021271100012
SHTS021271100013
SHTS021271100014
COOLING (J05E)

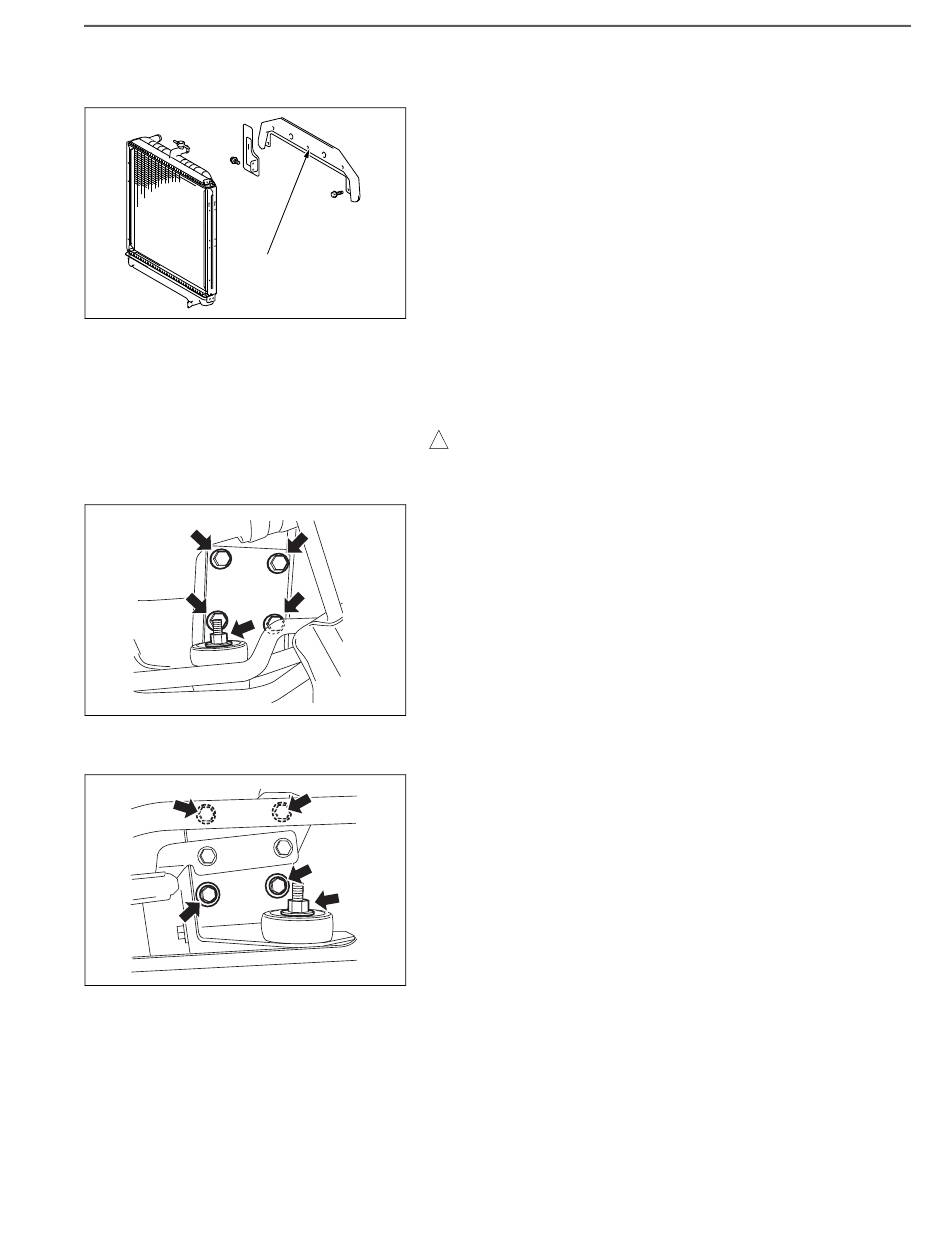

MOUNTING THE RADIATOR
1. MOUNTING THE RADIATOR SUPPORT SEAL No.1
(1) Mount the radiator support seal No.1 to the radiator with 6 bolts.
2. MOUNTING THE RADIATOR
(1) Insert the radiator from the vehicle upper side and set it to mount-
ing position.
! CAUTION
Be careful not to damage the fin of the radiator core during work.
3. MOUNTING THE HEATER PIPE AND RADIATOR BRACKET
(1) Mount the radiator bracket No.4 to the radiator with 4 bolts and
nuts.
Tightening Torque:
19.5 N·m {199 kgf·cm, 14 lbf·ft}
(2) Mount the radiator bracket No.3 to the radiator with 4 bolts and
nuts.
Tightening Torque:
19.5 N·m {199 kgf·cm, 14 lbf·ft}
