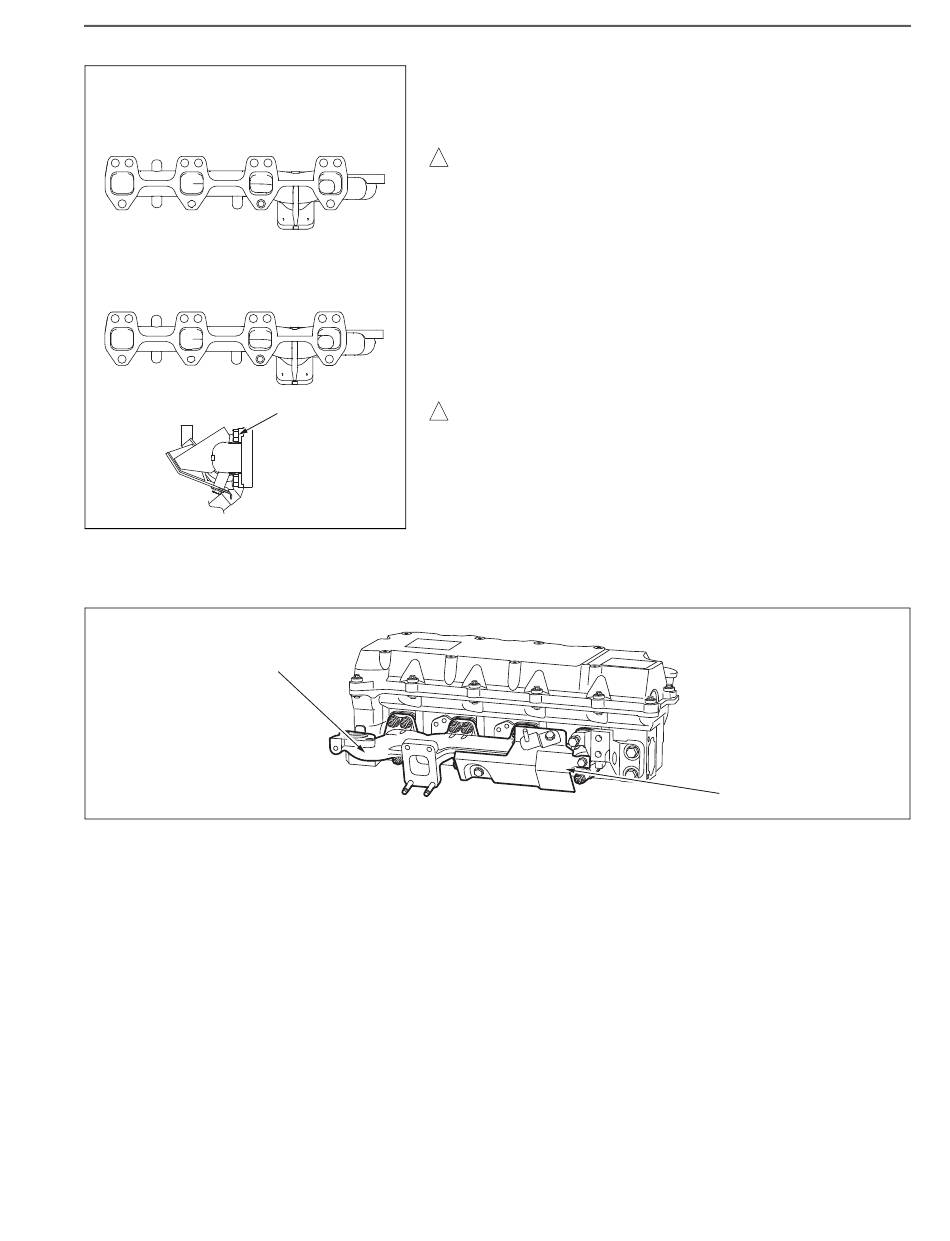

WHEN USING A NEW EXHAUST MANIFOLD:
12 11 10 9 8 7
1 2 3
WHEN REUSING THE EXHAUST MANIFOLD:
8 9 2 3 5 6
7 1 4
EXHAUST
MANIFOLD
EXHAUST (J05E)
(2)
6 5
! CAUTION
•
4
•
•
11 12
(3)
10
! CAUTION
SPACER
Make sure to tighten twice.
SHTS021271000008
(4)
3.
4.
5.
Mount the 12 spacers and tighten 12 nuts in the order as shown in
the figure.
Tightening Torque:
59 N·m {600 kgf·cm, 43.5 lbf·ft}
When tightening the nuts, use care to avoid interference of
individual spacers with the counterbore areas of the exhaust
manifold flange.
The sequential order of tightening is determined depending
on whether a new or a reused exhaust manifold is installed.
Spacers come with 2 different lengths. Do not misassemble
them.
Tighten the 12 nuts in the order as shown in the figure again.
Tightening Torque:
59 N·m {600 kgf·cm, 43.5 lbf·ft}
Fasten the 3 bolts to secure the insulator on the exhaust manifold.
MOUNTING THE TURBOCHARGER ASSEMBLY
Reference: TURBOCHARGER
ASSEMBLY, REPLACEMENT, MOUNTING THE TURBO-
CHARGER ASSEMBLY (Page 17-9)
MOUNTING THE EGR COOLER
Reference: EMISSION CONTROL (J05E), EGR VALVE &
COOLER, REPLACEMENT, MOUNTING THE EGR VALVE &
COOLER (Page 8-8)
MOUNTING THE INTAKE PIPE (EXHAUST SIDE)
Reference: INTAKE (J05E), INTAKE PIPE (EXHAUST SIDE),
REPLACEMENT, MOUNTING THE INTAKE PIPE (EXHAUST
SIDE) (Page 9-13)
11–7
INSULATOR
SHTS021271000009
