11–94
DCU
BRACKET
HARNESS
TANK
BRACKET
DCU BRACKET
DCU
DEF SENSOR
EXHAUST (J05E)

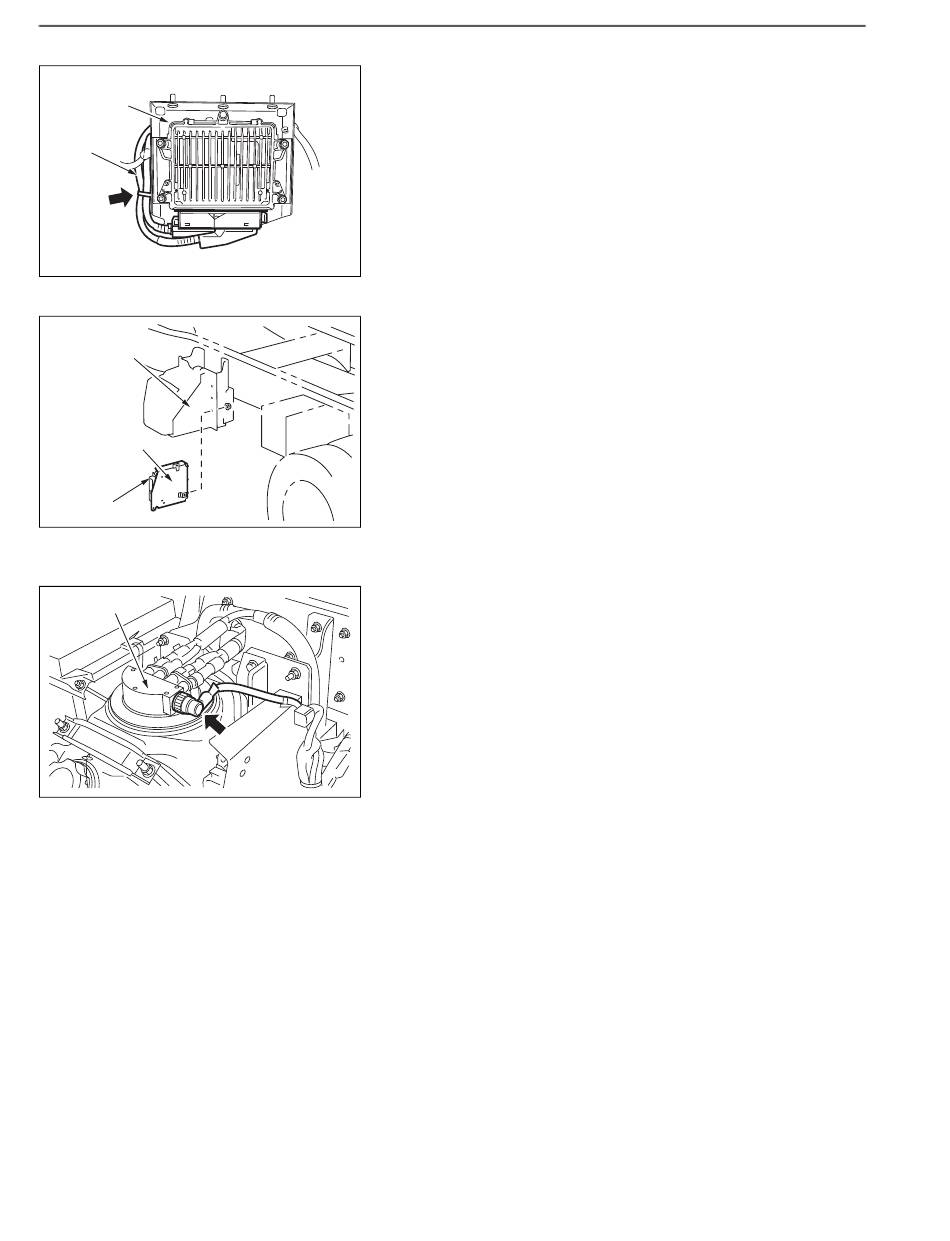

3. MOUNTING THE DCU BRACKET
(1) Mount the harness clamp to the DCU bracket.
SHTS021271000168
(2) Mount the DCU with DCU bracket to the tank bracket with 3 nuts.
Tightening Torque:
22 N·m {224 kgf·cm, 16.2 lbf·ft}
SHTS021271000169
4. CONNECTING THE DEF SENSOR CONNECTOR
(1) Connect the connector to the DEF sensor.
SHTS021271000170
5. MOUNTING THE OUTSIDE TEMPERATURE SENSOR
Reference: EXHAUST (J05E), OUTSIDE TEMPERATURE SEN-
SOR, REPLACEMENT, MOUNTING THE OUTSIDE TEMPERA-
TURE SENSOR (Page 11-120)
