Hino S5-LJ05E04A Workshop Manual page 433

177-191mm {6.97-7.52 in.}
BELLOWS
233mm{9.17 in.}
EXHAUST PIPE
PROTECTOR
EXHAUST (J05E)

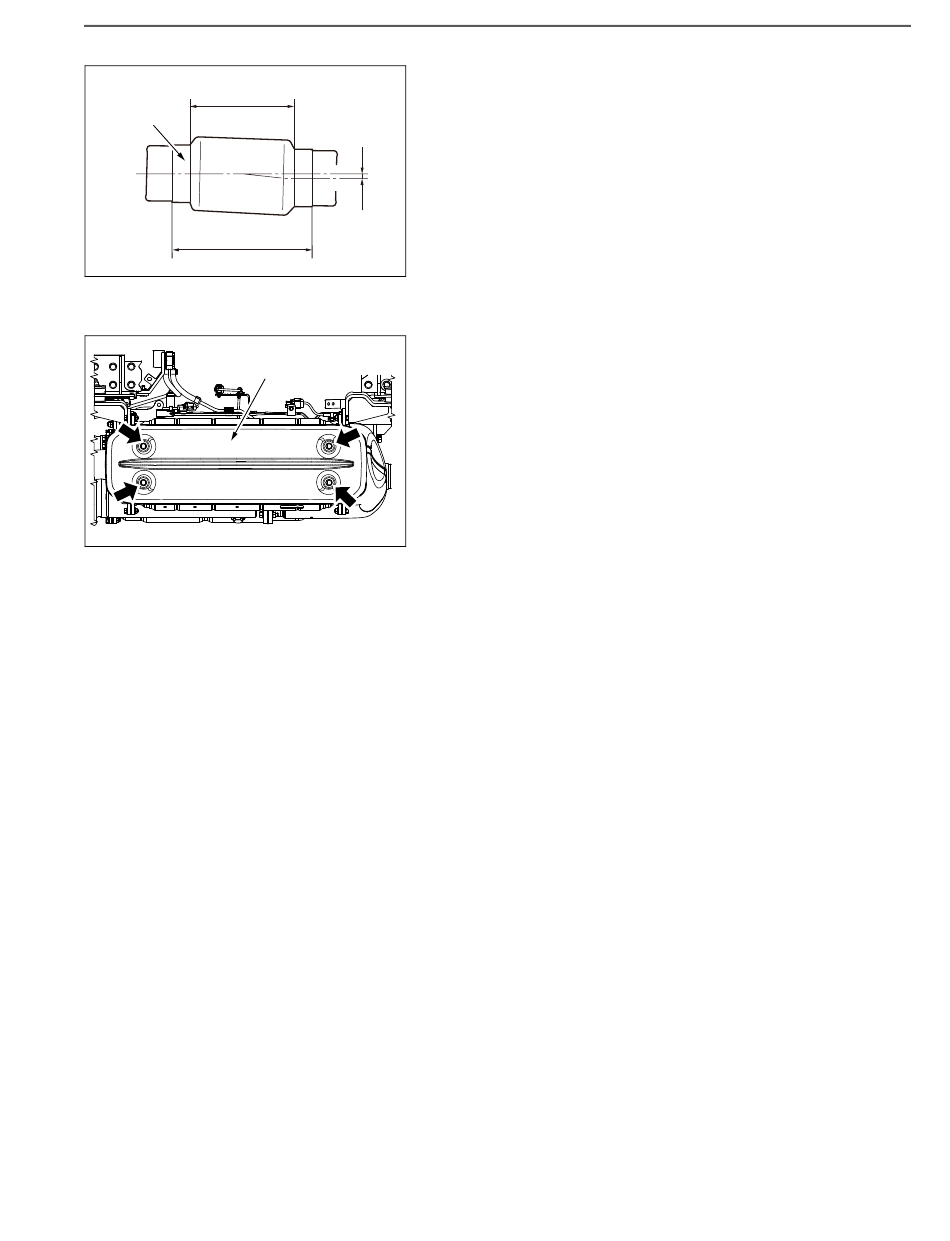

4. INSPECTING THE EXHAUST FLEXIBLE AREA MOUNTING
CONDITION
(1) Check if the exhaust flexible area is mounted as shown in the fig-
ure.
BELOW
7mm{0.28 in.}
SHTS021271000038
5. MOUNTING THE EXHAUST PIPE PROTECTOR
(1) Mount the exhaust pipe protector to the muffler with the bolts (4
pcs.).
Tightening Torque:
31 N·m {316 kgf·cm, 22.9 lbf·ft}
SHTS021271000039
6. INSPECTING FOR EXHAUST GAS LEAKAGE
(1) Start the engine and inspect for exhaust gas leakage.
11–25
