CAMSHAFT
CAMSHAFT GEAR
90 °
CAMSHAFT
BEARING CAP
CAMSHAFT
BEARING
ENGINE MECHANICAL (J05E)

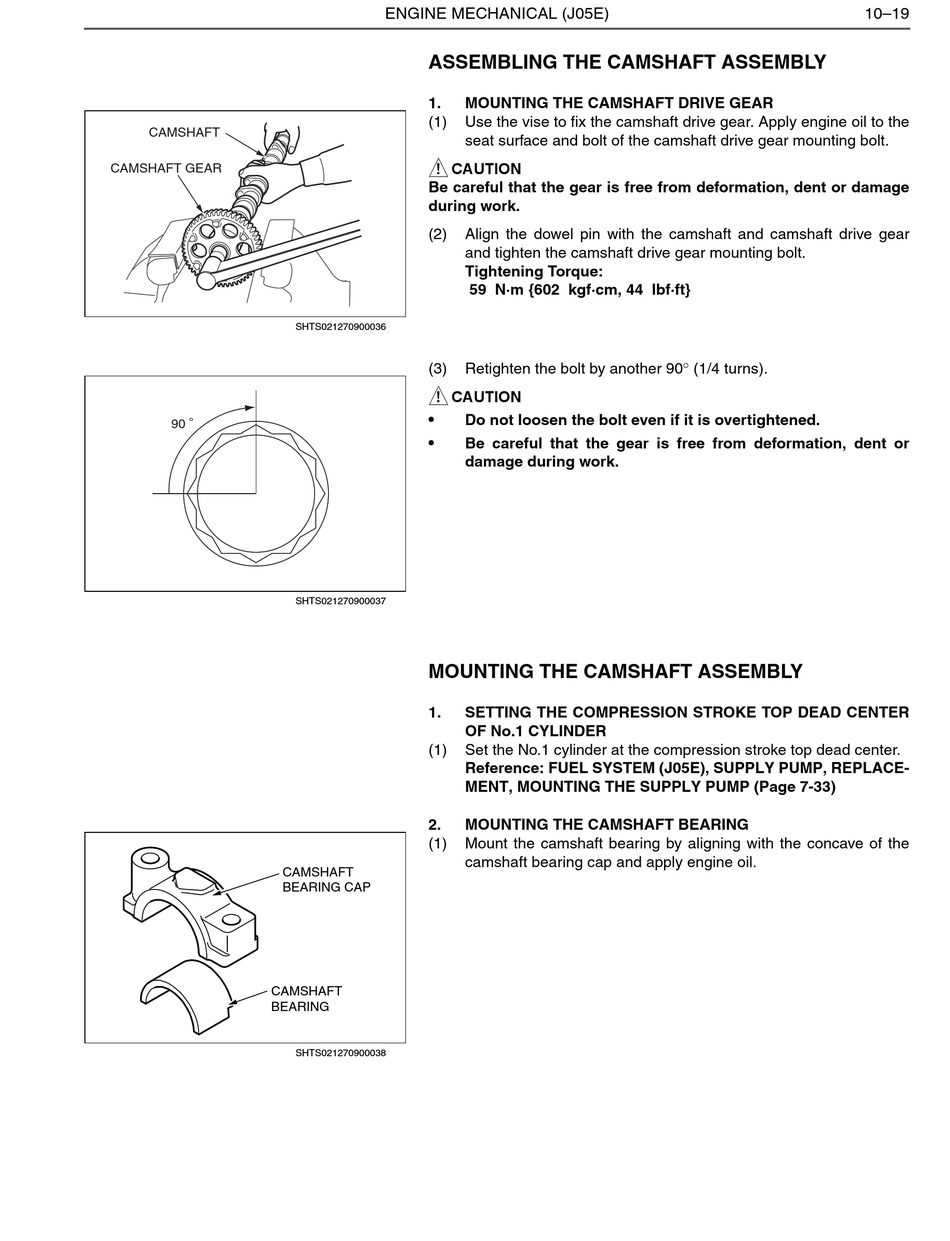

ASSEMBLING THE CAMSHAFT ASSEMBLY
1. MOUNTING THE CAMSHAFT DRIVE GEAR
(1) Use the vise to fix the camshaft drive gear. Apply engine oil to the
seat surface and bolt of the camshaft drive gear mounting bolt.
! CAUTION
Be careful that the gear is free from deformation, dent or damage
during work.
(2) Align the dowel pin with the camshaft and camshaft drive gear
and tighten the camshaft drive gear mounting bolt.
Tightening Torque:
59 N·m {602 kgf·cm, 44 lbf·ft}
SHTS021270900036
(3) Retighten the bolt by another 90 (1/4 turns).
! CAUTION
•
Do not loosen the bolt even if it is overtightened.
• Be careful that the gear is free from deformation, dent or
damage during work.
SHTS021270900037
MOUNTING THE CAMSHAFT ASSEMBLY
1. SETTING THE COMPRESSION STROKE TOP DEAD CENTER
OF No.1 CYLINDER
(1) Set the No.1 cylinder at the compression stroke top dead center.
Reference: FUEL SYSTEM (J05E), SUPPLY PUMP, REPLACE-
MENT, MOUNTING THE SUPPLY PUMP (Page 7-33)
2. MOUNTING THE CAMSHAFT BEARING
(1) Mount the camshaft bearing by aligning with the concave of the
camshaft bearing cap and apply engine oil.
SHTS021270900038
10–19
