Replacement - Hino S5-LJ05E04A Workshop Manual

SINGLE CAB
COVER
CREW CAB
COVER
SINGLE CAB
AIR CLEANER
ELEMENT
CREW CAB
AIR CLEANER
ELEMENT
INTAKE (J05E)

REPLACEMENT

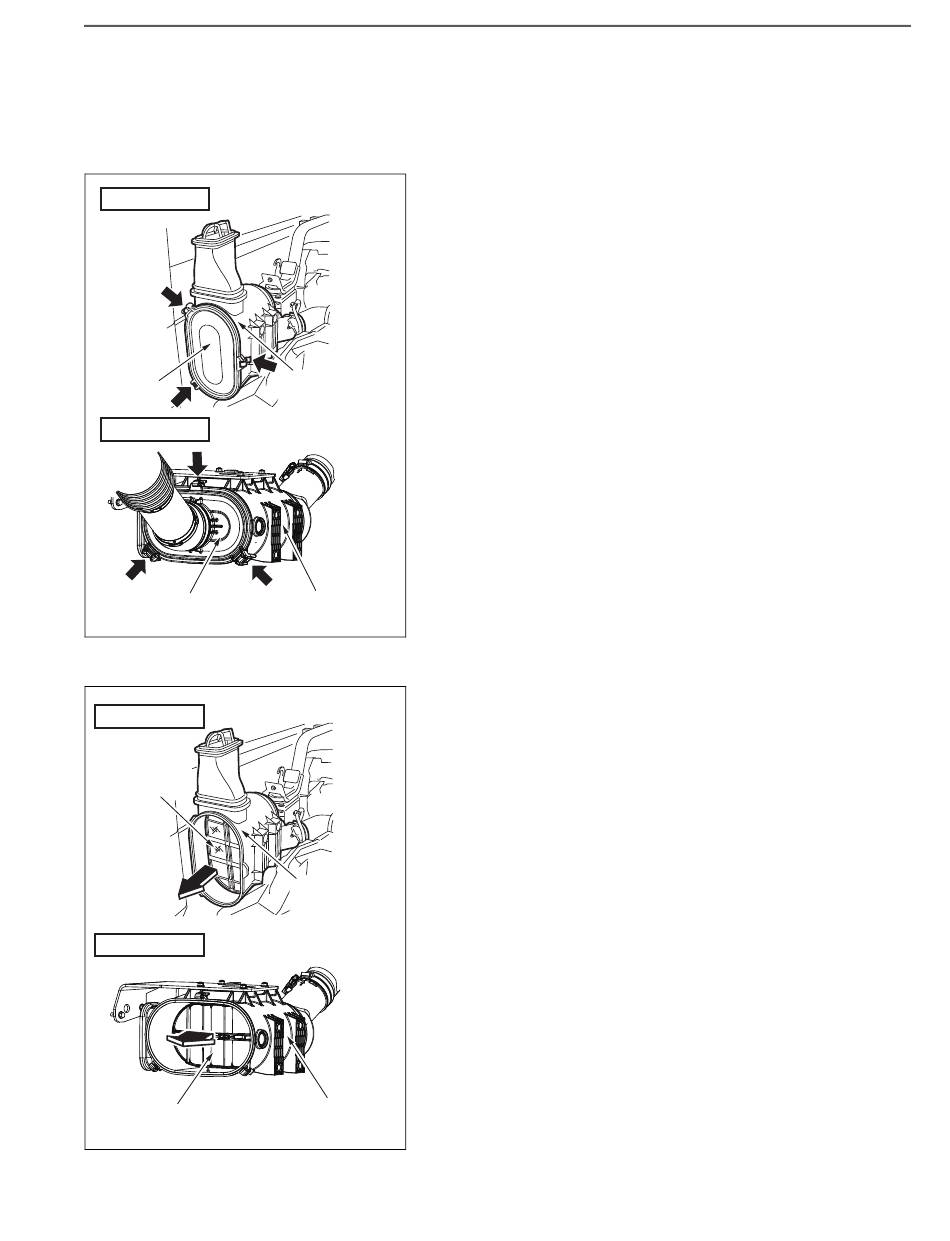

REMOVING THE AIR CLEANER ELEMENT AND
BODY ASSEMBLY
1. REMOVING THE AIR CLEANER ELEMENT
(1) Remove the clamps (3 pcs.) and remove the cover from the air
cleaner body assembly.
NOTICE
When removing the air cleaner of the crew cab model, pull off the
cover toward the vehicle rear side and press the cover to the
inboard side.
AIR CLEANER
CASE
AIR CLEANER
CASE
SHTS021270800029
(2) Hold the grip at the center of the air cleaner element, and remove
the air cleaner element from the air cleaner body assembly.
NOTICE
To remove the air cleaner element of the crew cab model, draw it
out to the vehicle rear side, rotate it 90° to the right side of the
vehicle, and pull it off toward the vehicle lower side.
AIR CLEANER
CASE
AIR CLEANER
CASE
SHTS021270800030
9–21
