Hino S5-LJ05E04A Workshop Manual page 233

EGR PIPE
BRACKET
EMISSION CONTROL (J05E)
4.
(1)
SHTS021270700013
(2)
BRACKET
(3)
ENGINE HARNESS
SHTS021270700014
5.

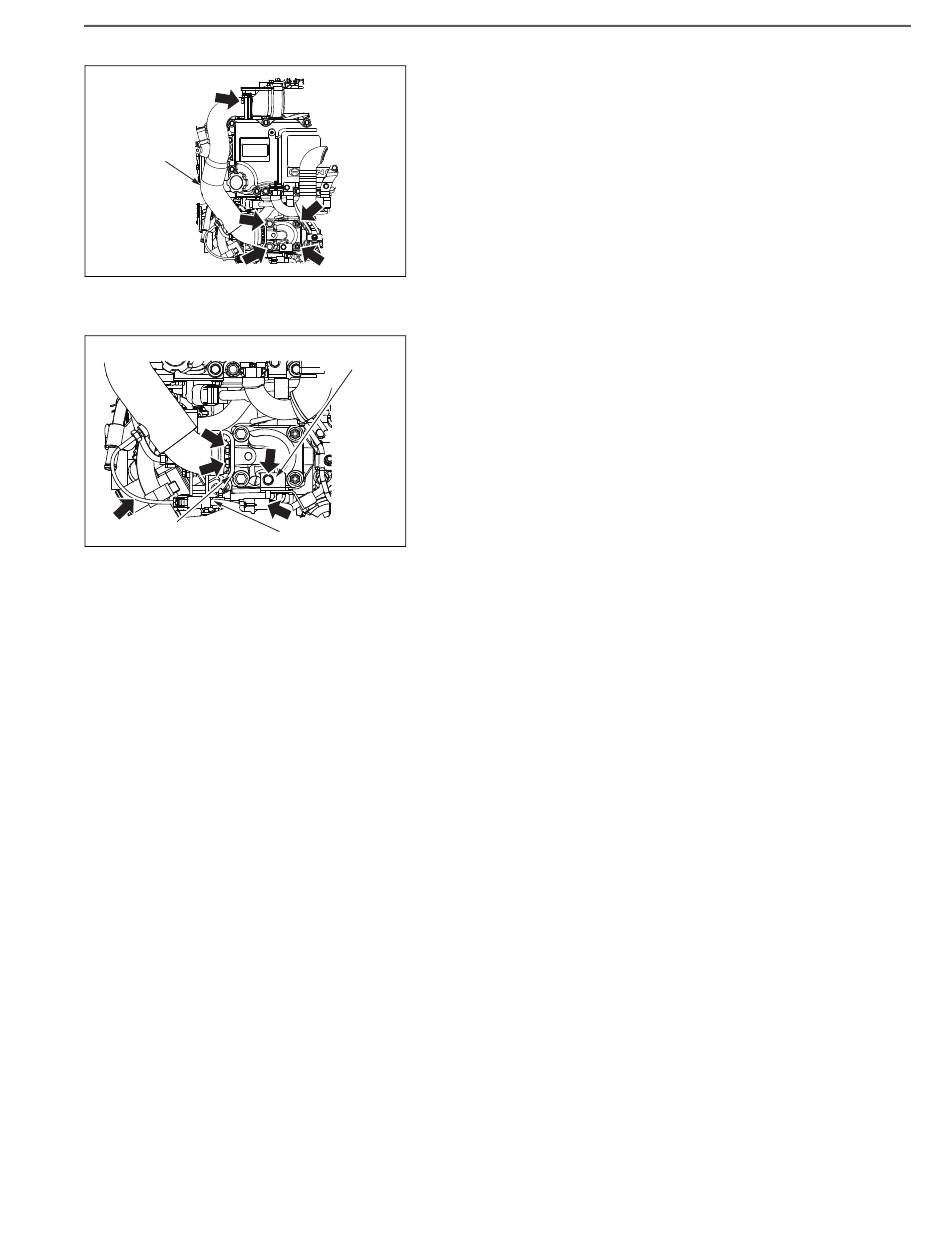

MOUNTING THE EGR PIPE
Replace with a new gasket and mount the EGR pipe with 4 bolts
and 2 nuts.
Tightening Torque:
55 N·m {561 kgf·cm, 41 lbf·ft}
Mount the 2 brackets to the EGR pipe with 3 bolts and a nut.
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
Mount the engine harness to 2 brackets.
ADDING THE COOLANT
Reference: COOLING (J05E), RADIATOR, REPLACEMENT,
MOUNTING THE RADIATOR (Page 12-9)
8–9
