Hino S5-LJ05E04A Workshop Manual page 594

13–20
SAFETY VALVE
VALVE
SPRING
SEAT 2
SEAT 1
COTTER PIN
DRIVE GEAR
LUBRICATION (J05E)

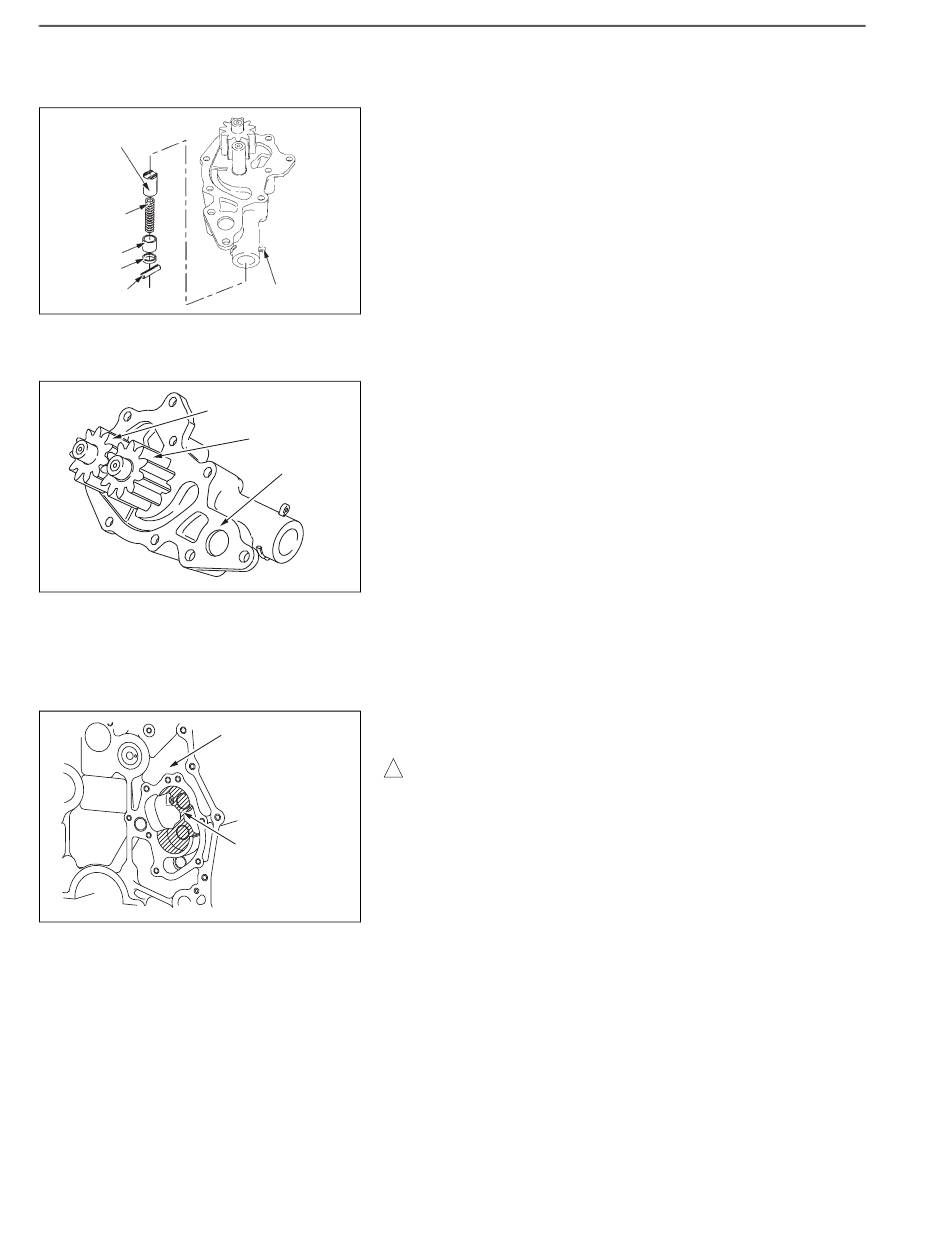

ASSEMBLING THE OIL PUMP
1.
(1)
COTTER PIN
SHTS021271200044
2.
(1)
DRIVEN GEAR
OIL PUMP
SHTS021271200045
MOUNTING THE OIL PUMP
1.
(1)
CYLINDER BLOCK
! CAUTION
Without engine oil, defective oil suction may occur when the
engine is initially started, which results in seizure and abnormal
wear.
APPLY ENGINE
OIL TO THE
SHADED AREA
SHTS021271200046
MOUNTING THE SAFETY VALVE
Insert the safety valve, valve spring, seat 2, and then seat 1 to the
oil pump, and fix them with a new cotter pin.
MOUNTING THE DRIVEN GEAR
Mount the driven gear to the oil pump.
MOUNTING THE OIL PUMP
Apply engine oil to the pump case and bearing of the cylinder
block.
