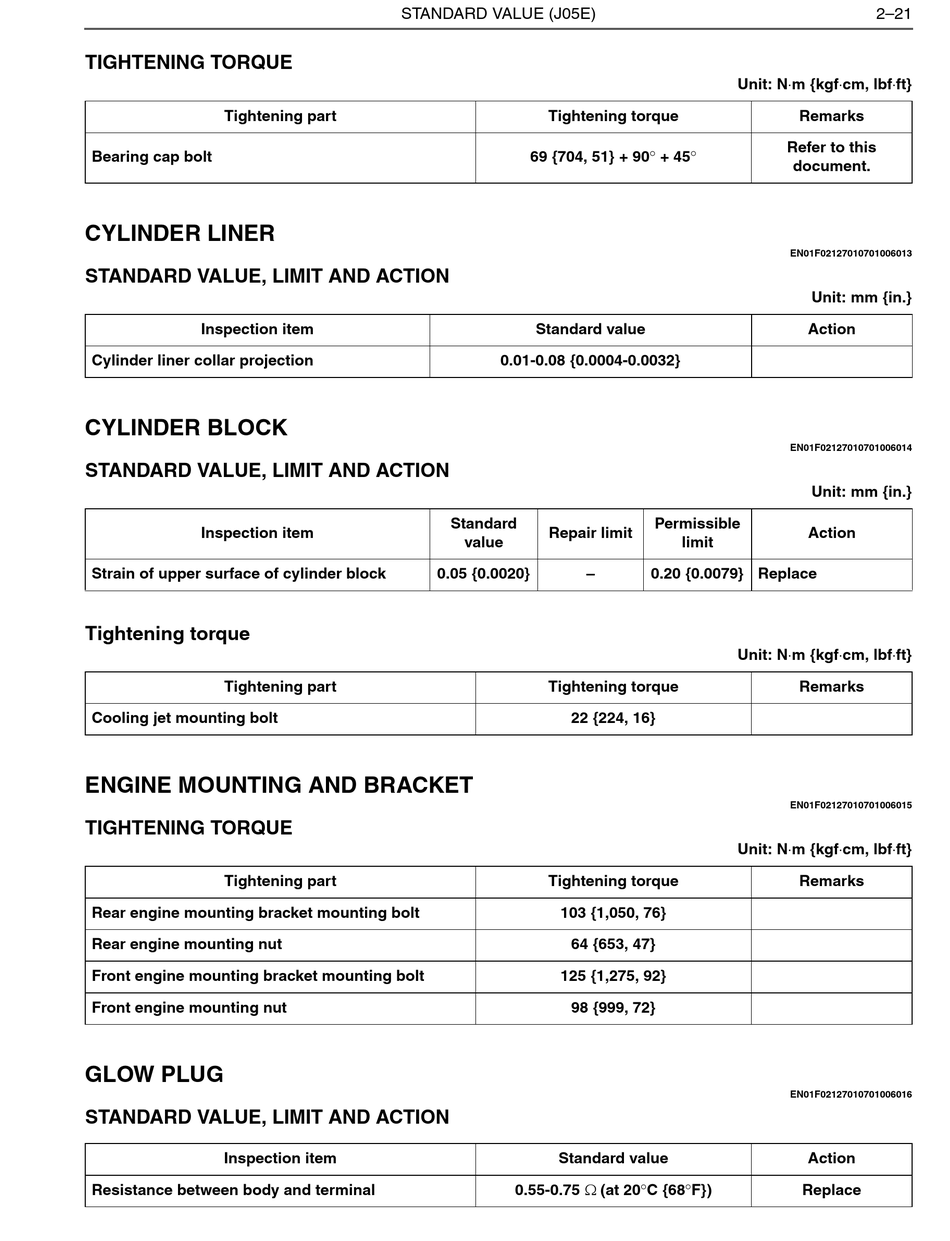

Cylinder Liner; Cylinder Block; Engine Mounting And Bracket; Glow Plug - Hino S5-LJ05E04A Workshop Manual

TIGHTENING TORQUE
Tightening part
Bearing cap bolt

CYLINDER LINER

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Cylinder liner collar projection

CYLINDER BLOCK

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Strain of upper surface of cylinder block
Tightening torque
Tightening part
Cooling jet mounting bolt

ENGINE MOUNTING AND BRACKET

TIGHTENING TORQUE
Tightening part
Rear engine mounting bracket mounting bolt
Rear engine mounting nut
Front engine mounting bracket mounting bolt
Front engine mounting nut

GLOW PLUG

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Resistance between body and terminal
STANDARD VALUE (J05E)
Tightening torque
69 {704, 51} + 90 + 45
Standard value
0.01-0.08 {0.0004-0.0032}
Standard
Repair limit
value
0.05 {0.0020}
Tightening torque
22 {224, 16}
Tightening torque
103 {1,050, 76}
64 {653, 47}
125 {1,275, 92}
98 {999, 72}
Standard value
0.55-0.75  (at 20C {68F})
Unit: Nm {kgfcm, lbfft}
Permissible
limit
–
0.20 {0.0079} Replace
Unit: Nm {kgfcm, lbfft}
Unit: Nm {kgfcm, lbfft}
2–21
Remarks
Refer to this
document.
EN01F02127010701006013
Unit: mm {in.}
Action
EN01F02127010701006014
Unit: mm {in.}
Action
Remarks
EN01F02127010701006015
Remarks
EN01F02127010701006016
Action
Replace
