Hino S5-LJ05E04A Workshop Manual page 414

11–6

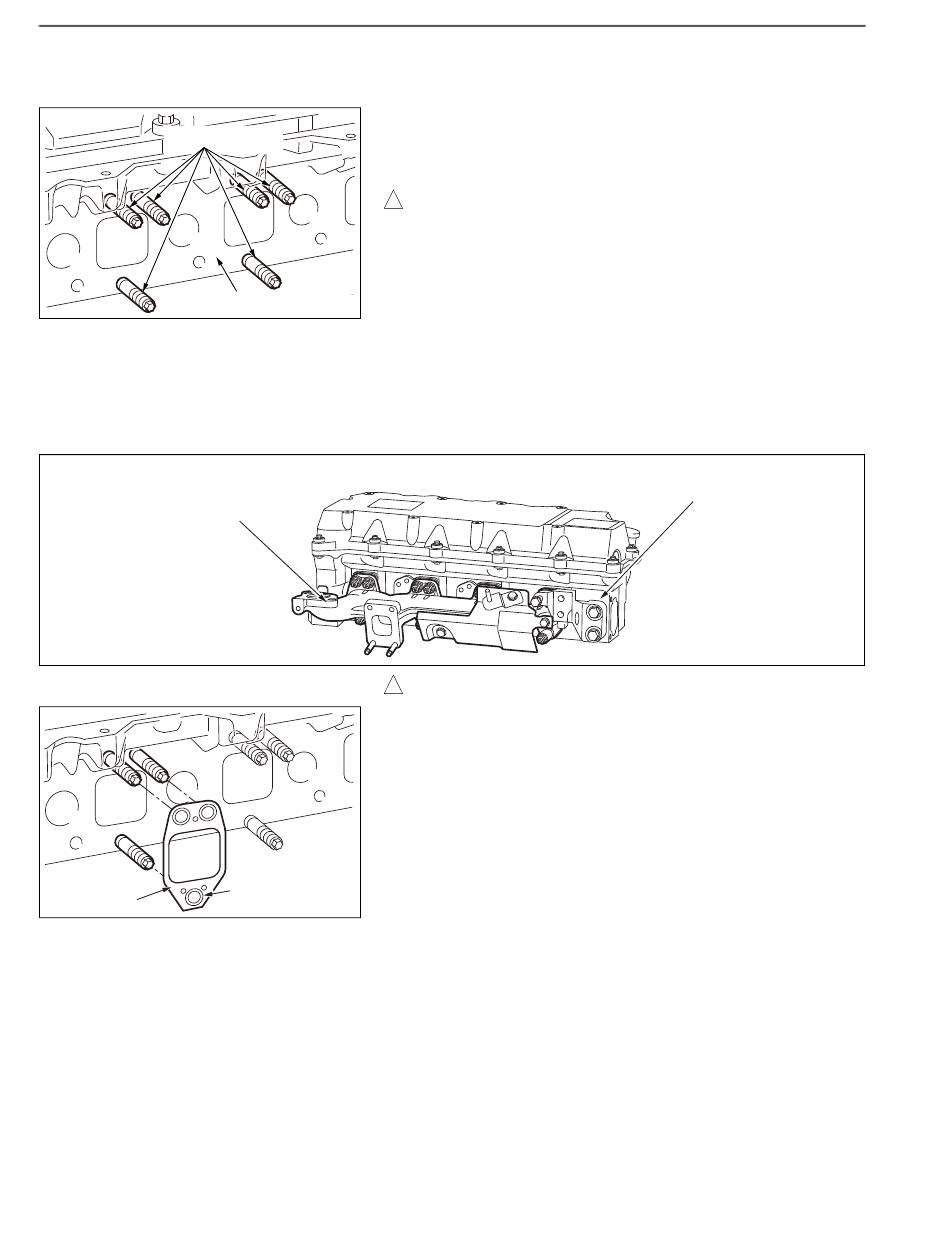

STUD BOLT
EXHAUST
MANIFOLD
GASKET
EXHAUST (J05E)
MOUNTING THE EXHAUST MANIFOLD
1.
(1)
! CAUTION
Note that overtightening with excessive torque may cause cracks
in the cylinder head.
CYLINDER HEAD
SHTS021271000005
2.
(1)
! CAUTION
Mount the gasket with the coating surface (black surface) facing
to the exhaust manifold side.
BLACK SURFACE
SHTS021271000007
MOUNTING STUD BOLTS
Use the torque socket to tighten with a new stud bolt.
Tightening Torque:
30 N·m {305 kgf·cm, 22.1 lbf·ft}
MOUNTING THE EXHAUST MANIFOLD
Replace with 4 new gaskets and fit the exhaust manifold to the
cylinder head mounting position.
CYLINDER
HEAD
SHTS021271000006
