8–4
PIPE PART
EMISSION CONTROL (J05E)
4. DISCONNECTING THE COOLANT HOSE
(1) Unfasten the 3 clamps to disconnect 2 coolant hoses from the
EGR cooler and coolant pipe.
(2) Unfasten the 2 clamps to disconnect the coolant hose from the
EGR cooler and thermostat case.

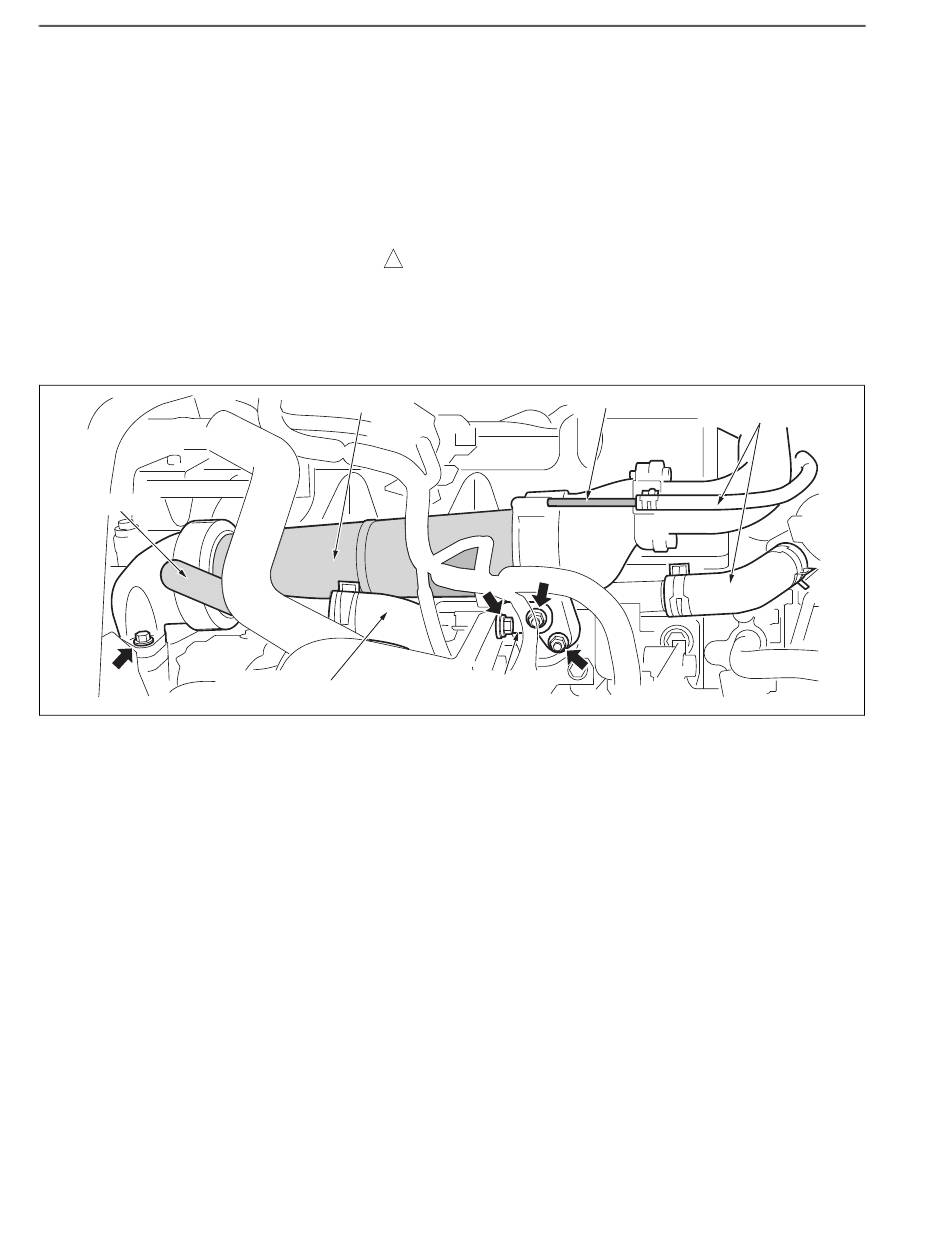

5. REMOVING THE EGR COOLER
(1) Unfasten the 2 bolts to remove the bracket from the EGR cooler.
(2) Unfasten the 3 bolts to remove the EGR cooler and gasket from
the exhaust manifold.
! CAUTION
•
Do not hold the pipe and shell while working to avoid defects
such as dent and water leakage.
• Do not touch the EGR cooler with bare hands while it is hot
immediately after running.
SHELL
COOLANT HOSE
PIPE PART
BRACKET
COOLANT HOSE
SHTS021270700004
