OIL PRESSURE
SWITCH
OIL COOLER CASE
GASKET
OIL PRESSURE
SWITCH
LUBRICATION (J05E)

REPLACEMENT

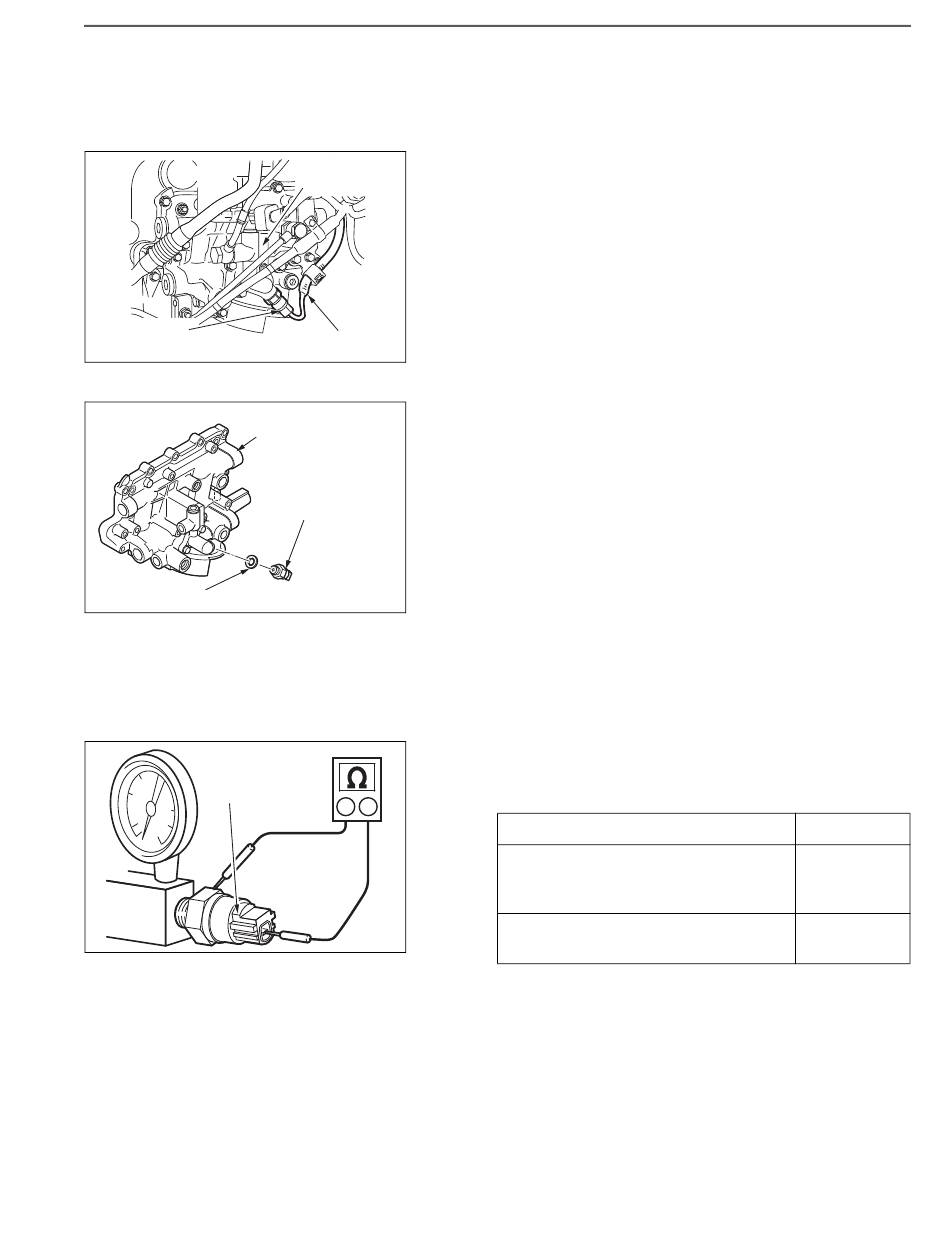

REMOVING THE OIL PRESSURE SWITCH
1.
(1)
OIL COOLER
CASE
HARNESS
SHTS021271200061
(2)
NOTICE
Prepare the reservoir and clean clothes to collect dripping engine
oil when removing the oil pressure switch.
OIL PRESSURE
SWITCH
SHTS021271200062
SINGLE UNIT INSPECTION
1.
(1)
SHTS021271200063
REMOVING THE OIL PRESSURE SWITCH
Disconnect the connector from the oil pressure switch.
Remove the oil pressure switch and gasket from the oil cooler
case.
INSPECTING THE OIL PRESSURE SWITCH
Apply air or oil pressure to measure the continuity between the
terminal and body using the circuit tester. If found defective,
replace it.
Pressure
When no load is applied or the
pressure is less than 39.2 kPa
2
{0.4 kgf/cm , 5.7 lbf/in.
When pressure is 58.8kPa
2
{0.6 kgf/cm , 8.5 lbf/in.
EN01F02114120402016002
Continuity
Yes
2
}
No
2
} or more
13–31
