OIL COOLER CASE
GASKET
OIL COOLER CASE
SAFETY VALVE
O-RING
GASKET
OIL COOLER
CASE
LUBRICATION (J05E)

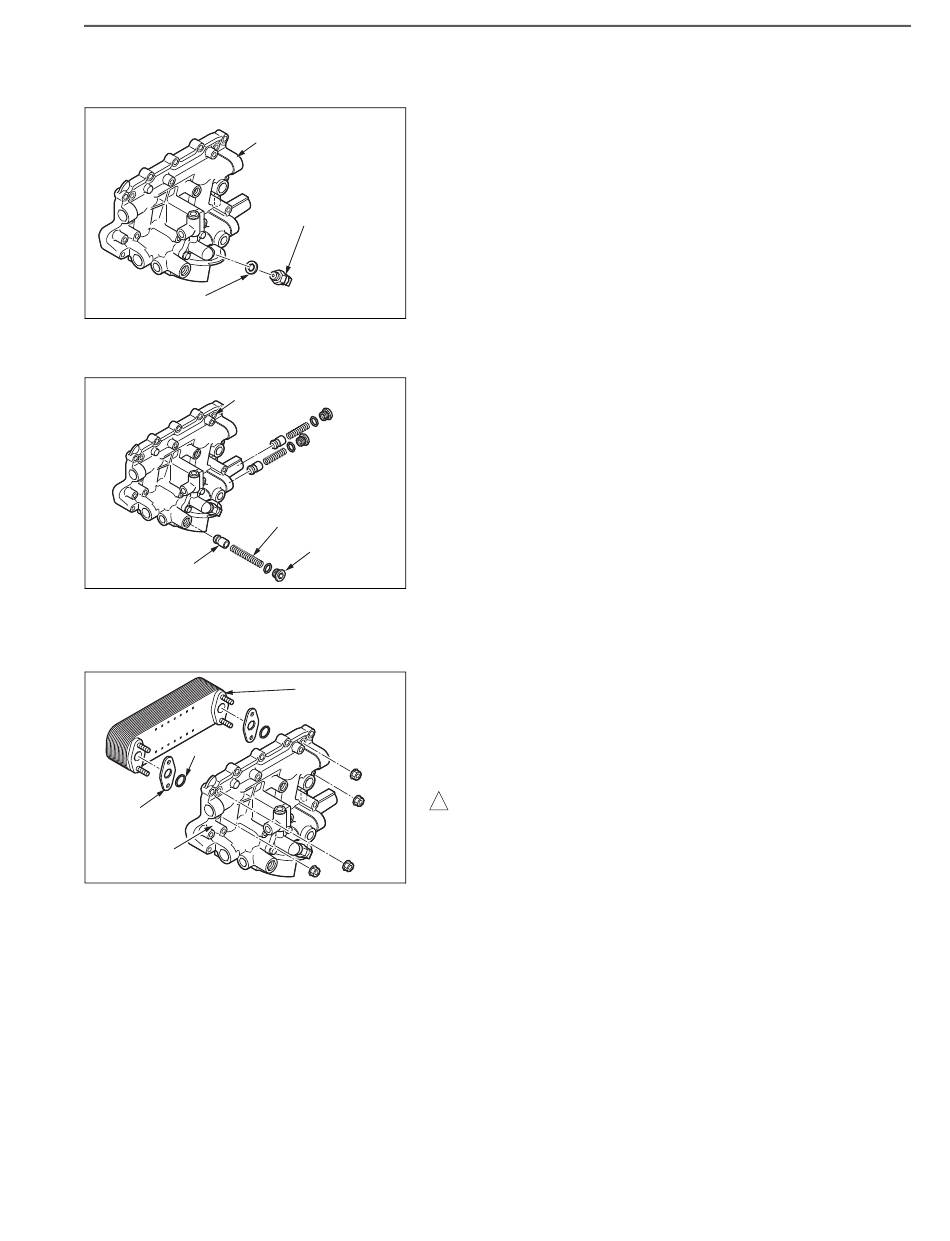

ASSEMBLING THE OIL COOLER ASSEMBLY
1.
(1)
(2)
OIL PRESSURE
SWITCH
SHTS021271200019
2.
(1)
(2)
VALVE SPRING
PLUG
SHTS021271200020
3.
(1)
OIL COOLER
ELEMENT
! CAUTION
Use care not to damage the oil cooler element when handling.
SHTS021271200021
MOUNTING THE OIL PRESSURE SWITCH
Apply liquid gasket (ThreeBond TB1211: White or equivalent) to
the sealing surface of a new gasket.
Mount the gasket and oil pressure switch to the oil cooler case.
Tightening Torque:
29 N·m {296 kgf·cm, 21 lbf·ft}
MOUNTING THE SAFETY VALVE
Mount the new O-ring to each plug.
Insert the safety valve and valve spring to the oil cooler case and
mount each plug.
Tightening Torque:
24.5-34.3 N·m {250-349 kgf·cm, 19-25 lbf·ft}
MOUNTING THE OIL COOLER ELEMENT
Replace with the new gaskets (2 pcs.) and O-rings (2 pcs.) and
mount the oil cooler element to the oil cooler case with nuts (4
pcs.).
Tightening Torque:
19.6-29.4 N·m {200-299 kgf·cm, 15-21 lbf·ft}
