ENGINE CONTROL (J05E)
ACCELERATOR PEDAL
ASSEMBLY
SHTS021270500033
ACCELERATOR PEDAL
ASSEMBLY
SHTS021270500034

REPLACEMENT

REMOVING THE
ASSEMBLY

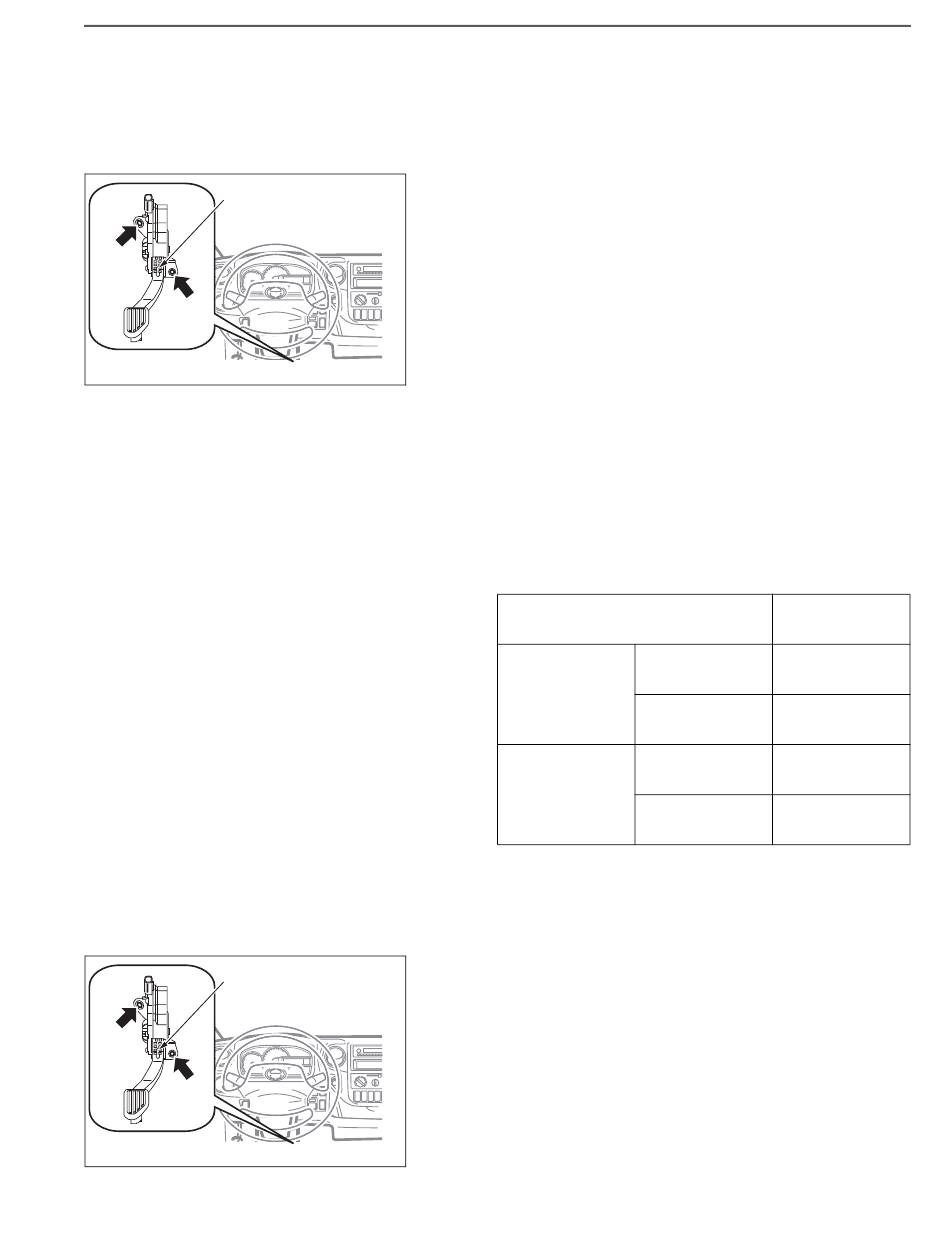

1. REMOVING THE ACCELERATOR PEDAL UNIT ASSEMBLY
(1) Disconnect the connector connected to the accelerator pedal
assembly.
(2) Unfasten the 2 nuts and remove the accelerator pedal assembly.
SINGLE UNIT INSPECTION
1. INSPECTION OF ACCELERATOR PEDAL ASSEMBLY
(1) Use the HINO-DX, inspect the output voltage.
(Refer to the HINO-DX user's manual.)
(2) If the output voltage does not meet the standard, replace the
accelerator pedal assembly.
Measured item
Accelerator
pedal position
sensor 1
Accelerator
pedal position
sensor 2
MOUNTING THE ACCELERATOR PEDAL ASSEMBLY
1. MOUNTING THE ACCELERATOR PEDAL ASSEMBLY
(1) Mount the accelerator pedal assembly with 2 nuts.
Tightening Torque:
5.5 N·m {56 kgf·cm, 4 lbf·ft}
(2) Connect the connector of the accelerator pedal assembly.
EN01F02127050402003002
ACCELERATOR PEDAL
Standard value
Accelerator
fully-closed
Accelerator fully
open
Accelerator
fully-closed
Accelerator fully
open
6–19
UNIT
(V)
0.6-1.0
2.8-3.6
1.4-1.8
3.6-4.4
