Overhaul - Hino S5-LJ05E04A Workshop Manual

SCREW
SCREW
THROUGH BOLT
STARTING/CHARGING (J05E)

OVERHAUL

IMPORTANT POINTS - MOUNTING
1. MOUNTING THE V-BELT
Reference:
REPLACEMENT, MOUNTING THE V-BELT (Page 16-9)
IMPORTANT POINTS - DISASSEMBLY

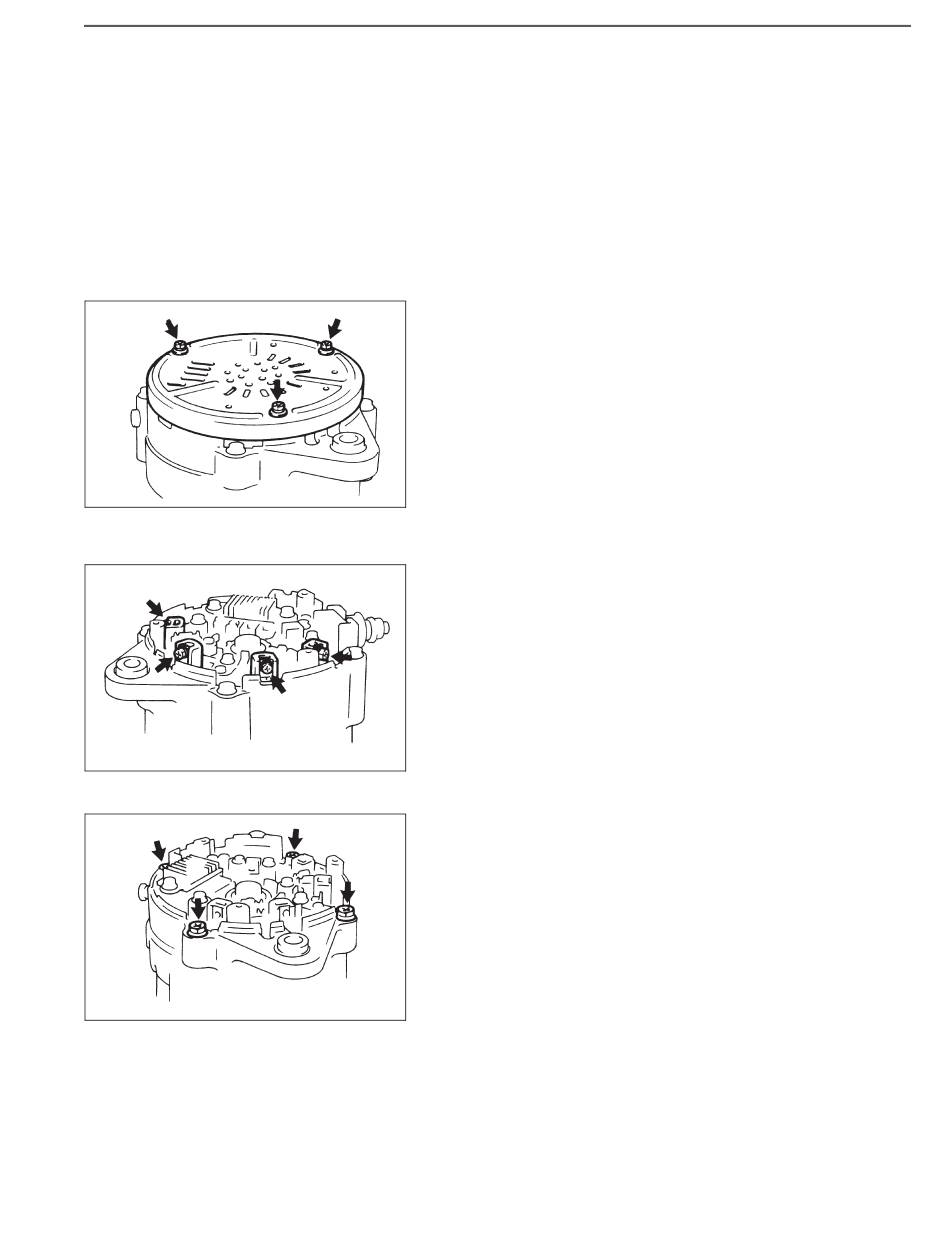

1. REMOVING THE REAR COVER
(1) Remove the 3 screws to remove the rear cover.
SHTS021271500030
2. SEPARATE THE FRONT AND REAR PORTIONS
(1) Remove the 4 screws and separate the stator outlet terminal and
the rectifier.
SHTS021271500031
(2) Remove the 4 through bolts.
SHTS021271500032
STARTING/CHARGING
16–13
EN01F02127150407028002
(J05E), V-BELT,
