10–6

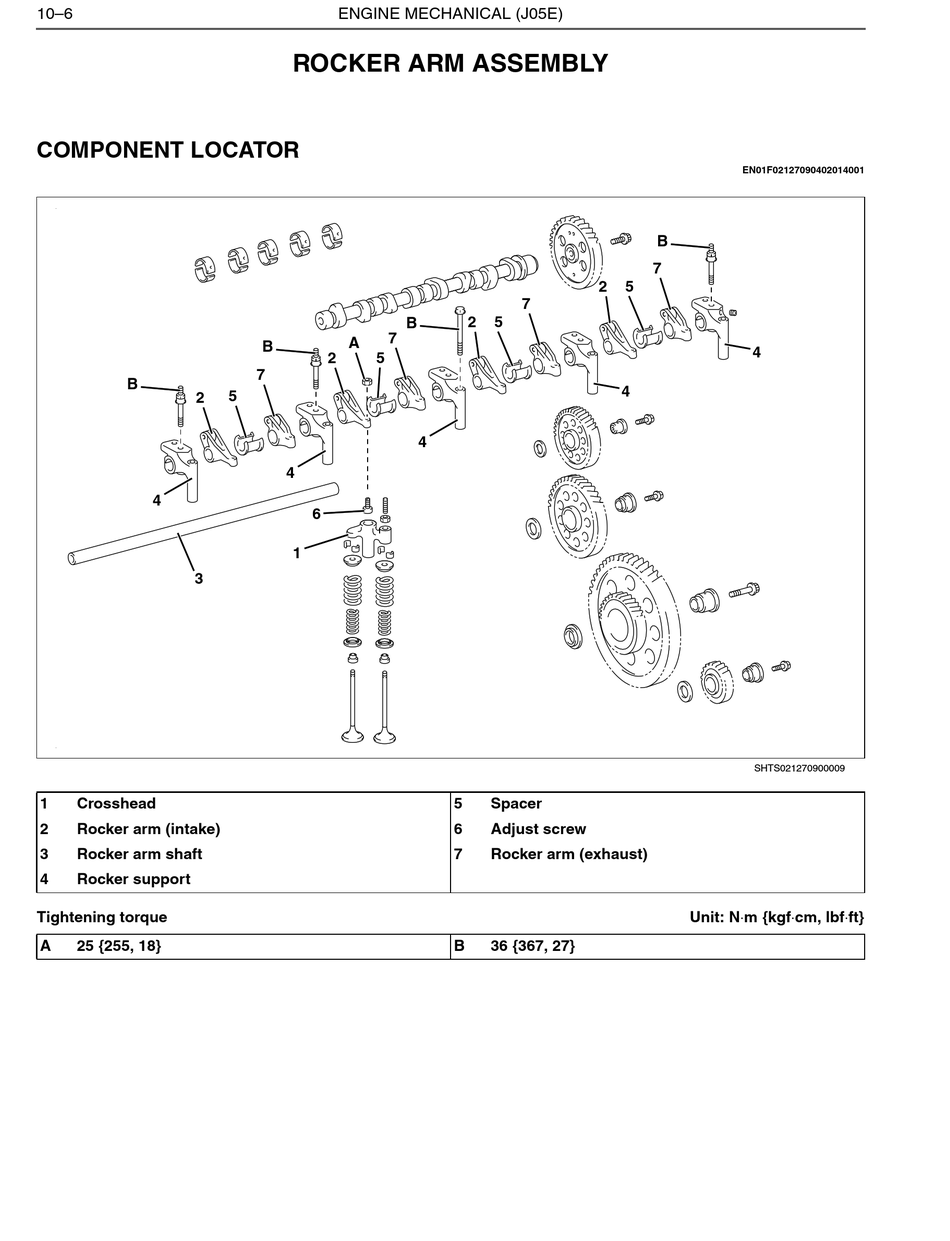

COMPONENT LOCATOR

B
2
4
3
1 Crosshead
2 Rocker arm (intake)
3 Rocker arm shaft
4 Rocker support
Tightening torque
A 25 {255, 18}
ENGINE MECHANICAL (J05E)

ROCKER ARM ASSEMBLY

B
7
A
B
2 5
7
5
4
6
1
7
2 5
4
5 Spacer
6 Adjust screw
7 Rocker arm (exhaust)
B 36 {367, 27}
EN01F02127090402014001
B
7
2 5
4
4
SHTS021270900009
Unit: Nm {kgfcm, lbfft}
