Hino S5-LJ05E04A Workshop Manual page 198

7–38
INCORRECT
HEAVY
GOODS
FUEL SYSTEM (J05E)

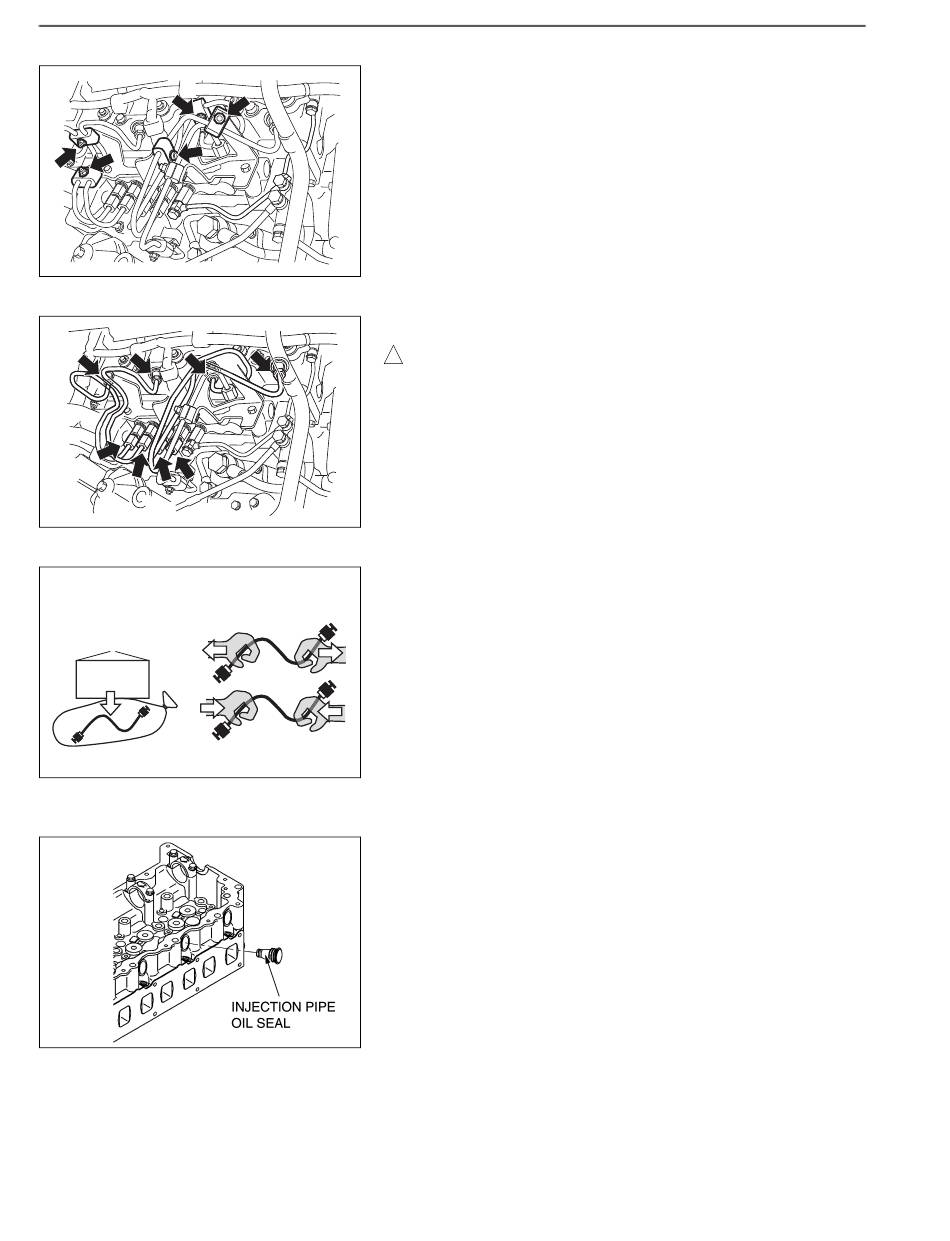

4. REMOVING THE INJECTION PIPE
(1) Unfasten 5 nuts to remove 5 clips.
SHTS021270600087
(2) Loosen the nuts securing the injection pipes (4 pcs.), and remove
them from the injector and the common rail.
! CAUTION
•
Do not reuse the injection pipes.
SHTS021270600088
• Be careful when handling the pipe because the fuel pipe may
be deformed.
NOTICE
INCORRECT
Prepare the reservoir and a waste cloth because fuel spills when
removing the injection pipes.
SHTS021270600089
5. REMOVING THE INJECTOR
(1) Remove the 4 injection pipe oil seals from the cylinder head.
SHTS021270600090
