8–8
EGR VALVE
LINK
GASKET
PIPE PART
EMISSION CONTROL (J05E)

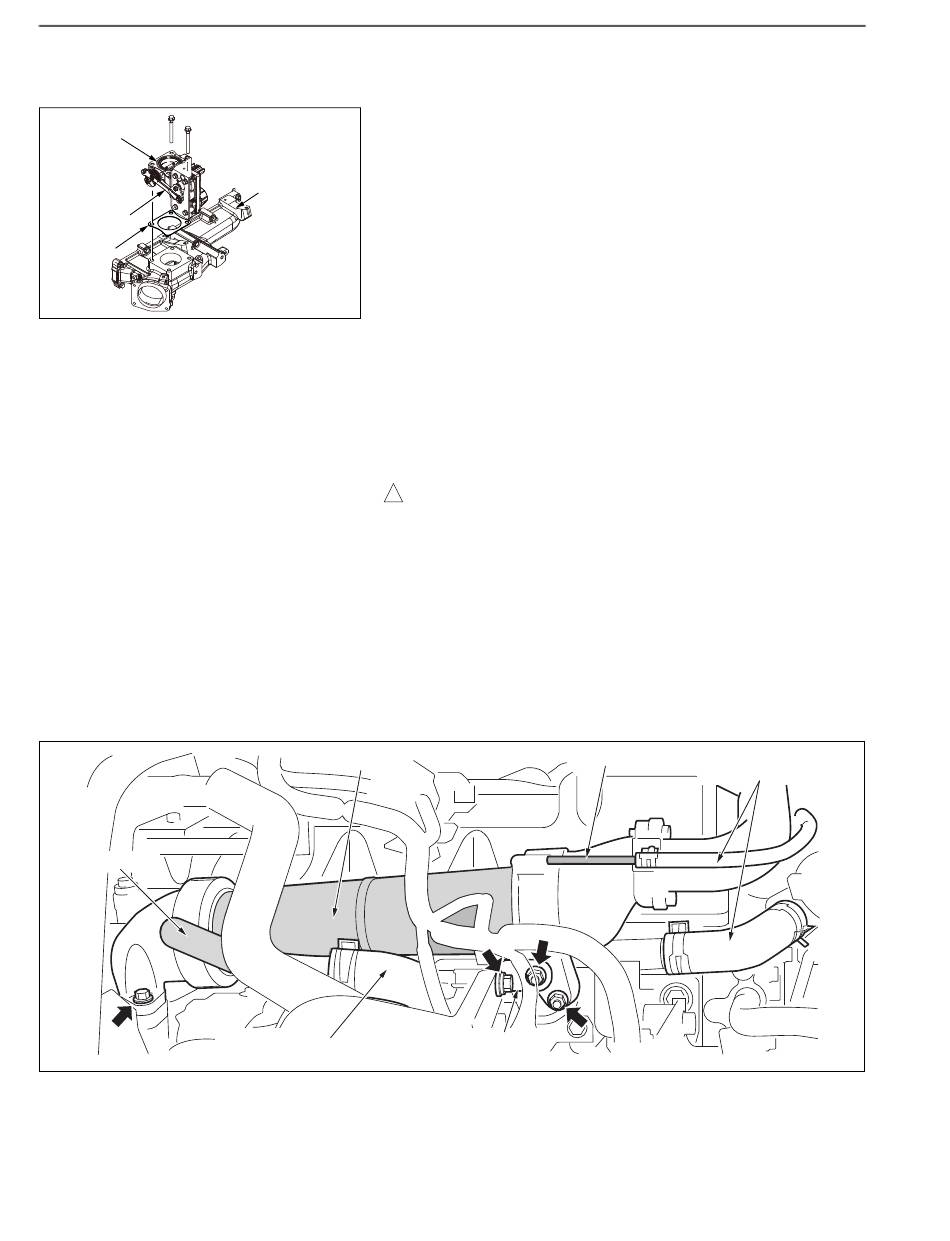

MOUNTING THE EGR VALVE & COOLER
1. MOUNTING THE EGR VALVE
(1) Replace with a new gasket and temporarily attach the EGR valve
to the intake manifold.
(2) Connect the EGR valve to the connector.
INTAKE
MANIFOLD
SHTS021270700011
2. MOUNTING THE EGR COOLER
(1) Replace with a new gasket and mount the EGR cooler to the
exhaust manifold with 3 bolts.
Tightening Torque:
68.5 N·m {699 kgf·cm, 51 lbf·ft}
! CAUTION
Do not hold the pipe and shell while working to avoid defects such
as dent and water leakage.
(2) Mount the bracket to the EGR cooler with 2 bolts.
Tightening Torque:
28.5 N·m {291 kgf·cm, 21 lbf·ft}
3. CONNECTING THE COOLANT HOSE
(1) Connect the coolant hose to the EGR cooler and thermostat case
with 2 clamps.
(2) Connect the coolant hose to the EGR cooler and coolant pipe with
3 clamps.
SHELL
COOLANT HOSE
PIPE PART
BRACKET
COOLANT HOSE
SHTS021270700012
