7–18
CENTER BOLT
O-RINGS
CAP
ALIGNMENT
MARK
FUEL SYSTEM (J05E)

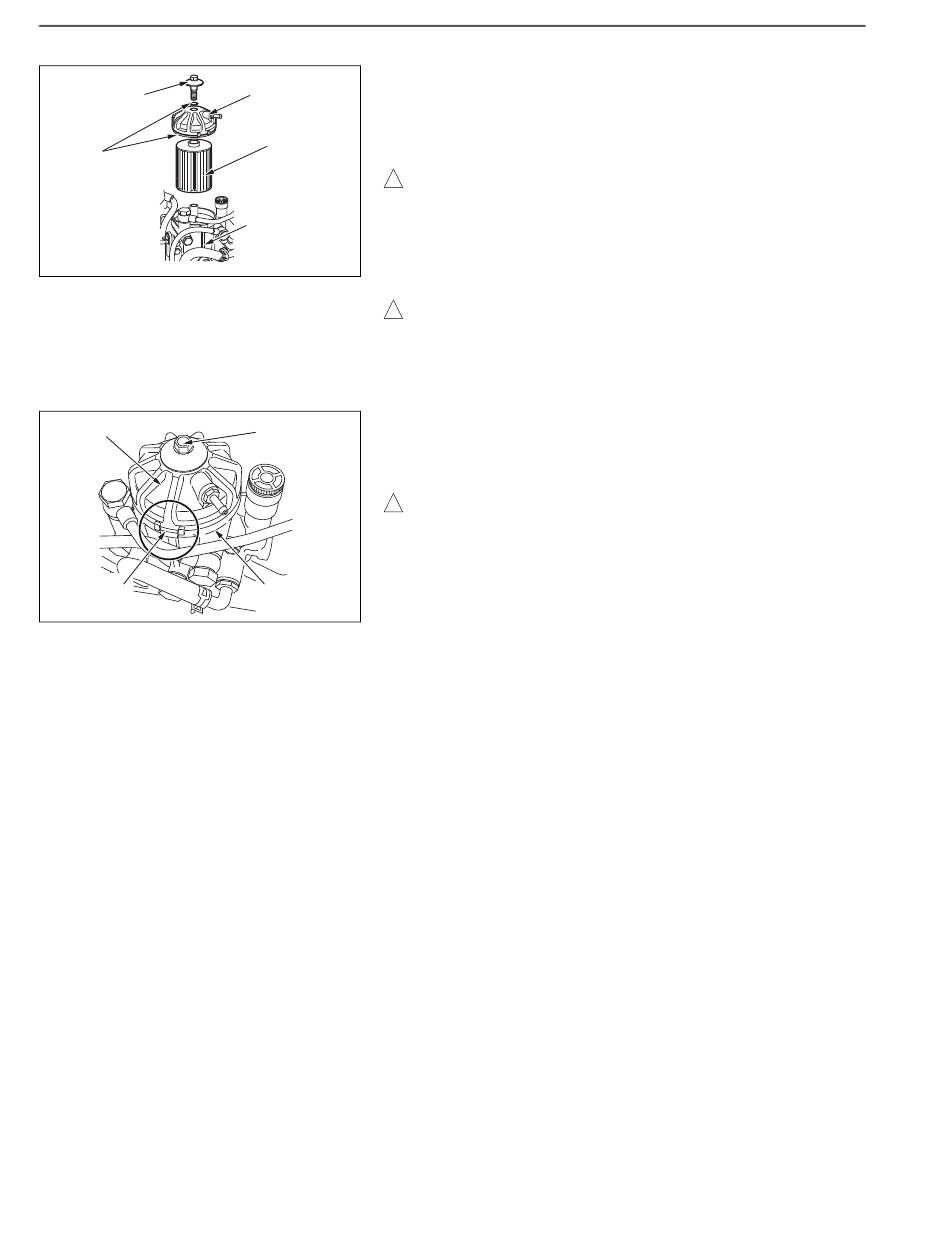

4. MOUNTING THE ELEMENT
(1) Replace the O-rings of the air bleeding plug and drain plug with
new ones.
CAP
(2) Clean the element setting face inside the fuel filter case and
inside the cap.
ELEMENT
(3) Insert a new element into the fuel filter case.
! CAUTION
If the element is replaced with the fuel remained in the fuel filter
case, unfiltered fuel will remain in the fuel filter case. Check for
FUEL FILTER
residual fuel.
CASE
(4) Apply fuel to new O-rings, and set one in the groove of the fuel fil-
ter case and the other on the seating face of the center bolt.
SHTS021270600033
! CAUTION
• Do not reuse the element.
•
Replace the O-ring with a new one included in the element
kit.
(5) Set the cap on the fuel filter case with the alignment marks
aligned with each other, and tighten the center bolt.
CENTER BOLT
Tightening Torque:
23.1-32.9 N·m {236-335 kgf·cm, 18-24 lbf·ft}
! CAUTION
•
Be careful not to damage the O-ring by twisting it.
•
Check that the O-ring is in correct contact with the sealing
surface.
FUEL FILTER
•
Align the alignment mark on the cap with that on the fuel fil-
CASE
ter case.
SHTS021270600034
5. AIR BLEEDING OF FUEL SYSTEM
Reference: FUEL SYSTEM (J05E), FUEL FILTER AND CASE
(ENGINE SIDE), REPLACEMENT, AIR BLEEDING OF FUEL
SYSTEM (Page 7-16)
