17–2

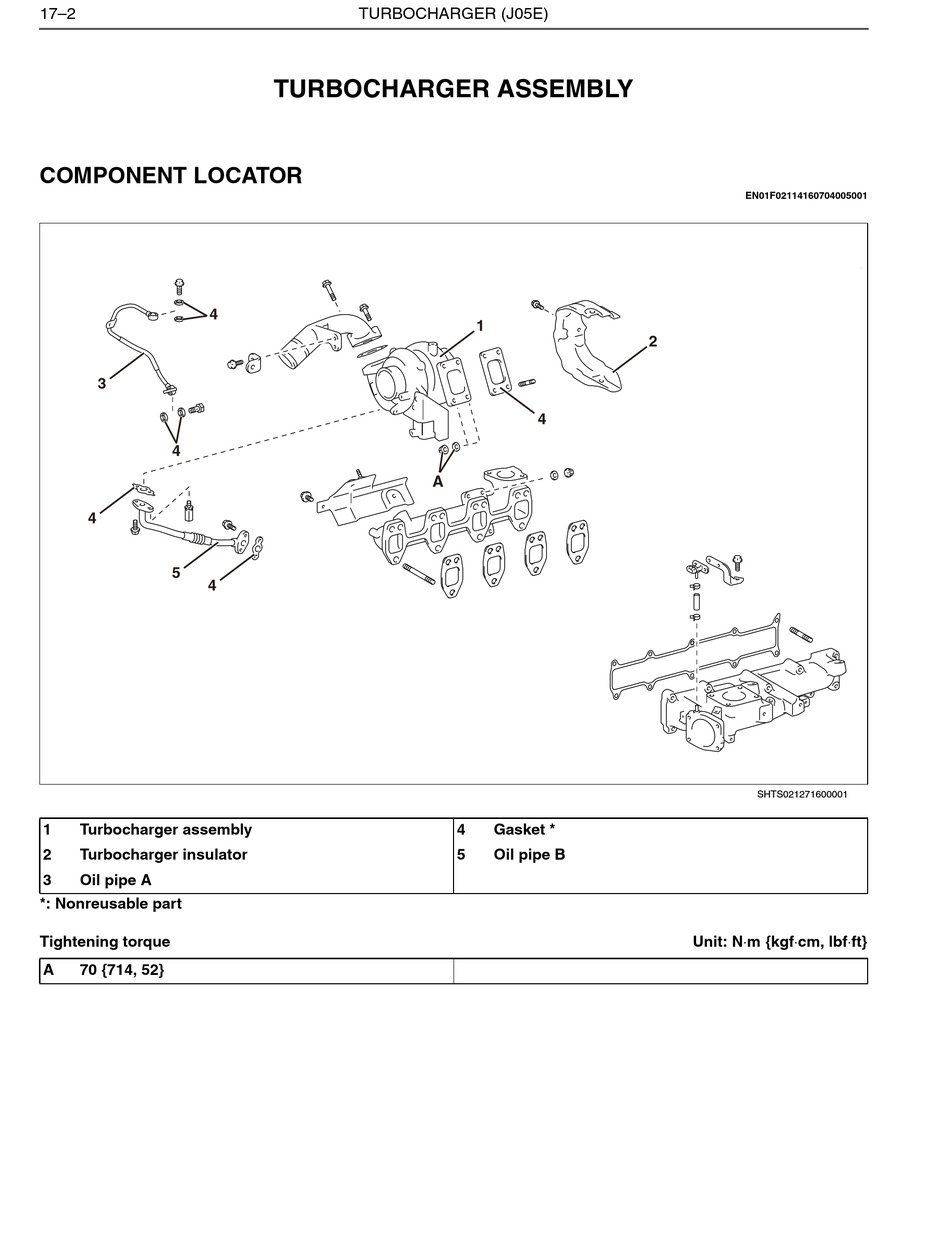

COMPONENT LOCATOR

4
3
4
4
5
4
1

Turbocharger assembly

2 Turbocharger insulator
3 Oil pipe A
*: Nonreusable part
Tightening torque
A 70 {714, 52}
TURBOCHARGER (J05E)
MAINTENANCE POINTS ITEM
TURBOCHARGER ASSEMBLY
A
1
4
4 Gasket *
5 Oil pipe B
EN01F02114160704005001
2
SHTS021271600001
Unit: Nm {kgfcm, lbfft}
