2–14

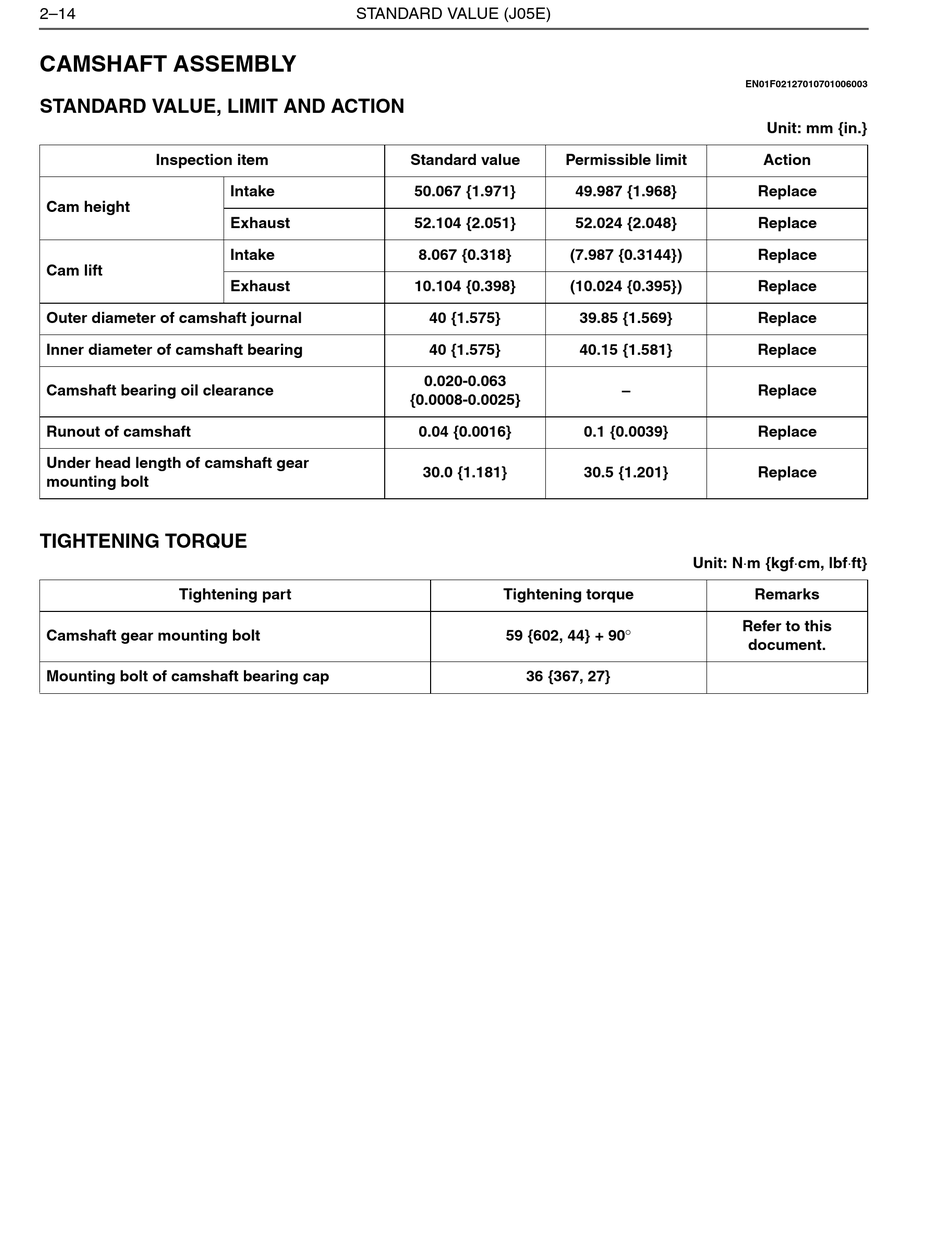

CAMSHAFT ASSEMBLY

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Cam height
Cam lift
Outer diameter of camshaft journal
Inner diameter of camshaft bearing
Camshaft bearing oil clearance
Runout of camshaft
Under head length of camshaft gear
mounting bolt
TIGHTENING TORQUE
Tightening part
Camshaft gear mounting bolt
Mounting bolt of camshaft bearing cap
STANDARD VALUE (J05E)
Standard value
Intake
Exhaust
Intake
Exhaust
{0.0008-0.0025}
Permissible limit
50.067 {1.971} 49.987 {1.968}
52.104 {2.051} 52.024 {2.048}
8.067 {0.318} (7.987 {0.3144})
10.104 {0.398} (10.024 {0.395})
40 {1.575} 39.85 {1.569}
40 {1.575} 40.15 {1.581}
0.020-0.063
0.04 {0.0016} 0.1 {0.0039}
30.0 {1.181} 30.5 {1.201}
Tightening torque
59 {602, 44} + 90
36 {367, 27}
EN01F02127010701006003
Unit: mm {in.}
Action
Replace
Replace
Replace
Replace
Replace
Replace
–
Replace
Replace
Replace
Unit: Nm {kgfcm, lbfft}
Remarks
Refer to this
document.
