10–10
WRAP THIN WIRE AROUND TO
TIE UP TOGETHER
ENGINE MECHANICAL (J05E)

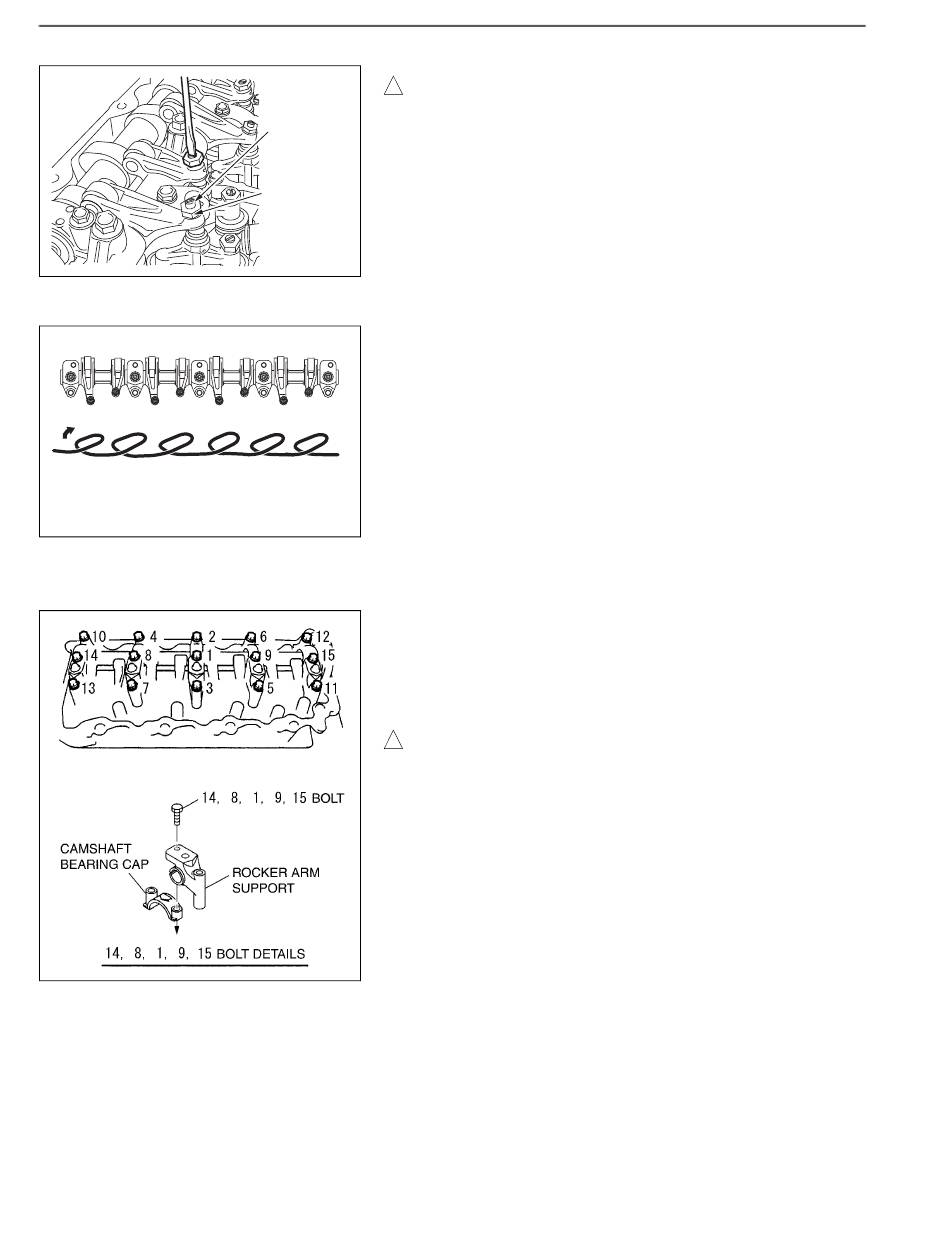

(3) Check that the adjust screw of the rocker arm is wound up.
! CAUTION
Failure to wind up the adjust screw may cause the shaft to bend
ADJUST when tightening the rocker support bolt.
SCREW
LOCK NUT
SHTS021270900018
NOTICE
To facilitate this work step, use a piece of flexible wire of approxi-
mately 0.8 mm {0.0315 in.} in diameter to bind rocker arms
together for intake and exhaust respectively.
SHTS021270900019
2. MOUNTING THE ROCKER ARM ASSEMBLY
(1) Apply engine oil to the cam ridge and set the rocker arm and
rocker arm shaft on the crosshead properly. Gradually tighten the
bolts in the order as shown in the figure.
Tightening Torque:
36 N·m {367 kgf·cm, 27 lbf·ft}
! CAUTION
After tightening, check that the rocker arms move smoothly.
SHTS021270900020
