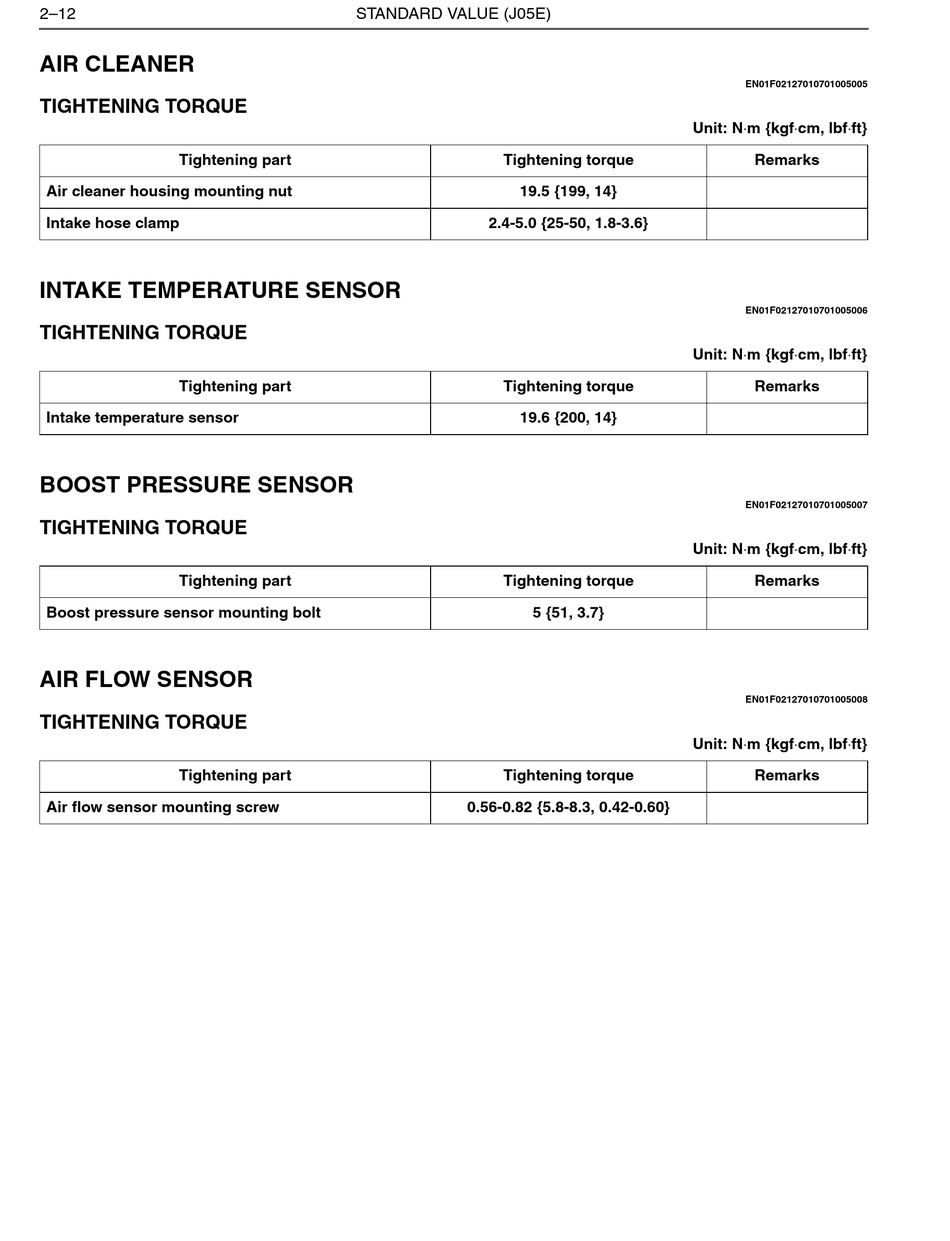

2–12

AIR CLEANER

TIGHTENING TORQUE
Tightening part
Air cleaner housing mounting nut
Intake hose clamp

INTAKE TEMPERATURE SENSOR

TIGHTENING TORQUE
Tightening part
Intake temperature sensor

BOOST PRESSURE SENSOR

TIGHTENING TORQUE
Tightening part
Boost pressure sensor mounting bolt

AIR FLOW SENSOR

TIGHTENING TORQUE
Tightening part
Air flow sensor mounting screw
STANDARD VALUE (J05E)
Tightening torque
19.5 {199, 14}
2.4-5.0 {25-50, 1.8-3.6}
Tightening torque
19.6 {200, 14}
Tightening torque
5 {51, 3.7}
Tightening torque
0.56-0.82 {5.8-8.3, 0.42-0.60}
EN01F02127010701005005
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701005006
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701005007
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701005008
Unit: Nm {kgfcm, lbfft}
Remarks
