ENGINE MECHANICAL (J05E)
MOUNTING THE FLYWHEEL ASSEMBLY
1. MOUNTING THE FLYWHEEL ASSEMBLY
(1) Check that there are no burrs or dirt on the joint surface between
the crankshaft and flywheel and the screw holes.

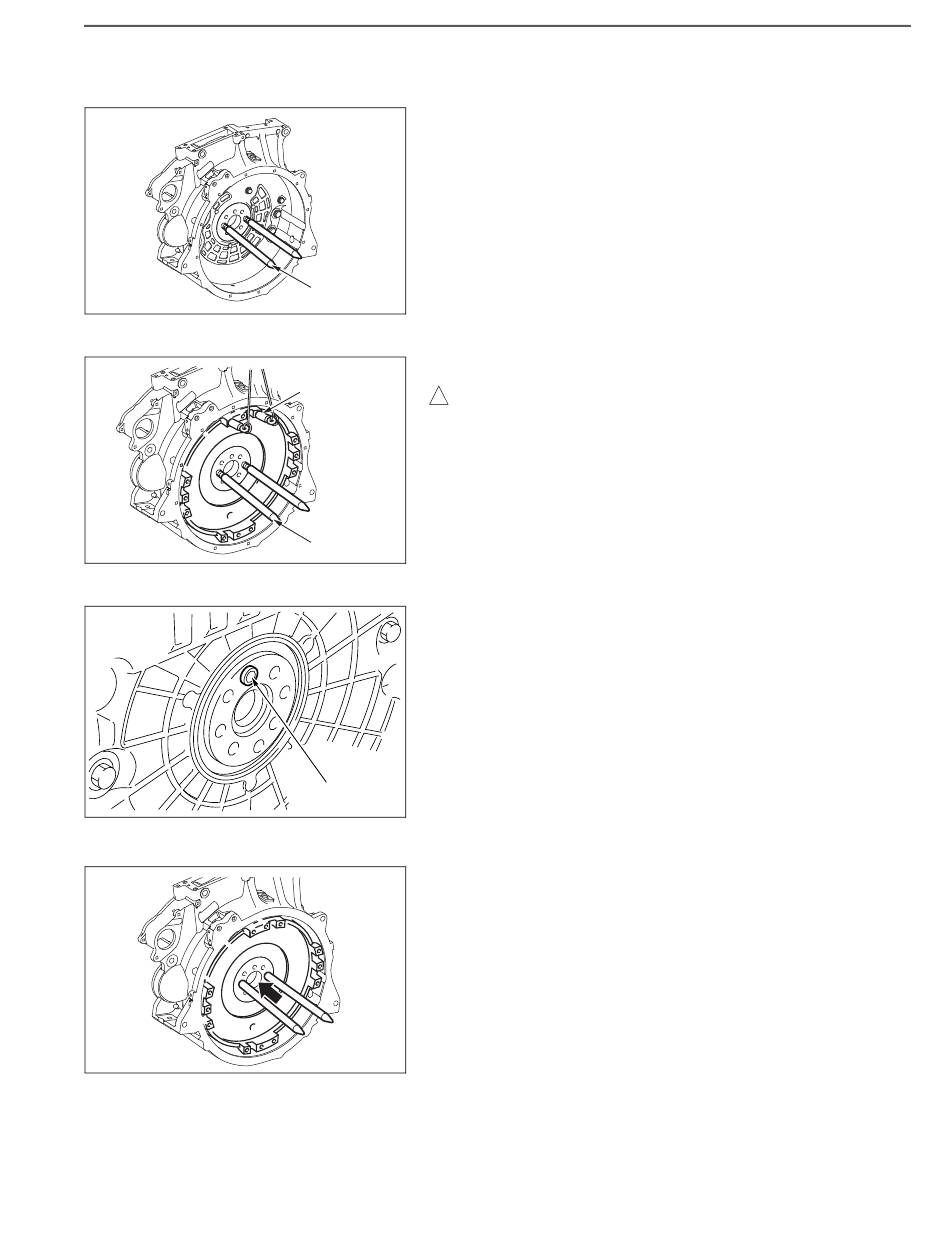

(2) Mount the 2 SST horizontally to the crankshaft.
SST:
SST
SHTS021270900125
(3) Fasten eye bolts to clutch mounting threads and use a hoist to lift
up and set the flywheel assembly to the mounting position.
EYE-BOLT
! CAUTION
• Handle it with care because it is a heavy load.
•
Before removing SST, temporarily tighten the bolt.
SST
SHTS021270900126
NOTICE
Set the dowel pin to the mounting position while checking the
dowel hole.
DOWEL PIN
SHTS021270900127
(4) Insert the flywheel assembly until it contacts with the crankshaft.
(5) Apply engine oil to the bolt seat surface and bolt threaded part of
the flywheel assembly mounting bolt.
(6) Fit the six bolts into bolt holes not occupied by the SST and man-
ually tighten them by a couple of turns.
(7) Gradually pre tighten six bolts.
(8) Unfasten the SST and pre tighten the remaining two bolts in the
similar fashion.
SHTS021270900128
