ENGINE MECHANICAL (J05E)

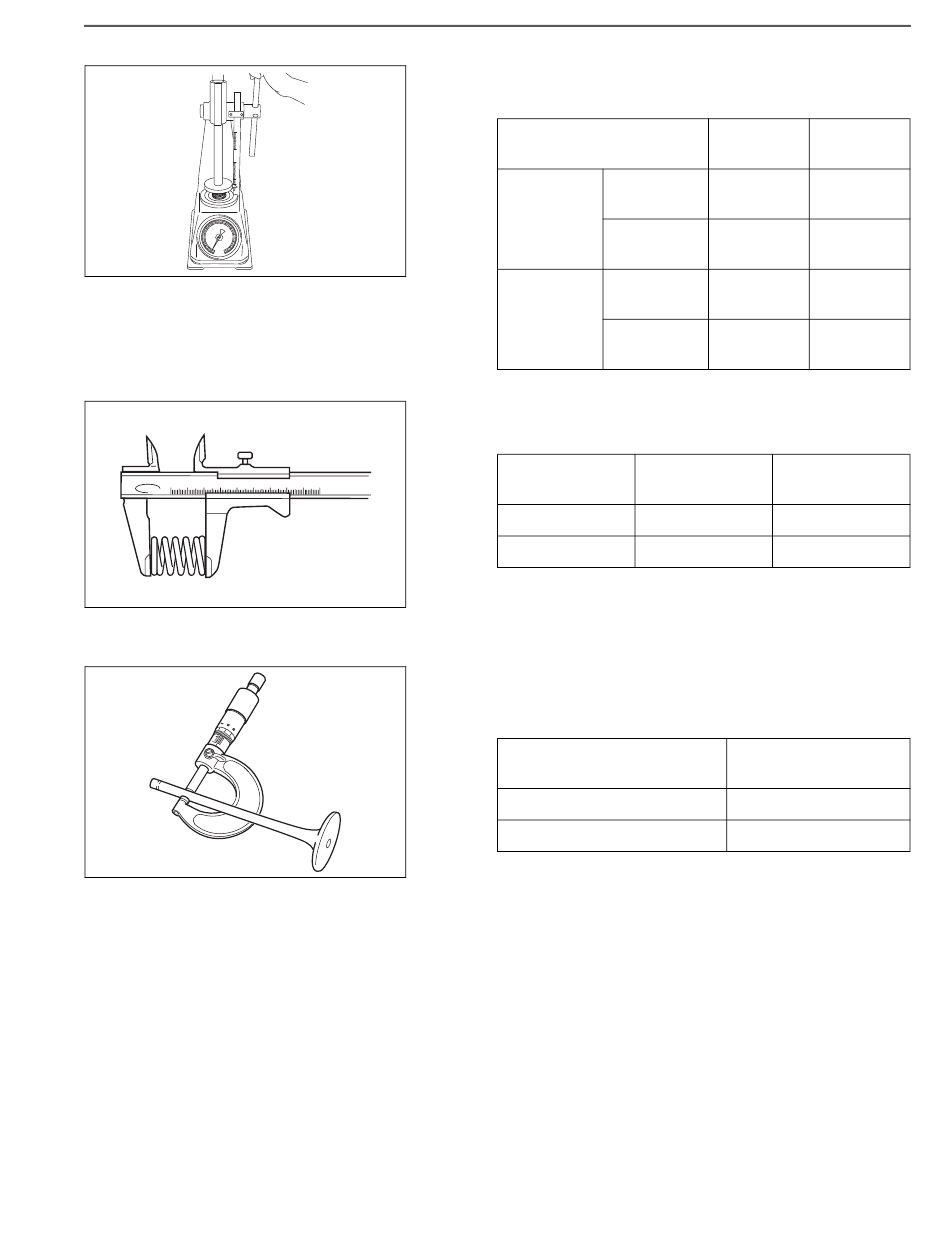

(2) Use the spring tester to measure the set load of the valve spring.
If a measured load exceeds the permissible limit, replace the
valve spring.
SHTS021270900086
(3) Use the vernier calipers to measure a free length of a valve
spring. If a measurement reading exceeds the permissible limit,
replace the valve spring.
Referential values in brackets []
SHTS021270900087
4. INSPECTING THE OIL CLEARANCE OF THE VALVE GUIDE
AND VALVE STEM
(1) Use the micrometer to measure the outside diameter of the valve
stem.
SHTS021270900088
Measured item
Set length
(mm {in.})
Inner spring
Set load
(N {kgf})
Set length
(mm {in.})
Outer spring
Set load
(N {kgf})
Standard value
Measured item
(mm {in.})
Inner spring [64.6 {2.543}]
Outer spring [75.7 {2.980}]
Measured item
Intake valve stem
Exhaust valve stem
10–41
Standard Permissi-
value ble limit
–
44.8 {1.764}
128.5 {13.1} 118.2 {12}
–
46.8 {1.843}
313.8 {32} 288.7 {29.4}
Permissible limit
(mm {in.})
61.6 {2.425}
72.7 {2.862}
Standard value
(mm {in.})
7 {0.276}
7 {0.276}
