11–16

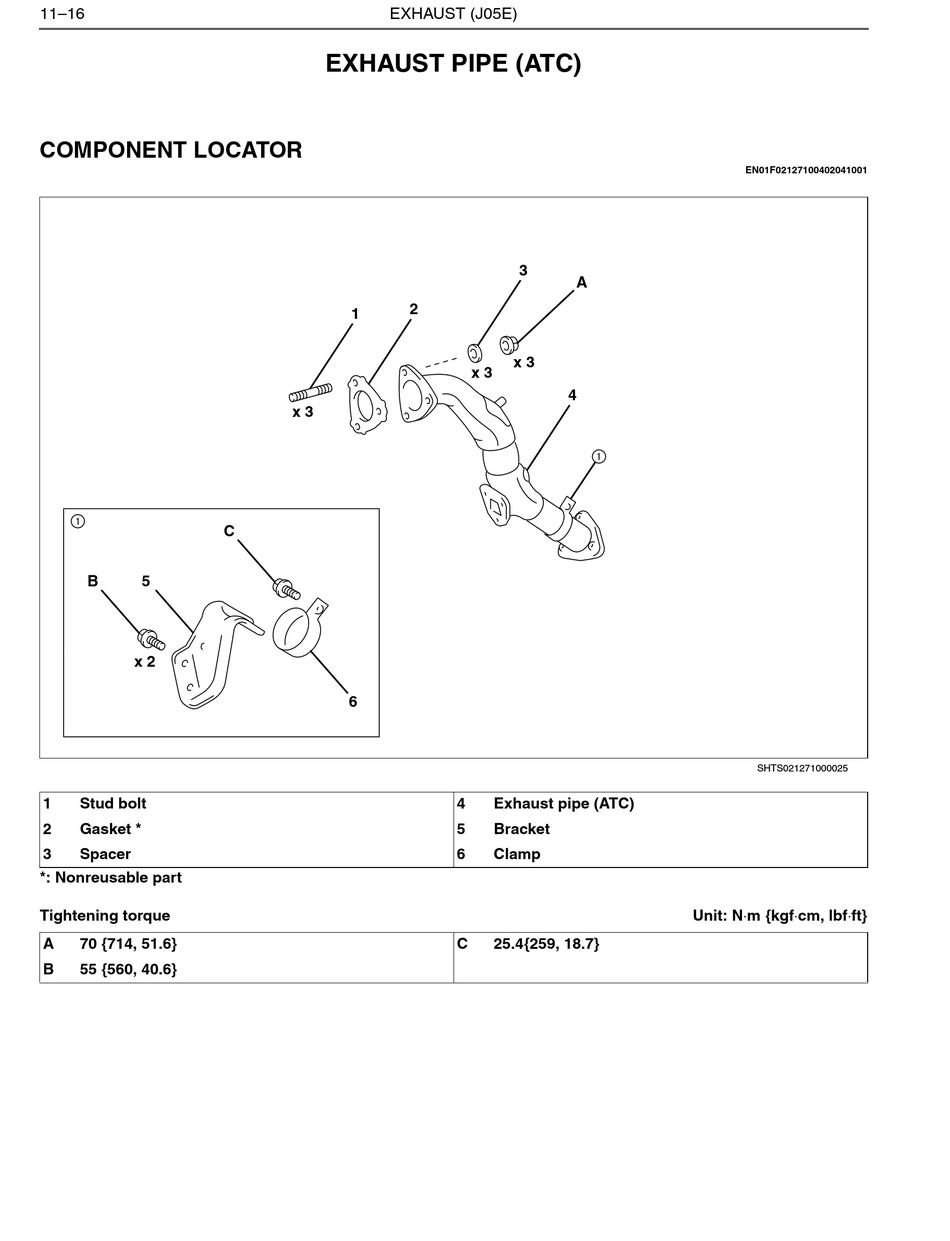

COMPONENT LOCATOR

B 5
x 2
1 Stud bolt
2 Gasket *
3 Spacer
*: Nonreusable part
Tightening torque
A 70 {714, 51.6}
B 55 {560, 40.6}
EXHAUST (J05E)

EXHAUST PIPE (ATC)

1
x 3
C
6
3
A
2
x 3
x 3
4
4 Exhaust pipe (ATC)
5 Bracket
6 Clamp
C 25.4{259, 18.7}
EN01F02127100402041001
SHTS021271000025
Unit: Nm {kgfcm, lbfft}
