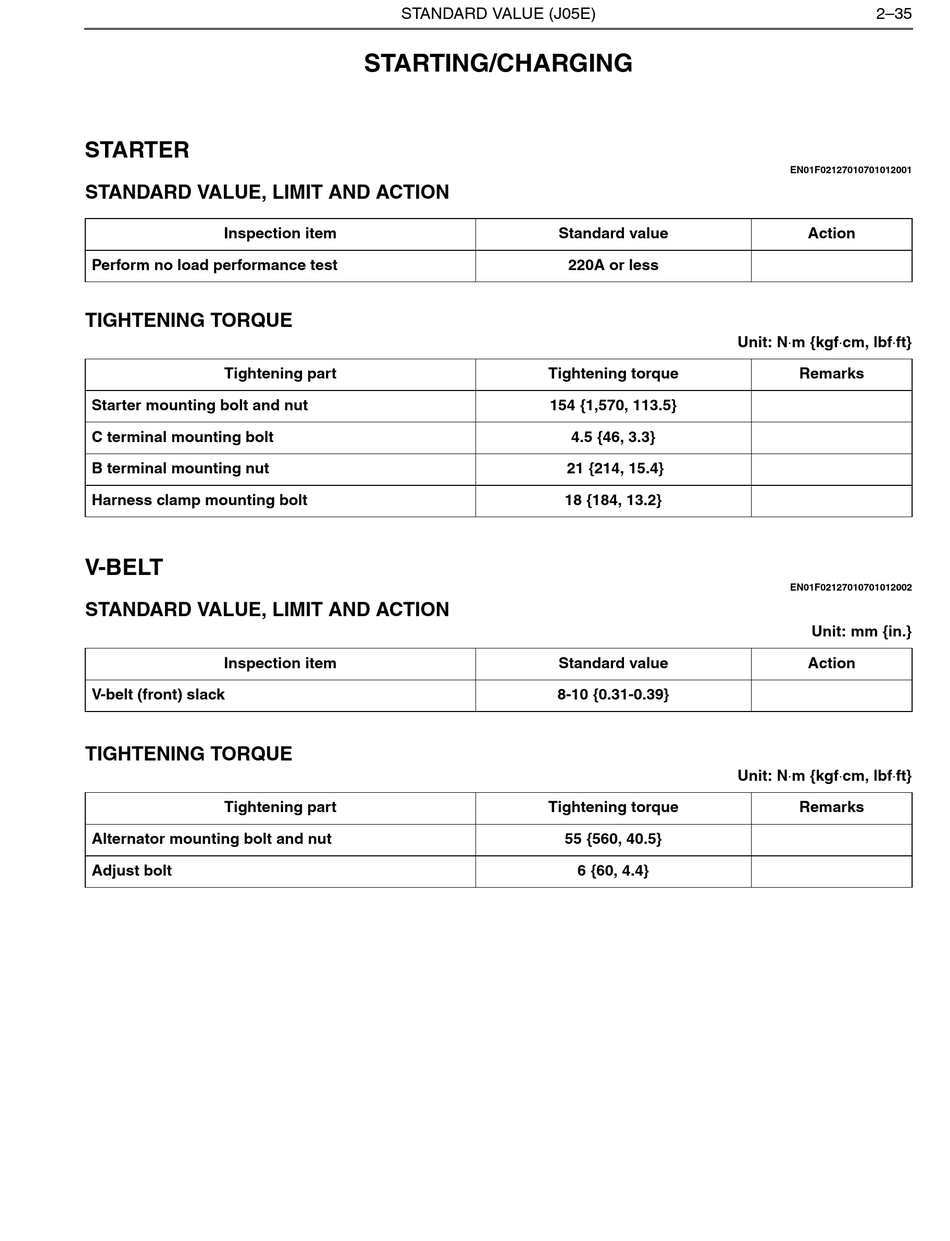

STARTER

STANDARD VALUE, LIMIT AND ACTION
Inspection item
Perform no load performance test
TIGHTENING TORQUE
Tightening part
Starter mounting bolt and nut
C terminal mounting bolt
B terminal mounting nut
Harness clamp mounting bolt

V-BELT

STANDARD VALUE, LIMIT AND ACTION
Inspection item
V-belt (front) slack
TIGHTENING TORQUE
Tightening part
Alternator mounting bolt and nut
Adjust bolt

STANDARD VALUE (J05E)

STARTING/CHARGING

Standard value
220A or less
Tightening torque
154 {1,570, 113.5}
4.5 {46, 3.3}
21 {214, 15.4}
18 {184, 13.2}
Standard value
8-10 {0.31-0.39}
Tightening torque
55 {560, 40.5}
6 {60, 4.4}
2–35
EN01F02127010701012001
Action
Unit: Nm {kgfcm, lbfft}
Remarks
EN01F02127010701012002
Unit: mm {in.}
Action
Unit: Nm {kgfcm, lbfft}
Remarks
