ATC UPSTREAM
TEMPERATURE
SENSOR
EXHAUST (J05E)
MOUNTING THE ATC UPSTREAM TEMPERATURE
SENSOR
1. MOUNTING THE ATC UPSTREAM TEMPERATURE
SENSOR

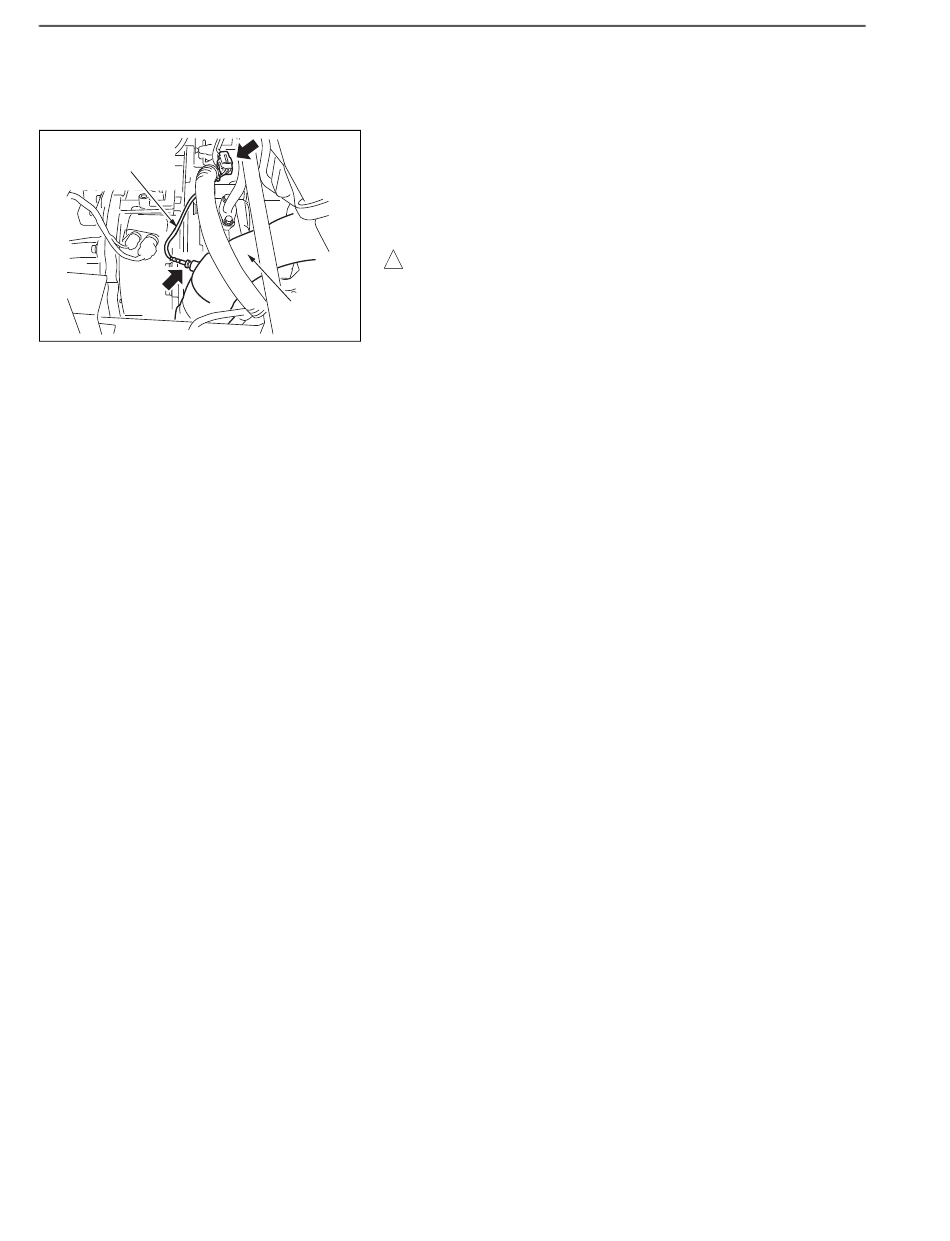

(1) Connect the ATC upstream temperature sensor to the exhaust
pipe (ATC) and fasten a harness clamp.
Tightening Torque:
25-35 N·m {255-357 kgf·cm, 18.4-25.8 lbf·ft}
! CAUTION
• If the ATC upstream temperature sensor is reused, wipe off
old anti-seizure lubricant and apply new anti-seizure lubri-
EXHAUST
cant (equivalent to NEVER-SEEZ Heavy Metal Free manufac-
PIPE(ATC)
tured by Bostic, Inc.) to threads.
SHTS021271000188
• A new ATC upstream temperature sensor has anti-seizure
lubricant applied.
• Use care to avoid twisting or kink of an ATC upstream tem-
perature sensor harness.
2. CONNECTING THE HARNESS
(1) Connect a connector to the ATC upstream temperature sensor.
