Hino S5-LJ05E04A Workshop Manual page 422

11–14
HARNESS
BRACKET
EXHAUST (J05E)

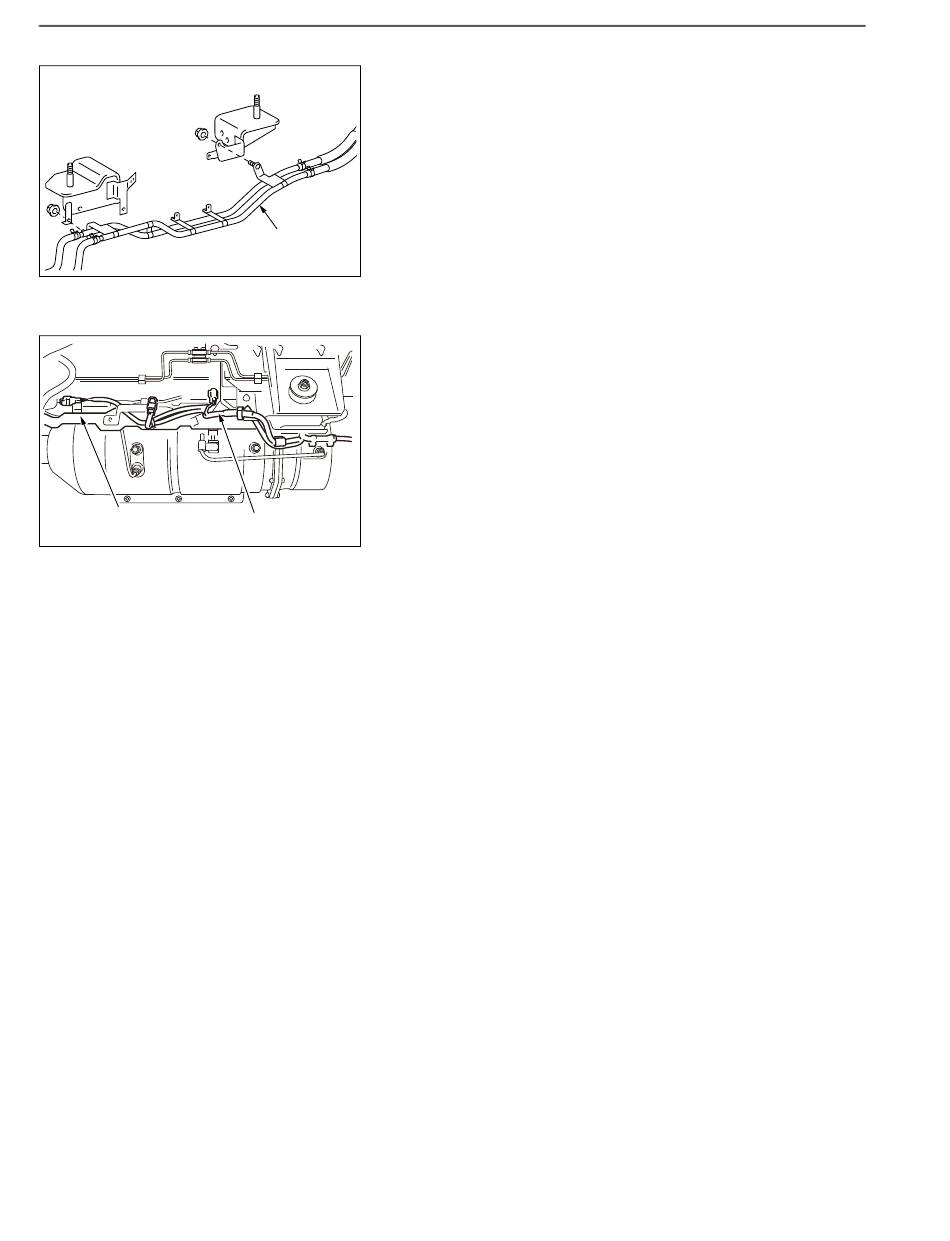

5. MOUNTING THE WATER PIPE
(1) Mount the water pipe to the muffler bracket with 2 nuts.
Tightening Torque:
31 N·m {316 kgf·cm, 22.9 lbf·ft}
WATER PIPE
SHTS021271000021
6. MOUNT THE HARNESS
(1) Mount the harness to the harness bracket.
HARNESS
SHTS021271000022
7. CONNECTING SENSORS
(1) Mount the DPR differential pressure sensor.
Reference: EXHAUST (J05E), DPR DIFFERENTIAL PRES-
SURE SENSOR, REPLACEMENT, MOUNTING THE DPR DIF-
FERENTIAL PRESSURE SENSOR (Page 11-97)
(2) Mount the SCR upstream NOx controller.
Reference: EXHAUST (J05E), SCR UPSTREAM NOx SEN-
SOR, REPLACEMENT, MOUNTING THE SCR UPSTREAM
NOx SENSOR (Page 11-100)
(3) Mount the SCR downstream NOx controller.
Reference: EXHAUST (J05E), SCR DOWNSTREAM NOx SEN-
SOR, REPLACEMENT, MOUNTING THE SCR DOWNSTREAM
NOx SENSOR (Page 11-103)
(4) Connect the DOC upstream temperature sensor.
Reference: EXHAUST (J05E), DOC UPSTREAM TEMPERA-
TURE
UPSTREAM TEMPERATURE SENSOR (Page 11-109)
(5) Connect the DPR upstream temperature sensor.
Reference: EXHAUST (J05E), DPR UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, MOUNTING THE DPR
UPSTREAM TEMPERATURE SENSOR (Page 11-111)
(6) Connect the DPR downstream temperature sensor.
Reference: EXHAUST (J05E), DPR DOWNSTREAM TEMPER-
ATURE SENSOR, REPLACEMENT, MOUNTING THE DPR
DOWNSTREAM TEMPERATURE SENSOR (Page 11-114)
(7) Connect the SCR upstream temperature sensor.
Reference: EXHAUST (J05E), SCR UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, MOUNTING THE SCR
UPSTREAM TEMPERATURE SENSOR (Page 11-117)
SENSOR, REPLACEMENT, MOUNTING DOC
