13–34
OIL LEVEL GAUGE
OIL LEVEL GAUGE
GUIDE
OIL LEVEL
GAUGE GUIDE
O-RING
LUBRICATION (J05E)

REPLACEMENT

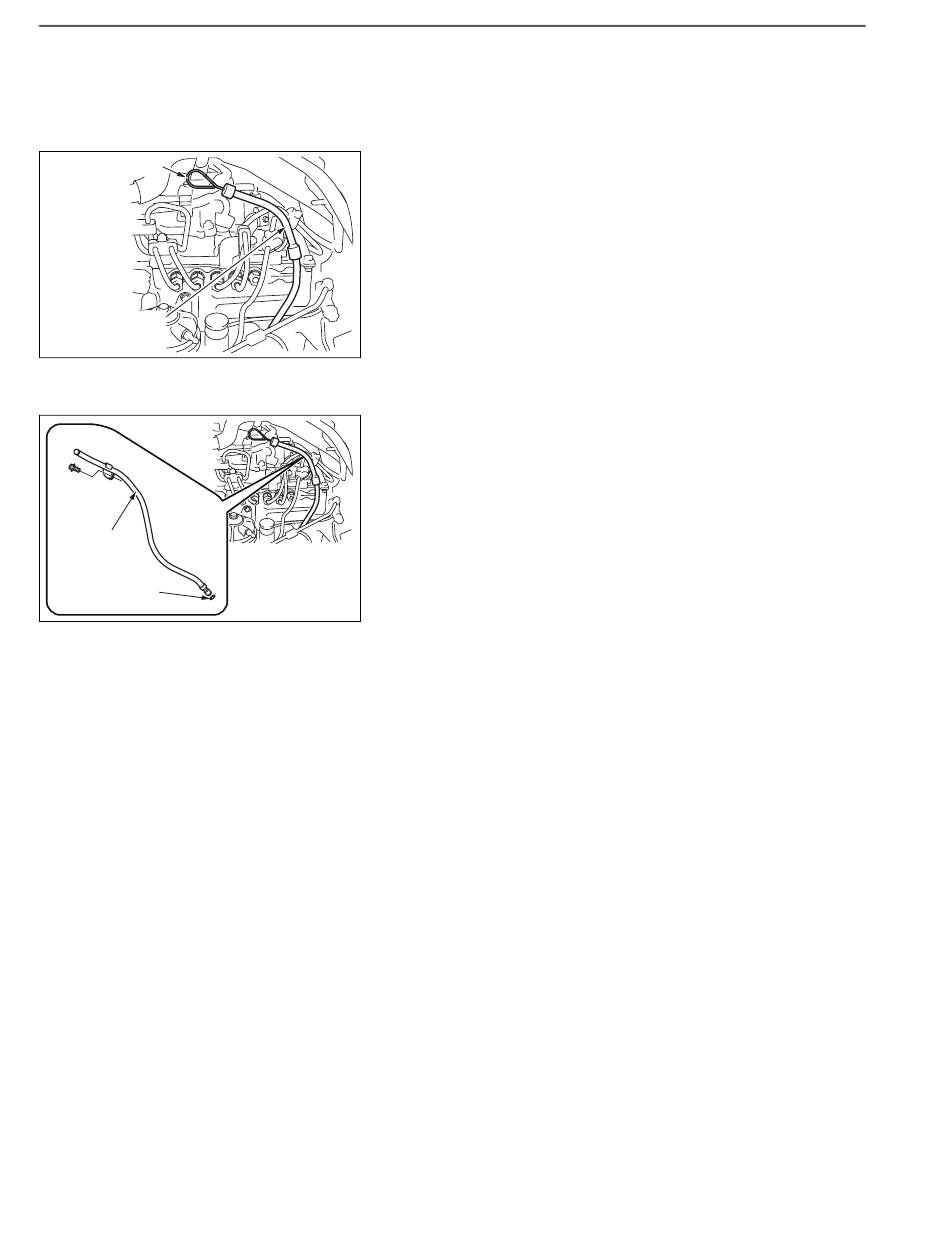

REMOVING THE OIL LEVEL GAUGE AND GUIDE
1. REMOVING THE OIL LEVEL GAUGE
(1) Pull out the oil level gauge from the oil level gauge guide.
NOTICE
Prepare the clean clothes to receive dripping engine oil when pull-
ing out the oil level gauge.
SHTS021271200067
2. REMOVING THE OIL LEVEL GAUGE GUIDE
(1) Remove the nut and then the clip.
(2) Remove the oil level gauge guide and O-ring from the cylinder
block.
NOTICE
Prepare the reservoir and clean clothes to collect dripping engine
oil when removing the oil level gauge guide.
SHTS021271200068
EN01F02114120402017002
