7–4
FIXED
BRACKET
BOLT 2
FUEL SYSTEM (J05E)

REPLACEMENT (30 GALLON)

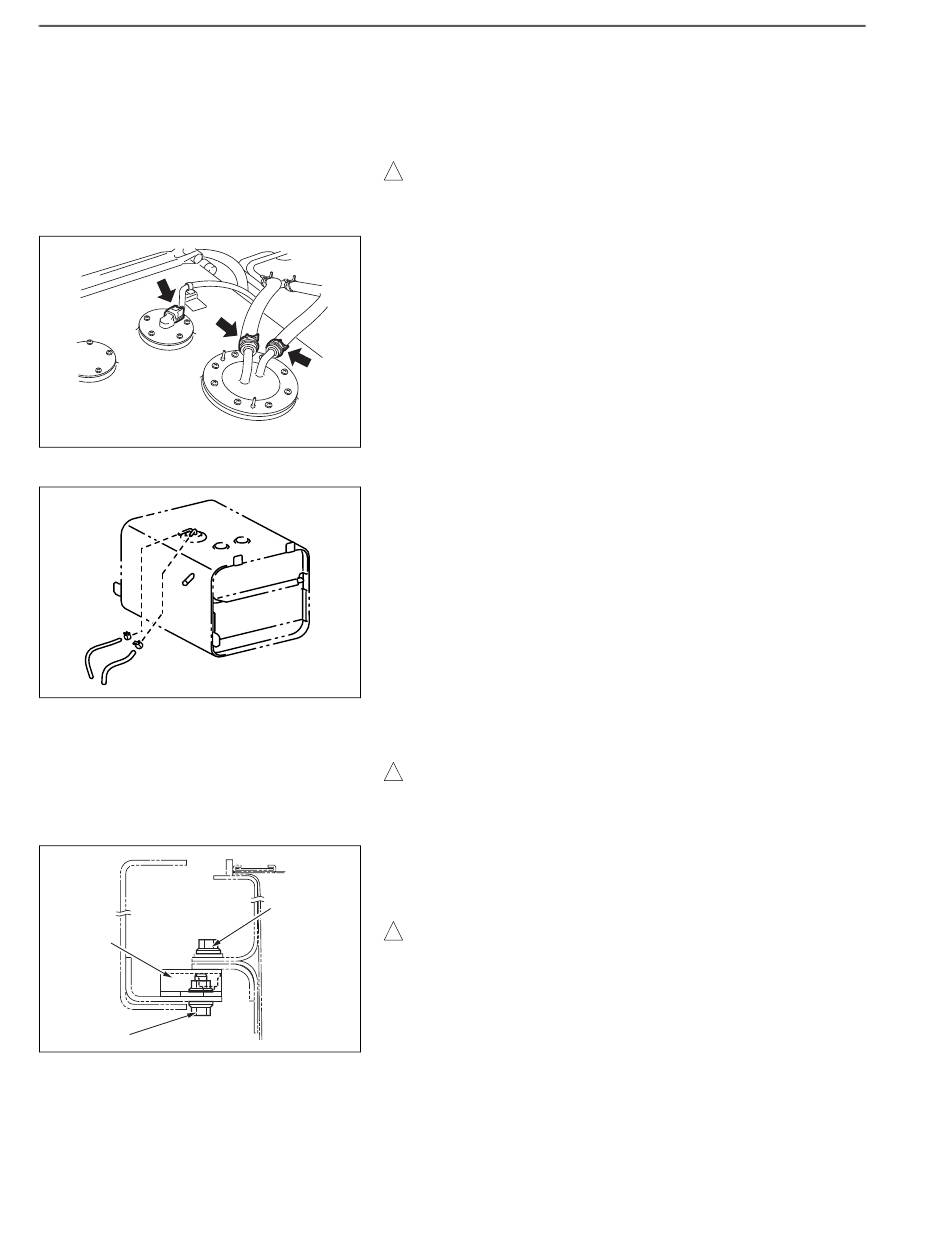

REMOVING THE FUEL TANK
1. CAUTIONS
! CAUTION
While working, be careful not to make dirt and water enter parts.
2. REMOVING THE FUEL TANK
(1) Disconnect the connector connected to the fuel sender gauge.
(2) Disconnect the 2 harness clamps.
(3) Loosen the clamp of the feed hose and that of the return hose.
SHTS021270600003
(4) Put alignment marks on the feed hose and the return hose, and
disconnect them.
NOTICE
After the fuel hoses are disconnected, stop up both ends to pre-
vent fuel leakage and the ingress of dirt.
SHTS021270600004
(5) Remove the drain plug and the gasket to drain the fuel.
! CAUTION
Dispose of the drained fuel in accordance with the regulation of
disposal specified in each region.
(6) Unfasten 2 clamps, then put alignment marks on the fuel hose
and breather hose, and disconnect them from the fuel tank.
(7) Remove the bolt (1) and lift the fuel tank to a position where the
fixed bracket can be removed, by using a jack or the like.
BOLT 1
! CAUTION
When lifting, be careful not to let the fuel tank touch the upper
deck.
(8) Remove the bolt (2) and detach the fixed bracket from the frame
gusset.
(9) Remove the fuel tank from the lower side of the frame.
SHTS021270600005
