ENGINE MECHANICAL (J05E)

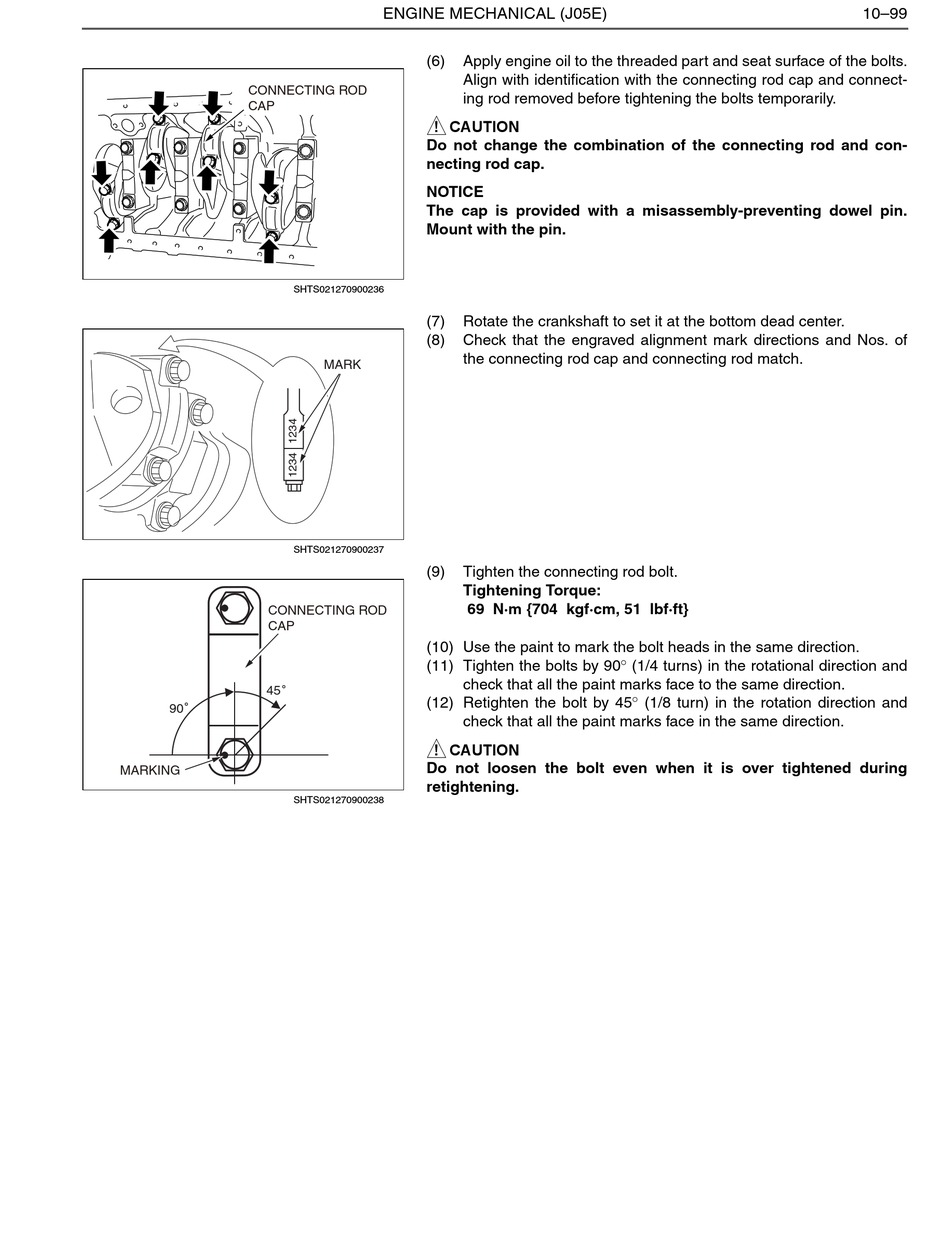

(6) Apply engine oil to the threaded part and seat surface of the bolts.
Align with identification with the connecting rod cap and connect-
ing rod removed before tightening the bolts temporarily.
! CAUTION
Do not change the combination of the connecting rod and con-
necting rod cap.
NOTICE
The cap is provided with a misassembly-preventing dowel pin.
Mount with the pin.
(7) Rotate the crankshaft to set it at the bottom dead center.
(8) Check that the engraved alignment mark directions and Nos. of
the connecting rod cap and connecting rod match.
MARK
(9) Tighten the connecting rod bolt.
Tightening Torque:
69 N·m {704 kgf·cm, 51 lbf·ft}
(10) Use the paint to mark the bolt heads in the same direction.
(11) Tighten the bolts by 90 (1/4 turns) in the rotational direction and
check that all the paint marks face to the same direction.
(12) Retighten the bolt by 45 (1/8 turn) in the rotation direction and
check that all the paint marks face in the same direction.
! CAUTION
Do not loosen the bolt even when it is over tightened during
retightening.
