FUEL SYSTEM (J05E)

REPLACEMENT

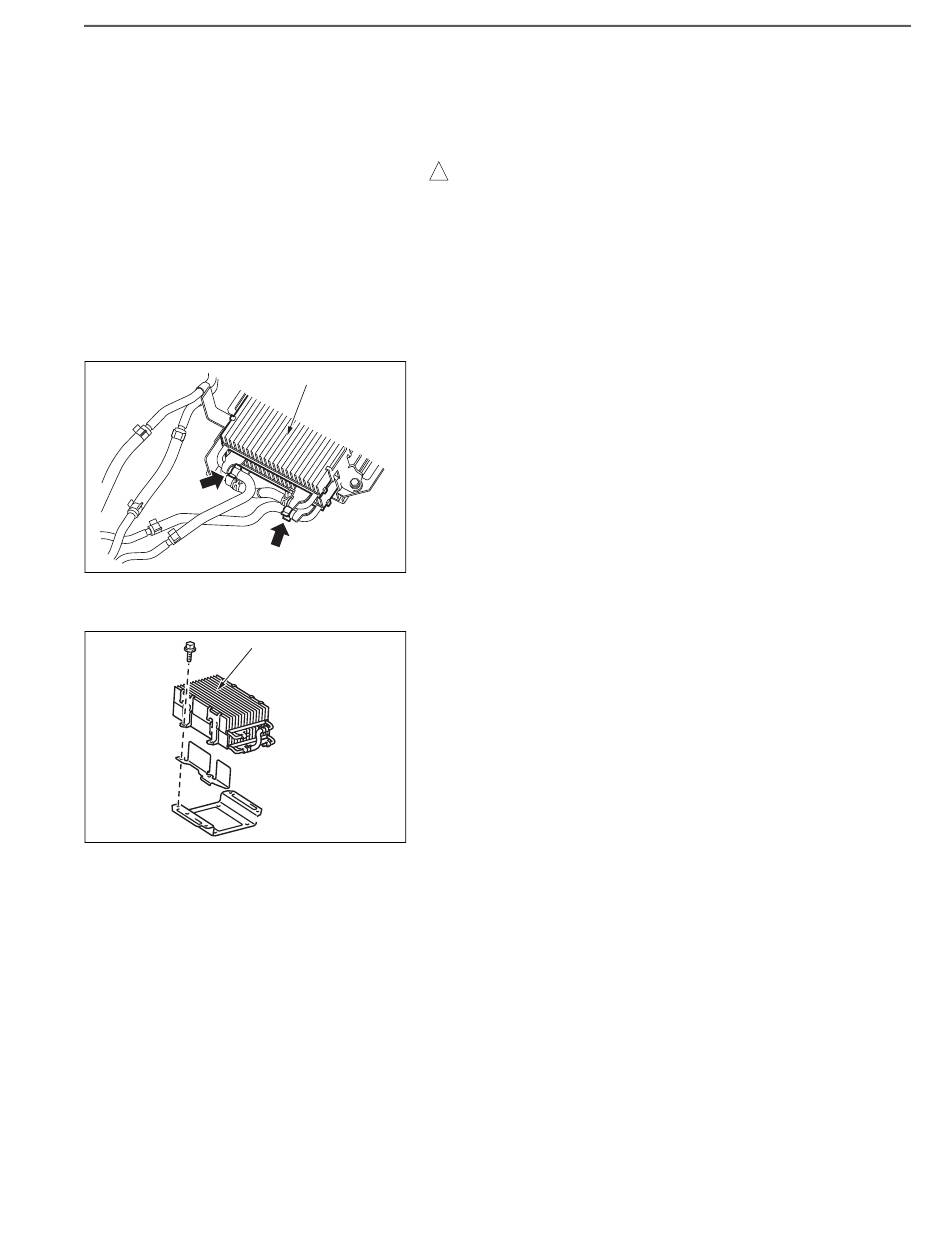

REMOVING FUEL COOLER
1.
•
•
•
2.
(1)
FUEL COOLER
NOTICE
•
•
SHTS021270600139
3.
(1)
FUEL COOLER
SHTS021270600140
CAUTIONS
! CAUTION
While working, be careful not to make dirt and water enter
parts.
Before mounting parts, make sure that there is no dirt on the
connection between them.
Air enters the fuel pipe in the process of mounting the pre-
fuel filter case. After mounting is completed, thoroughly
purge air from the fuel pipe.
REMOVING THE FUEL HOSES
Unfasten 2 clamps to disconnect 2 fuel hoses from the fuel cooler.
Prepare the reservoir and a waste cloth because fuel spills
when disconnecting the fuel hoses.
For easy disconnection, slightly twist the fuel hose when
pulling it out.
REMOVING FUEL COOLER
Unfasten 4 bolts to remove the fuel cooler from the bracket.
7–63
