11–18
EXHAUST PIPE
(ATC)
EXHAUST PIPE
(ATC)
CLAMP
EXHAUST (J05E)
MOUNTING THE EXHAUST PIPE (ATC)
1.
NOTICE
The ATC will have to be replaced together with the exhaust pipe
(ATC).
2.
(1)
EXHAUST BRAKE
(2)
(3)
(4)
(5)
BRACKET
! CAUTION
When tightening the clamp, do not allow clearance with the pipe.
SHTS021271000027
3.
4.
5.
REFERENCE

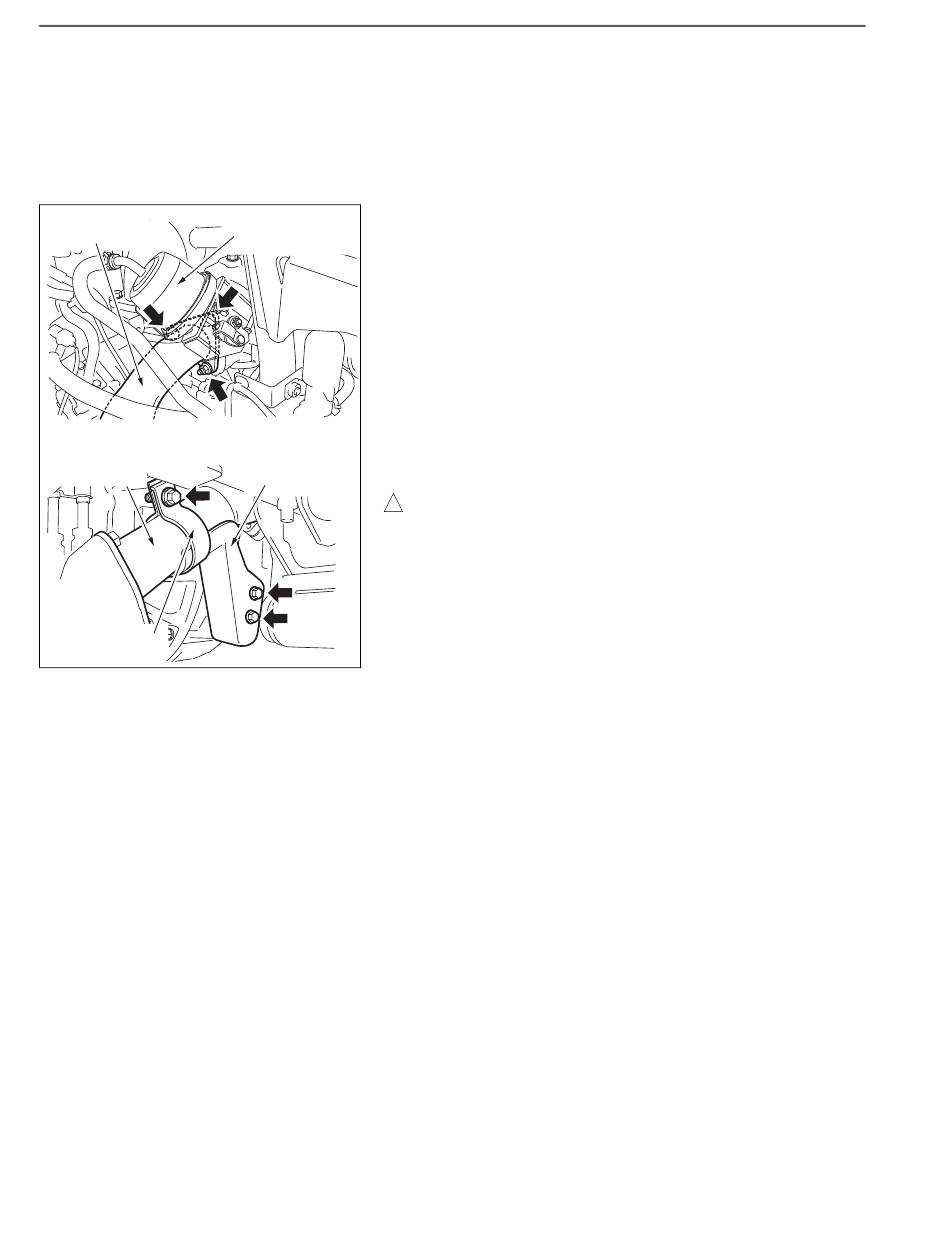

MOUNTING THE EXHAUST PIPE (ATC)
Replace with a new gasket and temporarily tighten the exhaust
pipe (ATC) to the exhaust brake with 3 nuts.
Temporarily tighten the bracket and clamp with the bolts (3 pcs.).
Tighten the bracket fully.
Tightening Torque:
55 N·m {560 kgf·cm, 40.6 lbf·ft}
Tighten the exhaust pipe (ATC) fully.
Tightening Torque:
70 N·m {714 kgf·cm, 51.6 lbf·ft}
Tighten the clamp fully.
Tightening Torque:
25.4 N·m {259 kgf·cm, 18.7 lbf·ft}
MOUNTING THE ATC UPSTREAM TEMPERATURE SENSOR
Reference: EXHAUST (J05E), ATC UPSTREAM TEMPERA-
TURE SENSOR, REPLACEMENT, MOUNTING THE ATC
UPSTREAM TEMPERATURE SENSOR (Page 11-106)
MOUNTING THE FUEL ADDITION VALVE
Reference: EXHAUST (J05E), FUEL ADDITION VALVE,
REPLACEMENT, MOUNTING THE FUEL ADDITION VALVE
(Page 11-55)
CONNECTING THE FRONT EXHAUST PIPE
Reference: EXHAUST (J05E), EXHAUST PIPE, REPLACE-
MENT, MOUNTING THE EXHAUST SYSTEM COMPONENT
PARTS (Page 11-12)
