ENGINE CONTROL (J05E)

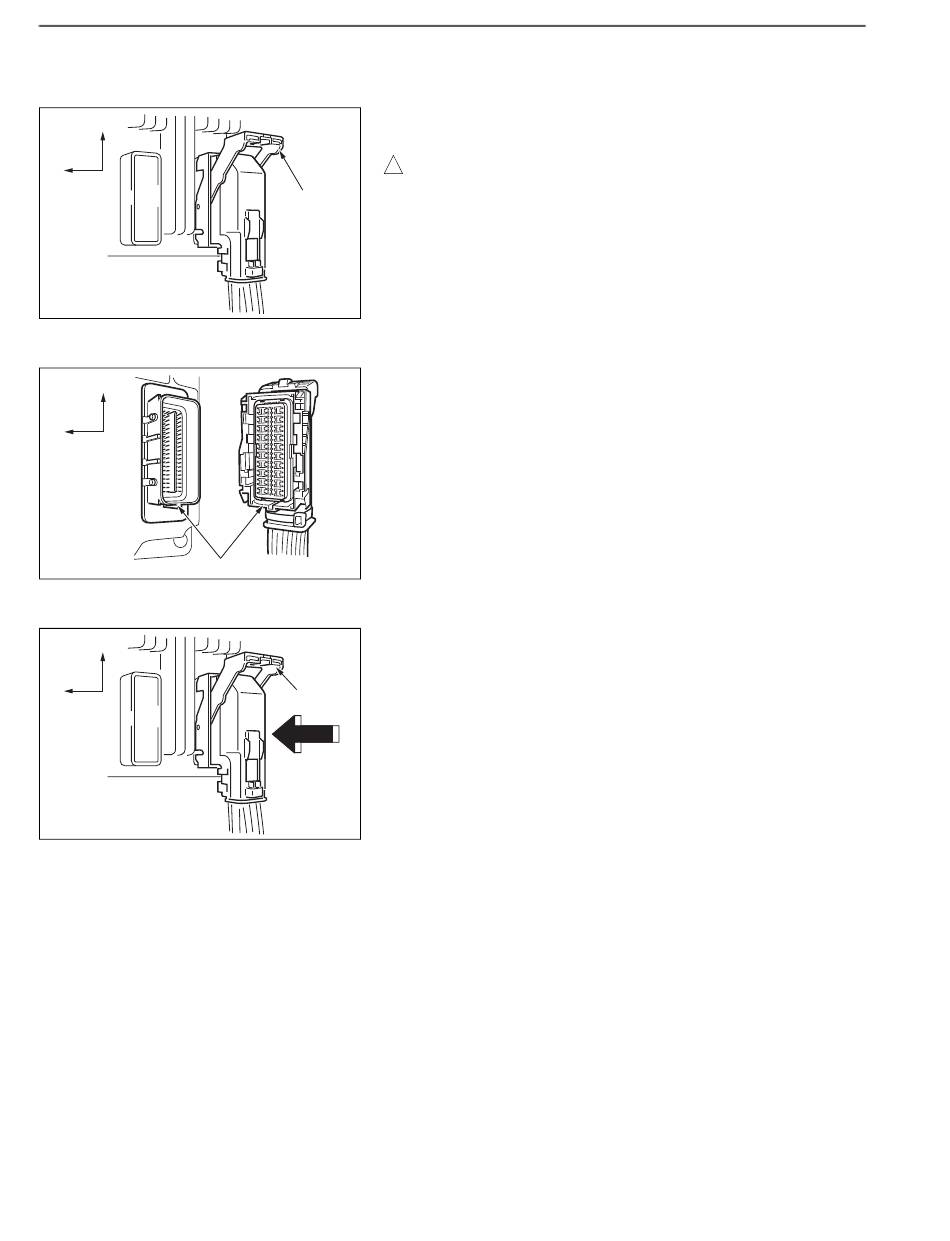

ATTACHING THE ENGINE ECU CONNECTOR
1. ATTACHING THE ENGINE ECU CONNECTOR
(1) Check that the harness side connector lever is fully open and
place it straight on the engine ECU side connector.
! CAUTION
At this time, check that the lever is fully open.
LEVER
SHTS021270500014
NOTICE
Check that it is inserted along the wrong fitting prevention key-
way.
SHTS021270500015
(2) Press the upper part of the harness side connector and insert the
connector uniformly.
LEVER
SHTS021270500016
